ATPH 1865-200

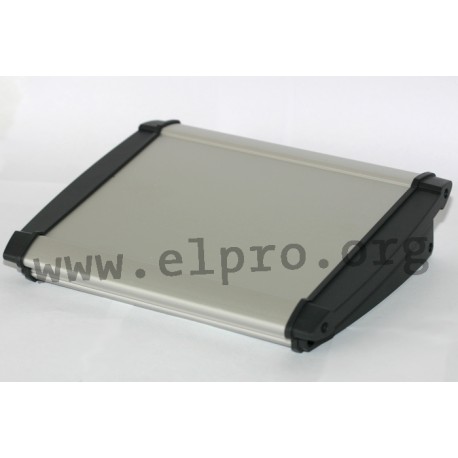

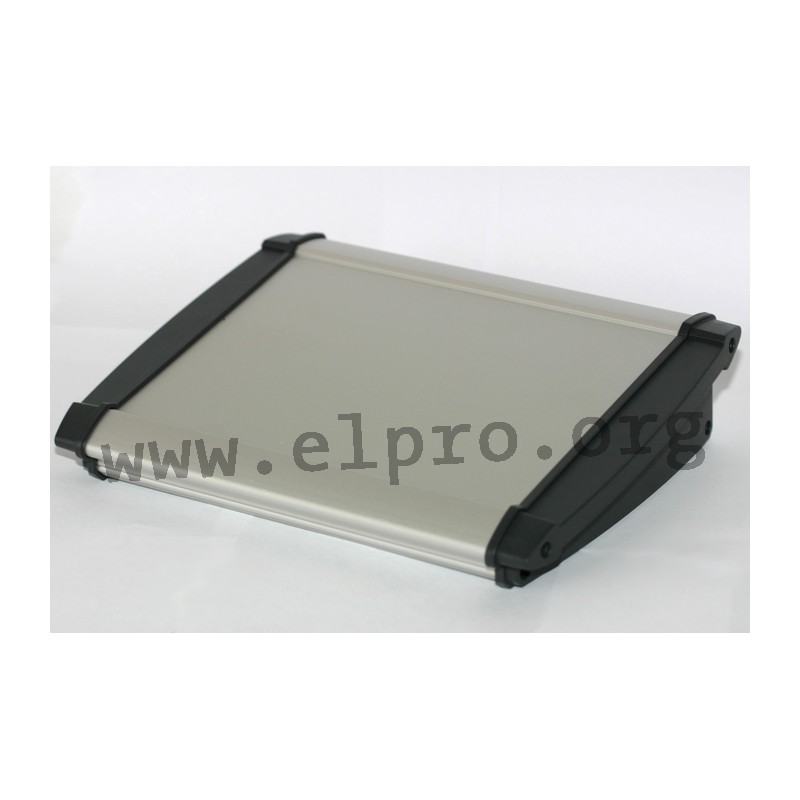

aluminium console-type enclosure

* series: ATPH by Bopla
* colour: aluminium, anodized
* lid colour: graphite grey (RAL 7024)
* console enclosure with divided profile allows easy assembly
* profile is closed with two designer caps
* profiles come with grooves and screw channels for circuit boards and mounting plates
* upper surface is recessed for membrane keypads

ATPH 1865-200

41787 ATPH 1865-200 92865200.MT6 92865200.MT6 aluminium console-type enclosure. * series: ATPH by Bopla* colour: aluminium, anodized* lid colour: graphite grey (RAL 7024)* console enclosure with divided profile allows easy assembly* profile is closed with two designer caps * profiles come with grooves and screw channels for circuit boards and mounting plates* upper surface is recessed for membrane keypads

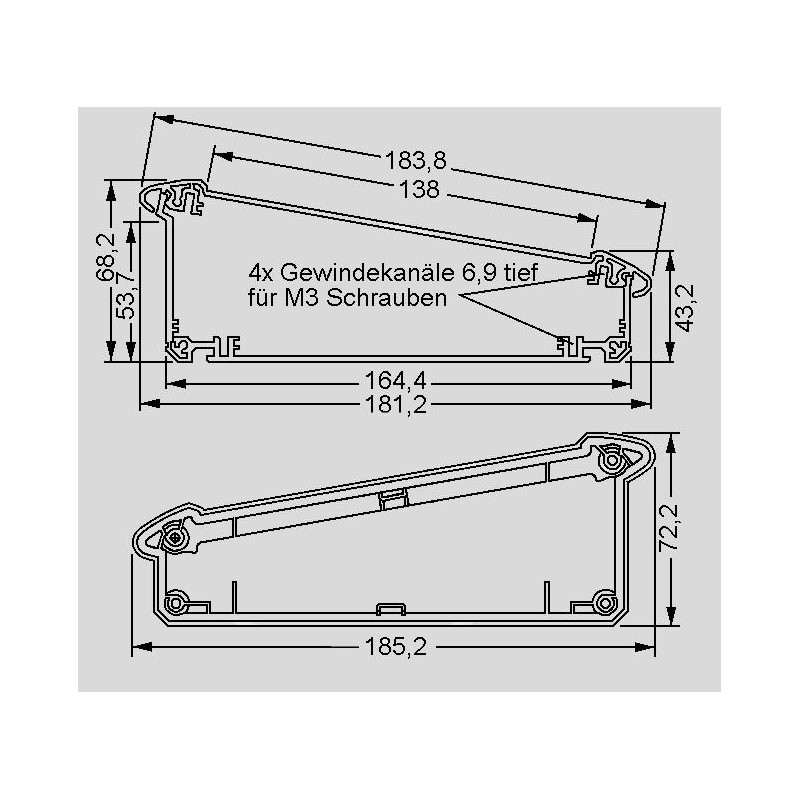

Specifications

manufacturer
Manufacturer's name 92865200.MT6
Width [mm] 181,2
T [mm] 68,2
Length [mm] 244
Data Sheet

Unit price

41,39 €

Stock: 43
Further delivery:
CW 01/2025
