BA 141309

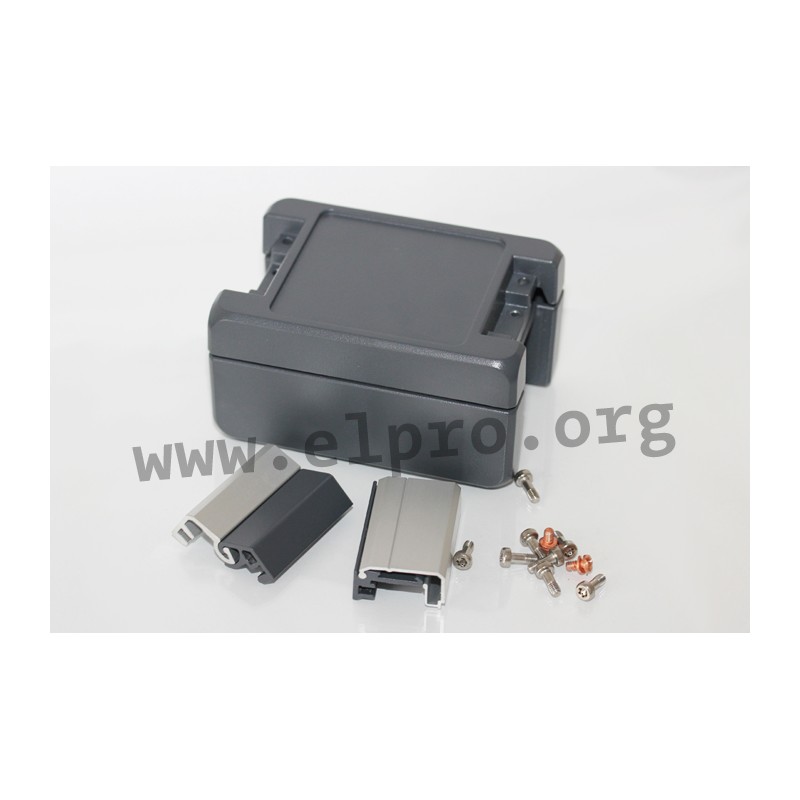

aluminium wall enclosures by BOPLA

• rugged aluminium wall enclosure consisting of enclosure and captive lid with membrane keypad area

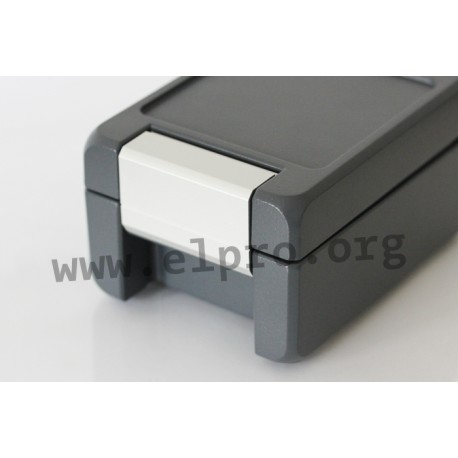

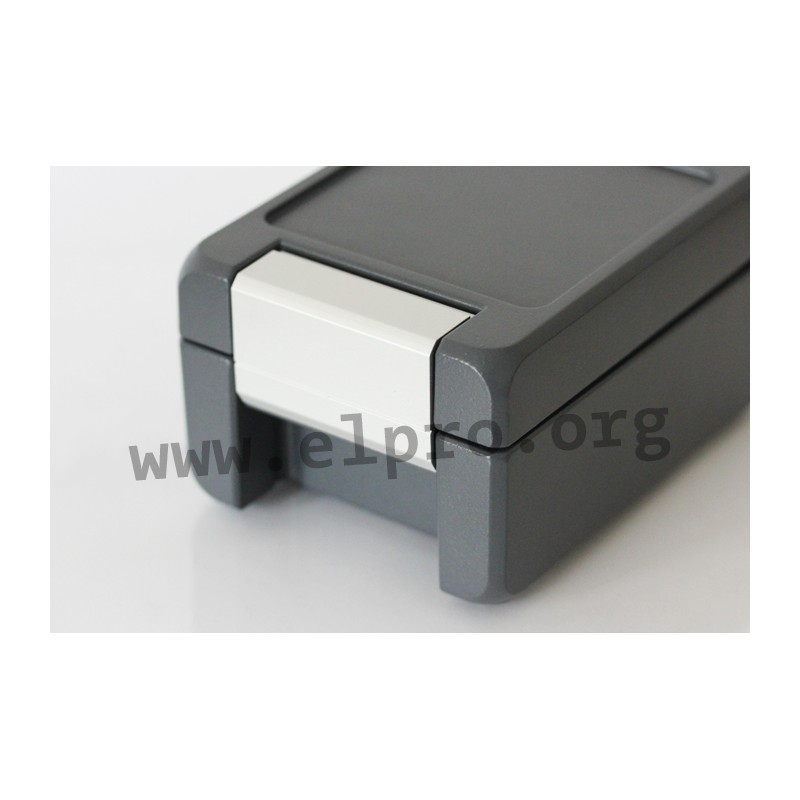

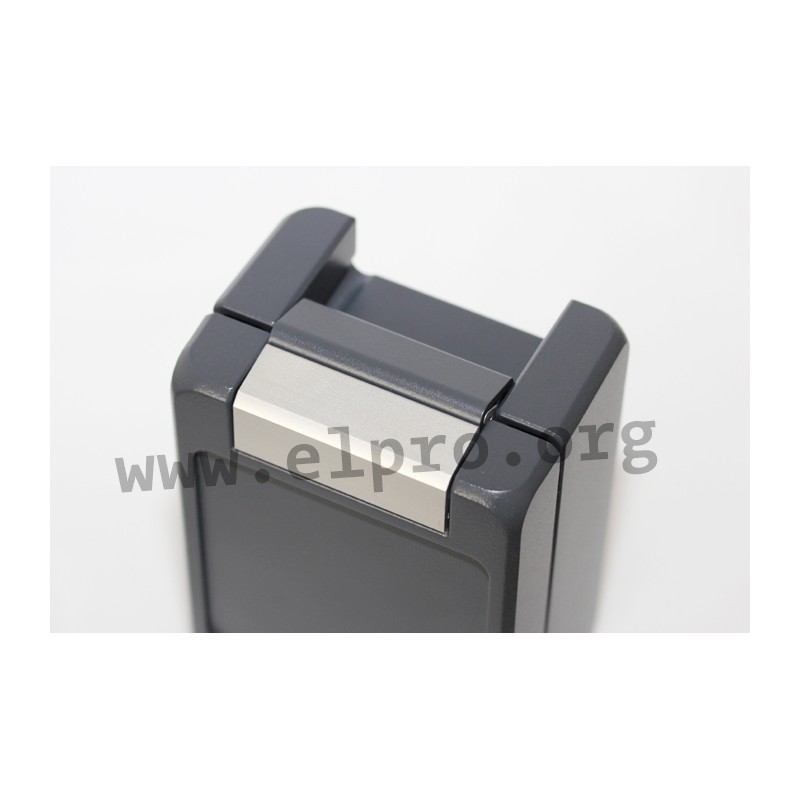

• hinge integrated in the enclosure design, no visible enclosure screws
• enclosure colour graphite grey (similar RAL 7024), hinges natural-coloured anodized
• all enclosure components made of metal
• enclosure incl. hinge, mounting material, 2x screws
• high protection class IP69
• prepared for cost-efficient integration of pressure compensation elements
• material: aluminium GD AL SI 12
• seal: PU foamed
• protection class: IP66

Suitable wall-brackets and pressure compensation membrane must be ordered separately.

BA 141309

105753 BA 141309 00123234 00123234 aluminium wall enclosures by BOPLA • rugged aluminium wall enclosure consisting of enclosure and captive lid with membrane keypad area• hinge integrated in the enclosure design, no visible enclosure screws• enclosure colour graphite grey (similar RAL 7024), hinges natural-coloured anodized• all enclosure components made of metal• enclosure incl. hinge, mounting material, 2x screws• high protection class IP69• prepared for cost-efficient integration of pressure compensation elements• material: aluminium GD AL SI 12• seal: PU foamed• protection class: IP66 Suitable wall-brackets and pressure compensation membrane must be ordered separately.

Specifications

manufacturer
Manufacturer's name 00123234
Case colour graphit grey
Height [mm] 90
Width [mm] 128
Length [mm] 159
Data Sheet

Unit price

59,29 €

Stock: 4
Further delivery:
CW 32/2024
