B 221309 ABS 7035

Bopla ABS wall and desktop enclosures series BOCUBE

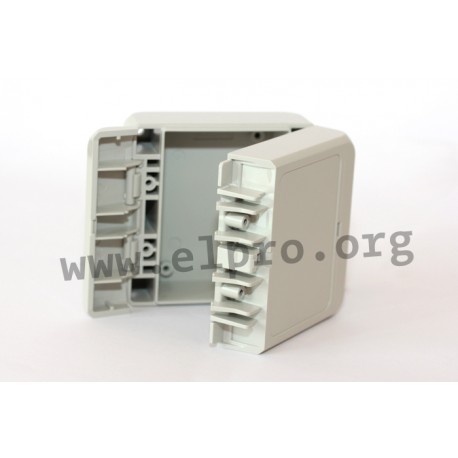

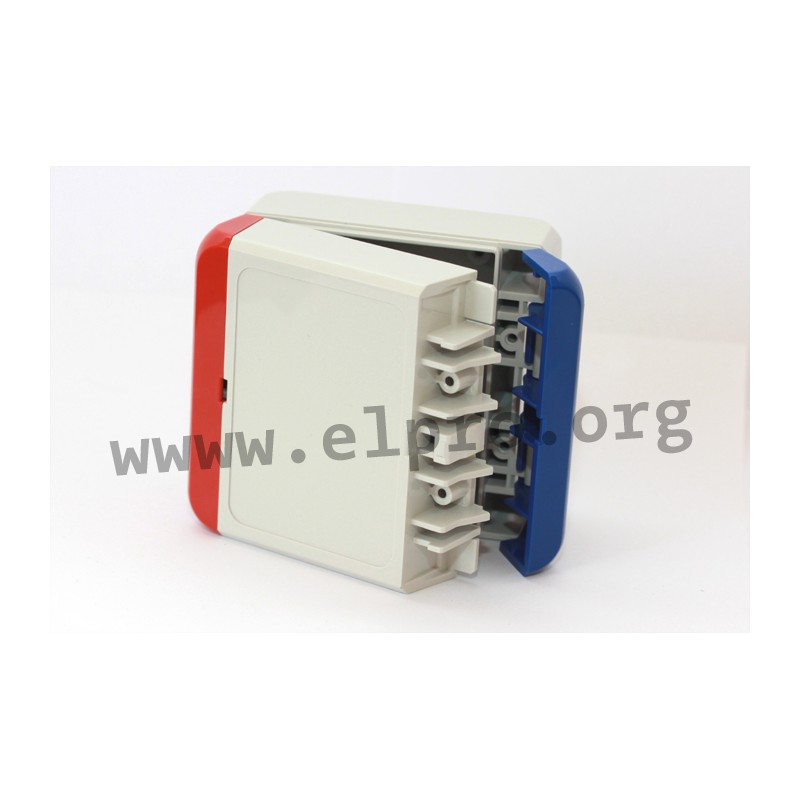

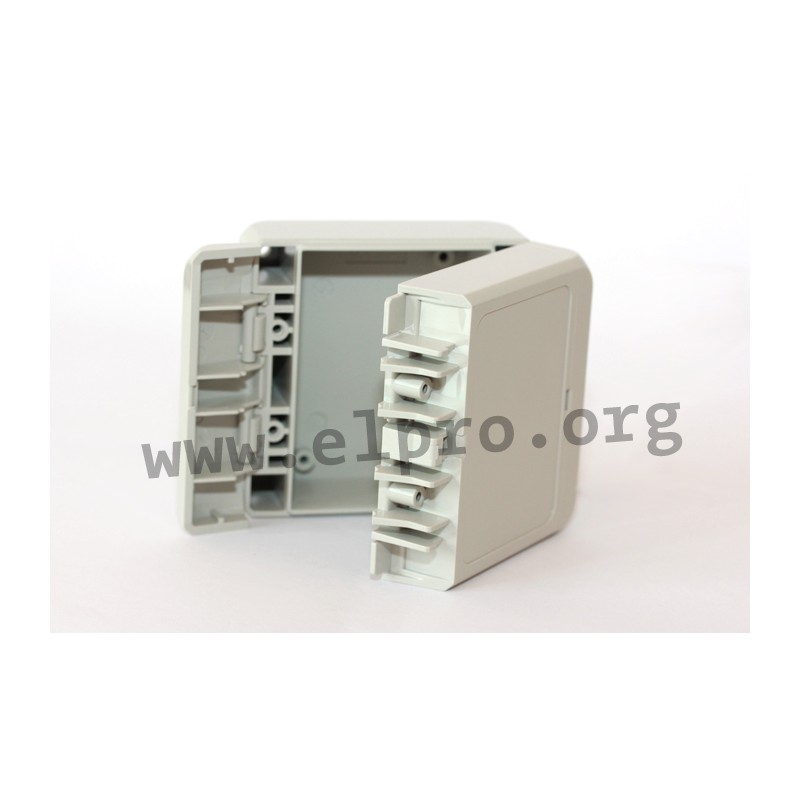

ABS enclosure, in light-grey (similar to RAL 7035), consisting of lower part, lid and light grey hinged quick-release catch (optional colored hinged quick-release catches in red, blue and yellow). Mounting space for rectangular front panels and grooved PCBs, instead of hinged quick-release catch, the enclosures can be srcewed. We offer various types of this Bopla series, as well as components.

  • protection class IP67, DIN 60529
  • hinged quick-release catch technology: open with a screwdriver, close by hand
  • B SC_: hinged quick-release catches
  • B WL_: wall brackets:
  • BM_: hard paper panels
  • B VS_: sealing plugs
B _ ABS 7035

B 221309 ABS 7035

39702 B 221309 ABS 7035 96035235 96035235 Bopla ABS wall and desktop enclosures series BOCUBE. ABS enclosure, in light-grey (similar to RAL 7035), consisting of lower part, lid and light grey hinged quick-release catch (optional colored hinged quick-release catches in red, blue and yellow). Mounting space for rectangular front panels and grooved PCBs, instead of hinged quick-release catch, the enclosures can be srcewed. We offer various types of this Bopla series, as well as components. protection class IP67, DIN 60529 hinged quick-release catch technology: open with a screwdriver, close by hand B SC_: hinged quick-release catches B WL_: wall brackets: BM_: hard paper panels B VS_: sealing plugs

Specifications

manufacturer
Manufacturer's name 96035235
Colour light grey

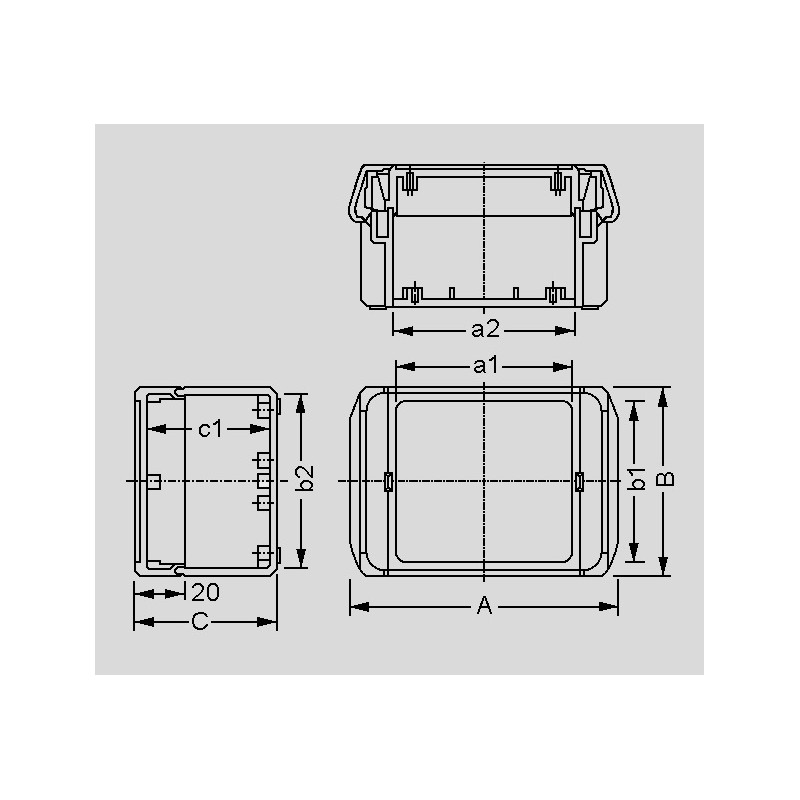

A2 [mm] 194,1
A [mm] 231
Width [mm] 125
C [mm] 90
B1 [mm] 113
B2 [mm] 117,9
C1 [mm] 82
A1 [mm] 192
Data Sheet

Unit price

42,09 €

Stock: 0
Further delivery:
CW 52/2025
