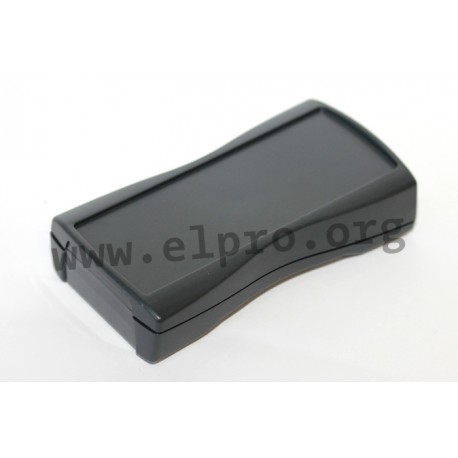

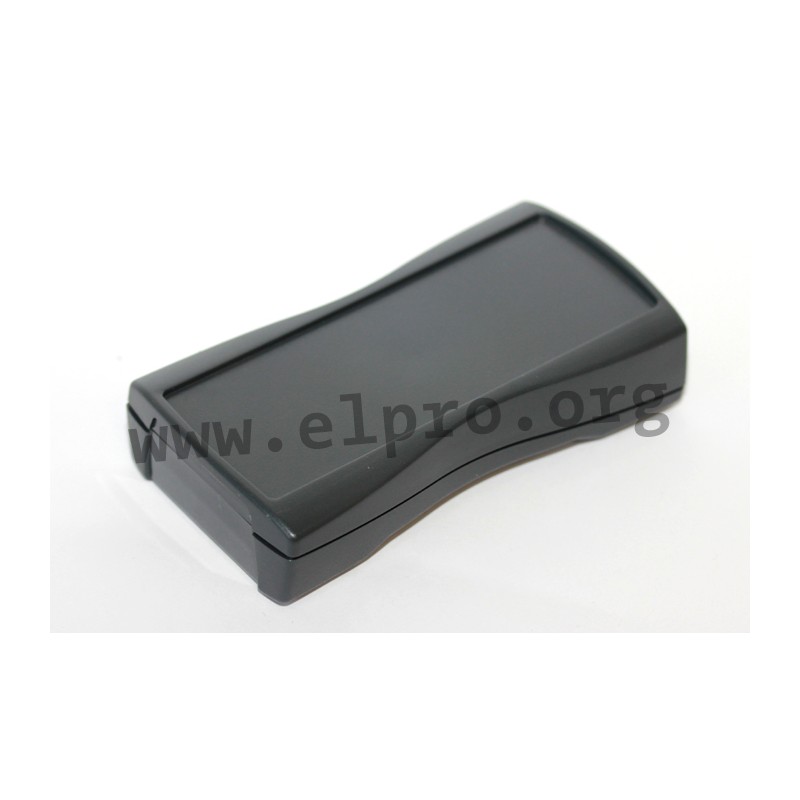

BS 400 F

ABS handheld enclosures

series: BOS streamline by Bopla

BS_F
* ergonomic design
* choice of parallel or console-type arrangement of the enclosure half-shells
* with or without battery compartment
* lid is recessed for membrane keypad
* colour: Graphite grey (RAL7024)

BS_DI-D_
* decorative seal, IP65 protection rating with anti-shock function
* for BOS streamline enclosures, IP65
* interior height increased by approx. 2.5mm
* colour: red (RAL301), blue (RAL5005), graphite grey (RAL7024)
* BS400DI-D_ suitable for use with BS40_F enclosure
* BS800DI-D_ suitable for use with BS80_F enclosure

BS 400 F

BS 400 F

32542 BS 400 F 82400124 82400124 ABS handheld enclosures. series: BOS streamline by BoplaBS_F* ergonomic design* choice of parallel or console-type arrangement of the enclosure half-shells* with or without battery compartment* lid is recessed for membrane keypad* colour: Graphite grey (RAL7024)BS_DI-D_* decorative seal, IP65 protection rating with anti-shock function* for BOS streamline enclosures, IP65* interior height increased by approx. 2.5mm* colour: red (RAL301), blue (RAL5005), graphite grey (RAL7024)* BS400DI-D_ suitable for use with BS40_F enclosure* BS800DI-D_ suitable for use with BS80_F enclosure

Specifications

manufacturer
Manufacturer's name 82400124
Colour grey

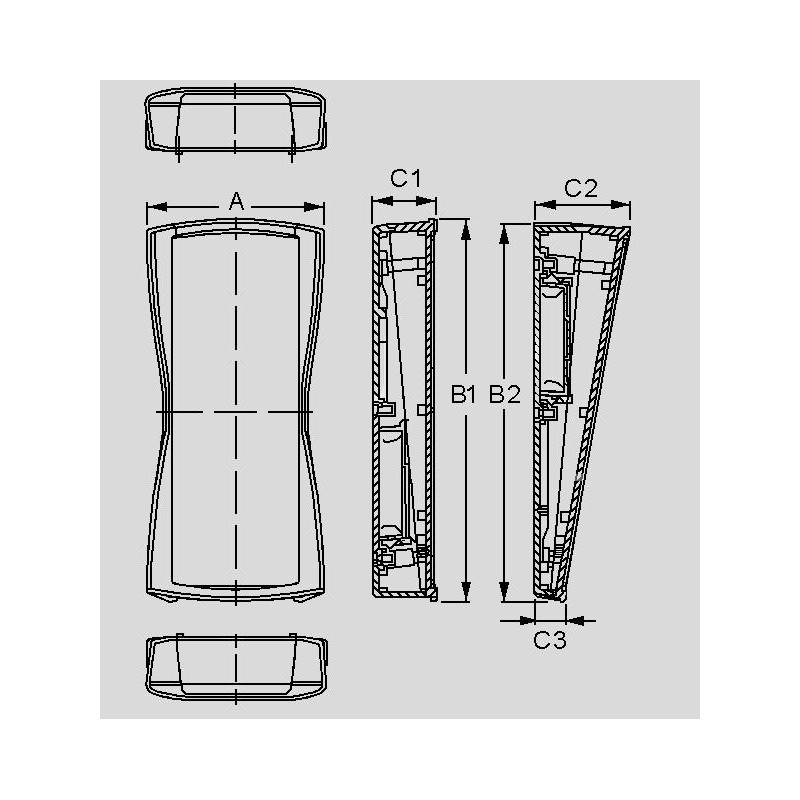

C2 [mm] 36,5
C3 [mm] 16,6
A [mm] 64,9
B1 [mm] 119,3
B2 [mm] 118,9
C1 [mm] 26,5
Data Sheet

Unit price

16,39 €

Stock: 100
Further delivery:
CW 52/2025
