4606X-101-222LF

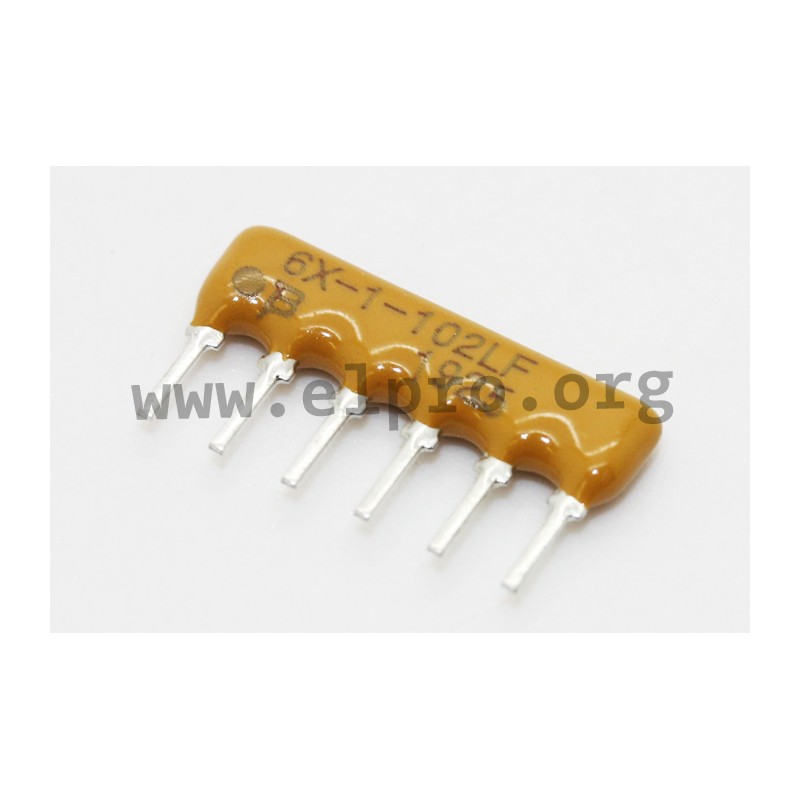

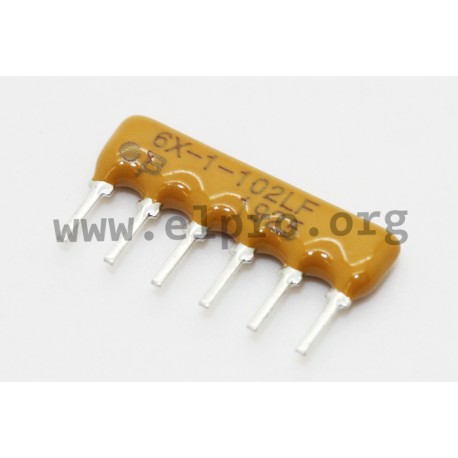

Bourns thick film resistor network series 4600X

  • power rating: 0,2W
  • 6 pins
  • 5 resistors
  • tolerance: ±2%
  • contacts: Sn/Ag/Cu-plated
  • working voltage Umax.: 100V
  • temperature range: -55 to +125°C
  • insulation resistance: 10000MOhm
  • dielectric withstanding voltage: 200VRMS
  • housing: SIP/SIL
  • pitch: 2,54mm

4606X-101-222LF

113901 4606X-101-222LF 4606X-101-222LF Bourns thick film resistor network series 4600X. power rating: 0,2W6 pins5 resistorstolerance: ±2%contacts: Sn/Ag/Cu-platedworking voltage Umax.: 100Vtemperature range: -55 to +125°Cinsulation resistance: 10000MOhmdielectric withstanding voltage: 200VRMShousing: SIP/SILpitch: 2,54mm

Specifications

manufacturer
Manufacturer's name 4606X-101-222LF
Resistance [Ω] 2,2k
Power [W] 0,2
Tolerance [%] 2
Data Sheet

Unit price

0,10 €

Stock: 1700
Further delivery:
CW 33/2024

Minimum order quantity 100 units or
multiples of 100.
