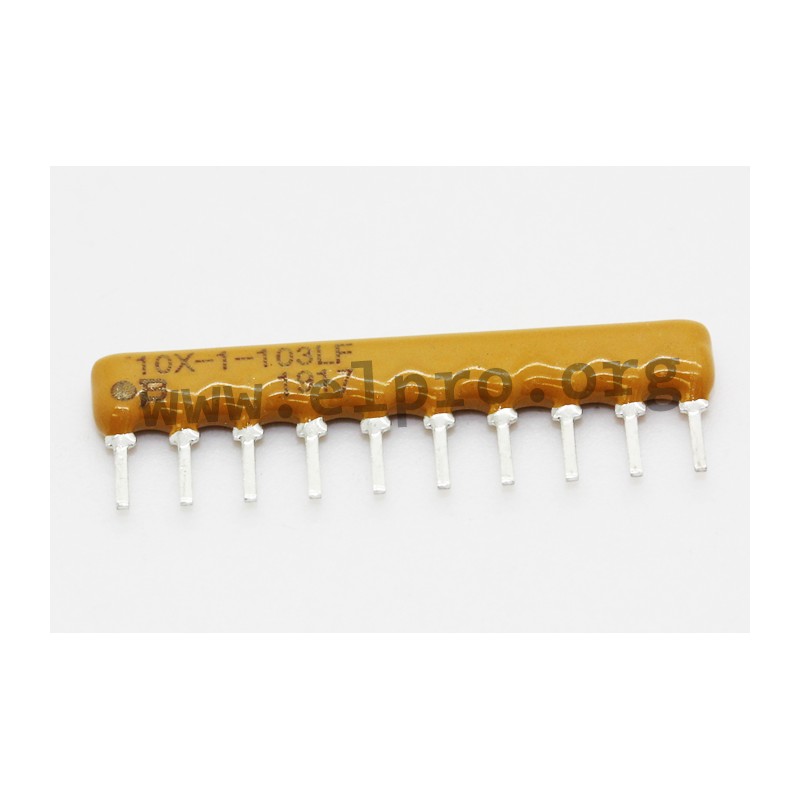

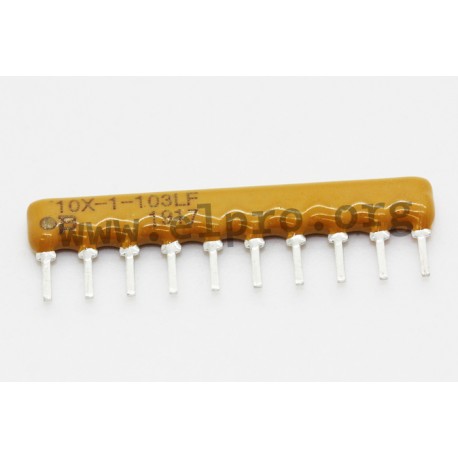

4610X-101-562LF

Bourns thick film resistor network series 4600X

  • 10 pins
  • 9 resistors
  • power rating: 0,2W
  • tolerance: ±2%
  • pitch: 2,54mm
  • housing: SIP/SIL
  • working voltage Umax.: 100V
  • dielectric withstanding voltage: 200VRMS
  • temperature range: -55 to +125°C
  • contacts: Sn/Ag/Cu-plated
  • insulation resistance: 10000MOhm

4610X-101-562LF

113969 4610X-101-562LF 4610X-101-562LF Bourns thick film resistor network series 4600X. 10 pins9 resistorspower rating: 0,2Wtolerance: ±2%pitch: 2,54mmhousing: SIP/SILworking voltage Umax.: 100Vdielectric withstanding voltage: 200VRMStemperature range: -55 to +125°Ccontacts: Sn/Ag/Cu-platedinsulation resistance: 10000MOhm

Specifications

manufacturer
Manufacturer's name 4610X-101-562LF
Resistance [Ω] 5,6k
Power [W] 0,2
Tolerance [%] 2
Data Sheet

Unit price

0,157 €

Stock: 2000
Further delivery:
CW 33/2024

Minimum order quantity 100 units or
multiples of 100.
