PX0411/08S/6065

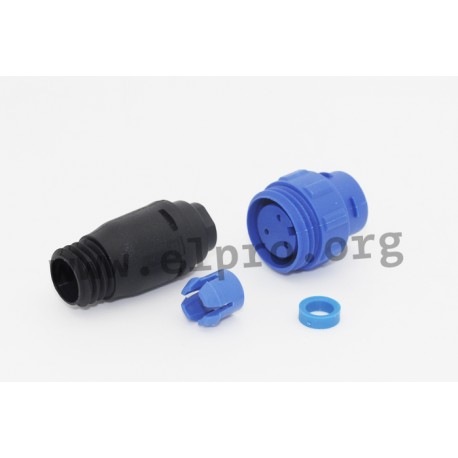

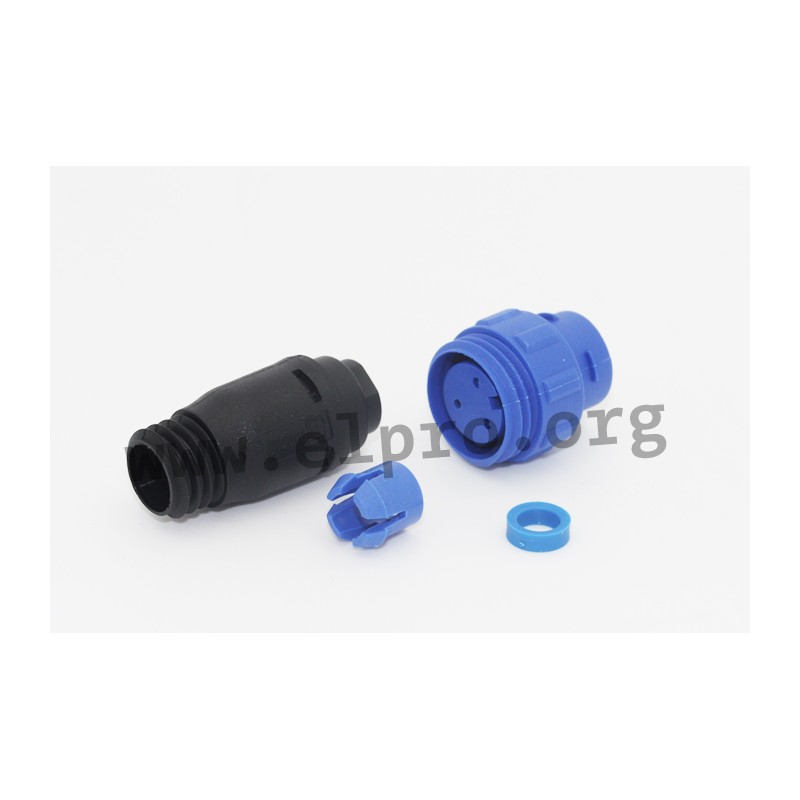

circular cable connector Buccaneer 400 by Bulgin

• series: Buccaneer 400
• watertight
• degree of protection: IP68, EN 60529
• for cables with 3...7mm mounting diameter
• PX_S: female
• housing Material: polyamide (VL94-V0)
• contact Material: copper-alloy, gold-plated
• contact resistance, max.: 5mΩ
• insulation resistance, min. (@500V DC): 106MΩ
• breakdown voltage, AC: 2,5kV
• operating temperature range: -40...+80°C
• by Bulgin

• rated current:5A
• rated voltage: 125V AC/DC

solder contacts must be ordered separately

suitable sealing caps

PX0411/08S/6065

41069 PX0411/08S/6065 PX0411/08S/6065 circular cable connector Buccaneer 400 by Bulgin. • series: Buccaneer 400• watertight• degree of protection: IP68, EN 60529• for cables with 3...7mm mounting diameter• PX_S: female• housing Material: polyamide (VL94-V0)• contact Material: copper-alloy, gold-plated• contact resistance, max.: 5mΩ• insulation resistance, min. (@500V DC): 106MΩ• breakdown voltage, AC: 2,5kV• operating temperature range: -40...+80°C• by Bulgin• rated current:5A• rated voltage: 125V AC/DCsolder contacts must be ordered separatelysuitable sealing caps

Specifications

manufacturer
Manufacturer's name PX0411/08S/6065
Number of poles 8
Data Sheet

Unit price

9,89 €

Stock: 41
Further delivery:
CW 30/2024
