Manufacturers

PX0931/02/S

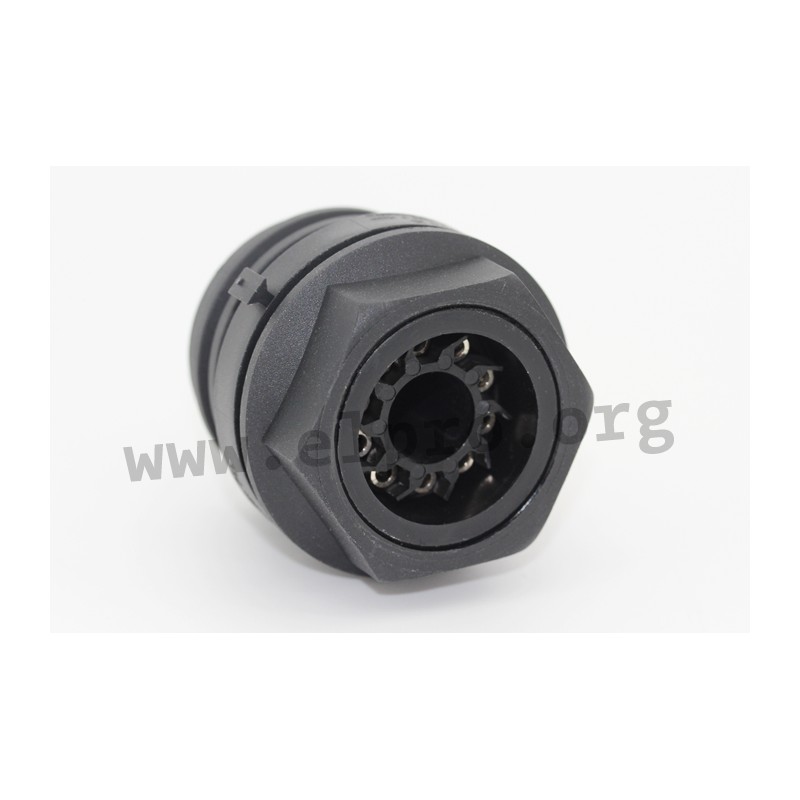

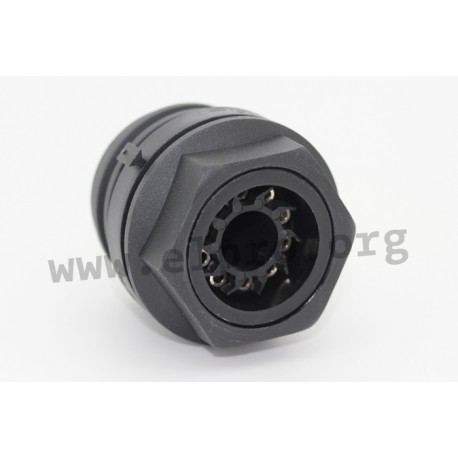

circular cable connector Buccaneer 900 by Bulgin

• series: Buccaneer 900
• watertight
• degree of protection: IP68
• PX09_S: female
• for panel mounting, 3...7mm panel thickness
• housing material: polyamide (VL94-V0)
• contact material: brass, nickel-plated
• rated current: 32A
• rated voltage: 600V AC/DC
• contact accommodation, max.: 2,5...4mm2 (13...10AWG)
• contact resistance, max.: 10mΩ
• insulation resistance, min. (@500V DC): 106
• breakdown voltage, AC, min.: 2,2kV
• operating temperature Range: -40...+85°C
• by Bulgin

suitable adapter, sealing caps and cable glands

PX0931/02/S

41112 PX0931/02/S PX0931/02/S circular cable connector Buccaneer 900 by Bulgin. • series: Buccaneer 900• watertight• degree of protection: IP68• PX09_S: female• for panel mounting, 3...7mm panel thickness• housing material: polyamide (VL94-V0)• contact material: brass, nickel-plated• rated current: 32A• rated voltage: 600V AC/DC• contact accommodation, max.: 2,5...4mm2 (13...10AWG)• contact resistance, max.: 10mΩ• insulation resistance, min. (@500V DC): 106MΩ• breakdown voltage, AC, min.: 2,2kV• operating temperature Range: -40...+85°C• by Bulginsuitable adapter, sealing caps and cable glands

Specifications

manufacturer
Manufacturer's name PX0931/02/S
Design front panel
Number of poles 2
Data Sheet

Unit price

25,09 €

Stock: 13
Further delivery:
CW 51/2024
