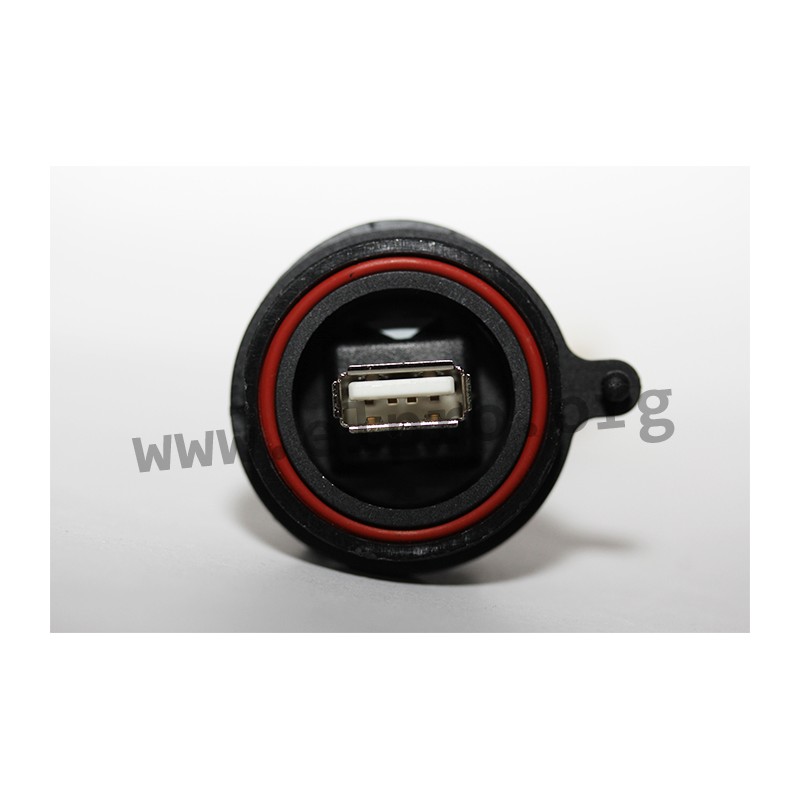

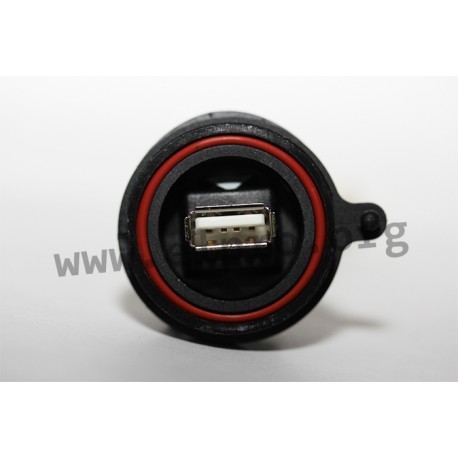

PX0842/A

USB connectors by Bulgin

• series USB-buccaneer
• dust and waterproof sealing when mated
• low and high speed bus connection, 1,5...450Mbs
• plug and play: hot plug, standard 4 pole interface
• high noise immunity and EMI protection
• proven locking system
• direct mounting or via adaptor leads
• corresponding USB2.0
• pole: 4
• housing material: PVC, UL94V-0
• colour: black
• contact material: copper alloy
• contact surface: gold-plated
• rated current: 1,0A
• rated voltage: 30V AC
• temperature range: 0...+70°C
• by Bulgin

front panel mounting connector:
• PX0842/A, A-type - standard B to rear

PX0842/A

PX0842/A

37021 PX0842/A PX0842/A USB connectors by Bulgin. • series USB-buccaneer• dust and waterproof sealing when mated• low and high speed bus connection, 1,5...450Mbs• plug and play: hot plug, standard 4 pole interface• high noise immunity and EMI protection• proven locking system• direct mounting or via adaptor leads• corresponding USB2.0• pole: 4• housing material: PVC, UL94V-0• colour: black• contact material: copper alloy• contact surface: gold-plated• rated current: 1,0A• rated voltage: 30V AC• temperature range: 0...+70°C• by Bulginfront panel mounting connector:• PX0842/A, A-type - standard B to rear

Specifications

manufacturer
Manufacturer's name PX0842/A
Data Sheet

Unit price

17,49 €

Stock: 142
Further delivery:
CW 46/2024
