PX0835

USB connectors by Bulgin

* series USB-buccaneer
* dust and waterproof sealing when mated
* low and high speed bus connection, 1,5...450Mbs
* plug and play: hot plug, standard 4 pole interface
* high noise immunity and EMI protection
* proven locking system
* direct mounting or via adaptor leads
* corresponding USB2.0
* pole: 4
* housing material: PVC, UL94V-0
* colour: black
* contact material: copper alloy
* contact surface: gold-plated
* rated current: 1,0A
* rated voltage: 30V AC
* temperature range: 0...+70°C
* by Bulgin

front panel mounting connector:
* PX0842/A, A-type - standard B to rear
* PX0842/B, B-type - standard A to rear
* PX0843/A, A-type - 5 way crimp to rear
* PX0843/B, B-type - 5 way crimp to rear

sealed USB cable, single ended, A-type to standard B
* PX0840/A/2M00, length 2 m
* PX0840/A/3M00, length 3 m
* PX0840/A/5M00, length 5 m

sealed USB cable, single ended, B-type to standard A
* PX0840/B/2M00, length 2 m
* PX0840/B/3M00, length 3 m
* PX0840/B/5M00, length 5 m

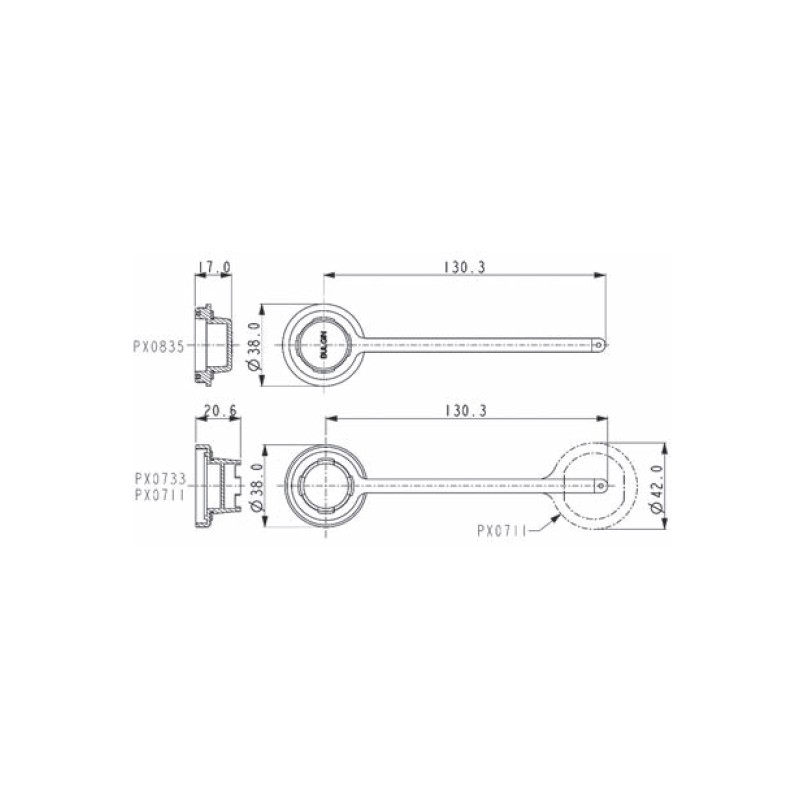

seling caps:
* PX0733, for front panel mounting connectors PX0842 and PX0843

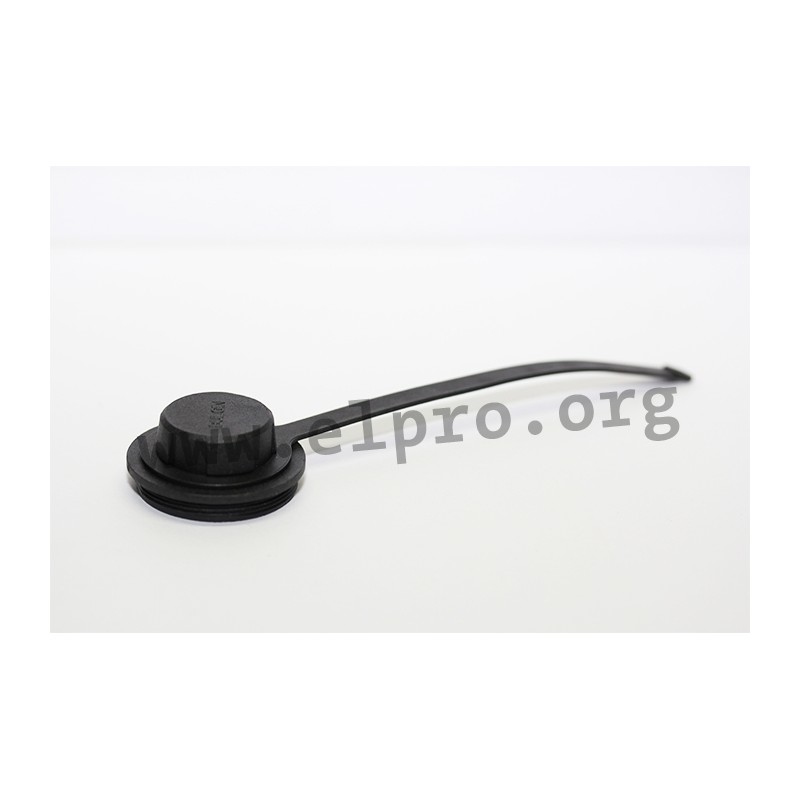

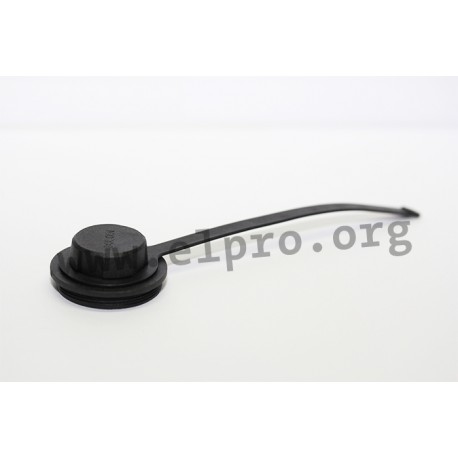

* PX0835, for cable connectors PX0840/_
PX0835

PX0835

37032 PX0835 PX0835 USB connectors by Bulgin. * series USB-buccaneer* dust and waterproof sealing when mated* low and high speed bus connection, 1,5...450Mbs* plug and play: hot plug, standard 4 pole interface* high noise immunity and EMI protection* proven locking system* direct mounting or via adaptor leads* corresponding USB2.0* pole: 4* housing material: PVC, UL94V-0* colour: black* contact material: copper alloy* contact surface: gold-plated* rated current: 1,0A* rated voltage: 30V AC* temperature range: 0...+70°C* by Bulginfront panel mounting connector:* PX0842/A, A-type - standard B to rear * PX0842/B, B-type - standard A to rear* PX0843/A, A-type - 5 way crimp to rear* PX0843/B, B-type - 5 way crimp to rearsealed USB cable, single ended, A-type to standard B* PX0840/A/2M00, length 2 m* PX0840/A/3M00, length 3 m* PX0840/A/5M00, length 5 msealed USB cable, single ended, B-type to standard A* PX0840/B/2M00, length 2 m* PX0840/B/3M00, length 3 m* PX0840/B/5M00, length 5 mseling caps:* PX0733, for front panel mounting connectors PX0842 and PX0843* PX0835, for cable connectors PX0840/_

Specifications

manufacturer
Manufacturer's name PX0835
Data Sheet

Unit price

4,29 €

Stock: 77
Further delivery:
CW 37/2024
