CPS-EC1000.024(R2)

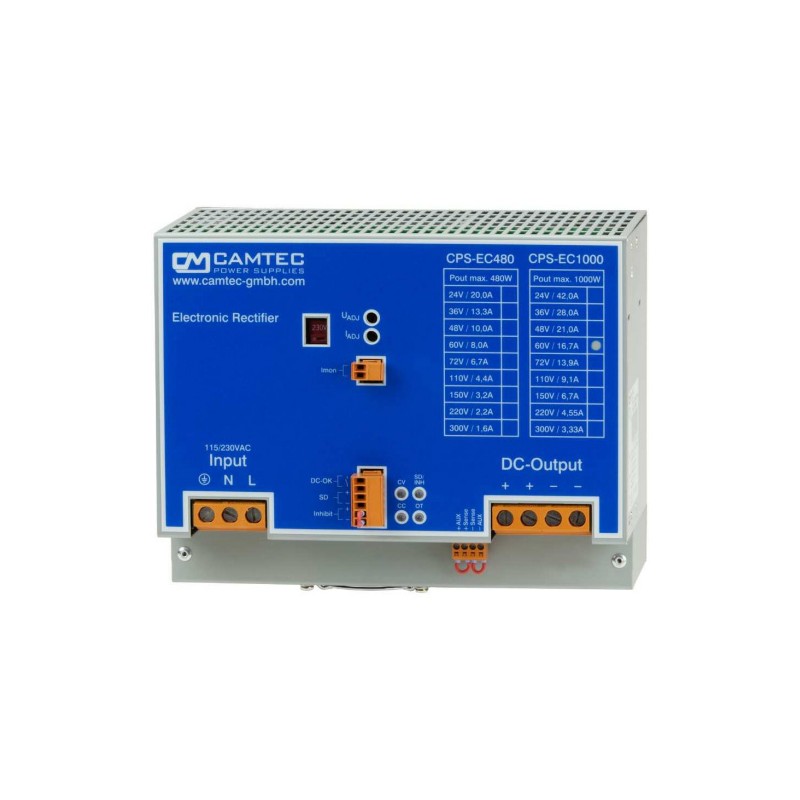

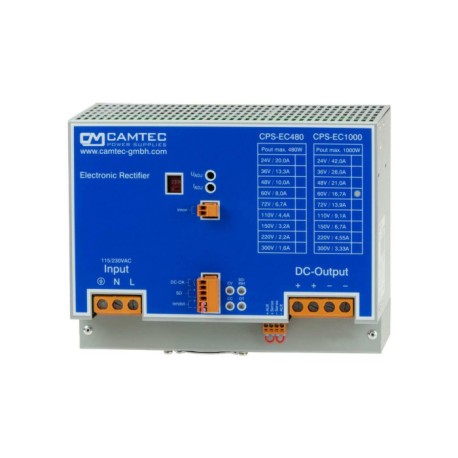

Camtec rectifier battery charger series CPS-EC1000

Battery chargers with 1008W, an ajustable output voltage, a remote controle,  a remote sense, and an DC-OK signal. These devices are protected against overload, over voltage, overtemperature and short circuit. We offer the following types of this Camtec series: CPS-EC1000.024(R2), CPS-EC1000.036(R2), CPS-EC1000.048(R2), CPS-EC1000.060(R2), CPS-EC1000.072(R2), CPS-EC1000.110(R2), CPS-EC1000.150(R2), CPS-EC1000.220(R2), and CPS-EC1000.400(R2).

  • output current: 1008W
  • input voltage: 184 to 264V AC, (47...63Hz), 250 to 375V DC
  • input current: 9,8A
  • maximum starting current: 9,8A
  • operating temperature: -25 to +70°C
  • dimensions: 200x156x115mm
  • weight: 3300g
CPS-EC1000.024(R2), Camtec DC rectifier battery charger, 1008W, IP20, DIN rail mounting, CPS-EC1000 series

CPS-EC1000.024(R2)

251866 CPS-EC1000.024(R2) CPS-EC1000.024(R2) Camtec rectifier battery charger series CPS-EC1000. Battery chargers with 1008W, an ajustable output voltage, a remote controle,  a remote sense, and an DC-OK signal. These devices are protected against overload, over voltage, overtemperature and short circuit. We offer the following types of this Camtec series: CPS-EC1000.024(R2), CPS-EC1000.036(R2), CPS-EC1000.048(R2), CPS-EC1000.060(R2), CPS-EC1000.072(R2), CPS-EC1000.110(R2), CPS-EC1000.150(R2), CPS-EC1000.220(R2), and CPS-EC1000.400(R2). output current: 1008W input voltage: 184 to 264V AC, (47...63Hz), 250 to 375V DC  input current: 9,8A maximum starting current: 9,8A operating temperature: -25 to +70°C dimensions: 200x156x115mm weight: 3300g

Specifications

manufacturer
Manufacturer's name CPS-EC1000.024(R2)
Output voltage [V] 24
Efficiency [%] 92
Output current [A] 44,1
Output power [W] 1008
Data Sheet

Unit price

802,39 €

Stock: 0
Further delivery:
CW 04/2026
