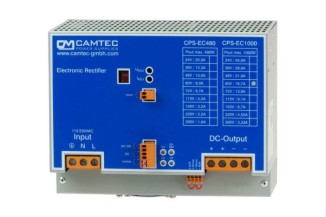

Camtec rectifier battery charger series CPS-EC1000

Battery chargers with 1008W, an ajustable output voltage, a remote controle,  a remote sense, and an DC-OK signal. These devices are protected against overload, over voltage, overtemperature and s...

Camtec rectifier battery charger series CPS-EC1000

Battery chargers with 1008W, an ajustable output voltage, a remote controle,  a remote sense, and an DC-OK signal. These devices are protected against overload, over voltage, overtemperature and short circuit. We offer the following types of this Camtec series: CPS-EC1000.024(R2), CPS-EC1000.036(R2), CPS-EC1000.048(R2), CPS-EC1000.060(R2), CPS-EC1000.072(R2), CPS-EC1000.110(R2), CPS-EC1000.150(R2), CPS-EC1000.220(R2), and CPS-EC1000.400(R2).

  • output current: 1008W
  • input voltage: 184 to 264V AC, (47...63Hz), 250 to 375V DC
  • input current: 9,8A
  • maximum starting current: 9,8A
  • operating temperature: -25 to +70°C
  • dimensions: 200x156x115mm
  • weight: 3300g
