ESB101.LED.230VAC

Camtec inrush current limiter series ESB001/ESB101(R2)/ESB201(R2)/ESB303(R2)/ESB00351(R2)

Single- (ESB101_/ESB201_) resp. three-phase (ESB303_) peak / RMS current limiters in a plastic housing (IP20/UL94V-0) for capacitive loads (1000µF to 10.000µF). These devices have an integrated bypass relay as well as a built-in temperature monitoring and comply with EN60950-1, EN61010-1, EN62368-1 as well as EN55032. We offer various types of this Camtec series.

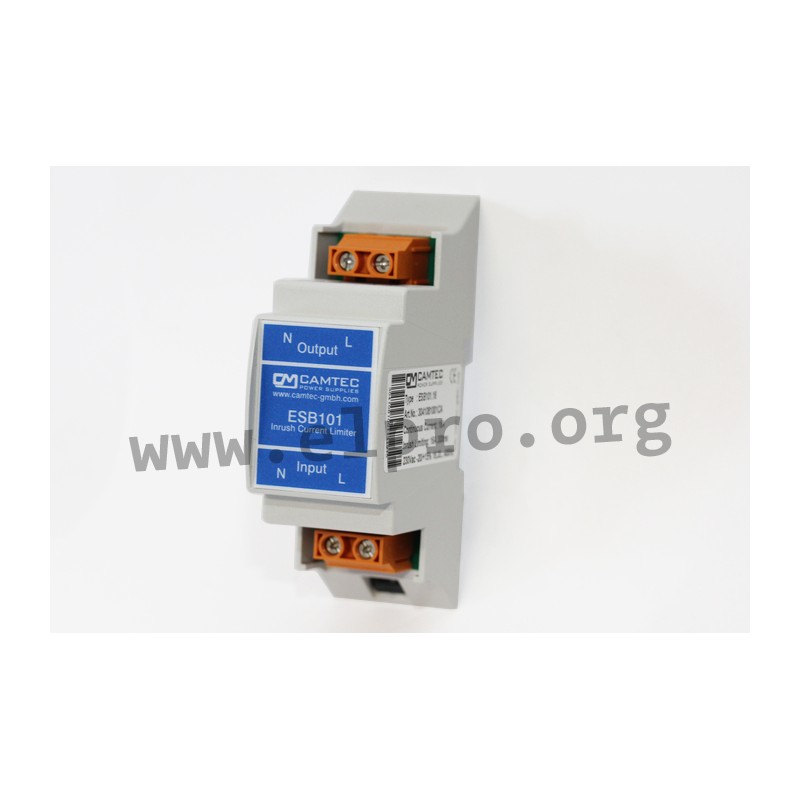

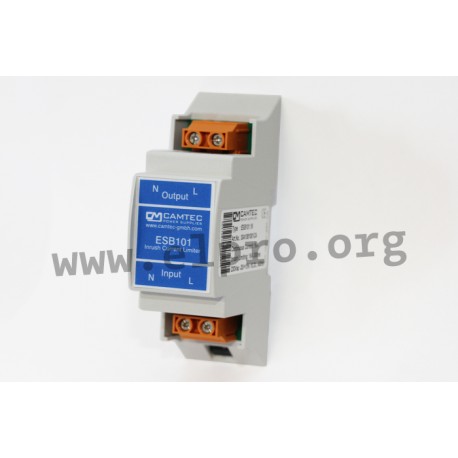

ESB101 by Camtec

ESB101.LED.230VAC

43747 ESB101.LED.230VAC ESB101.LED.230VAC(R2) ESB101.LED.230VAC(R2) Camtec inrush current limiter series ESB001/ESB101(R2)/ESB201(R2)/ESB303(R2)/ESB00351(R2). Single- (ESB101_/ESB201_) resp. three-phase (ESB303_) peak / RMS current limiters in a plastic housing (IP20/UL94V-0) for capacitive loads (1000µF to 10.000µF). These devices have an integrated bypass relay as well as a built-in temperature monitoring and comply with EN60950-1, EN61010-1, EN62368-1 as well as EN55032. We offer various types of this Camtec series.

Specifications

manufacturer
Manufacturer's name ESB101.LED.2...
Switching current, max. [A] 48
R.M.S. current limiting, max. [A] 33,9
Phase 1 phase
Release time [ms] 550
Limiting intervall, min. [ms] 900
Limiting time [ms] 300
Capacity [µF] 6000
Data Sheet

Unit price

57,99 €

Volume discounts

Quantity Unit price
485 + 45,49 €

Stock: 578
Further delivery:
CW 42/2024
