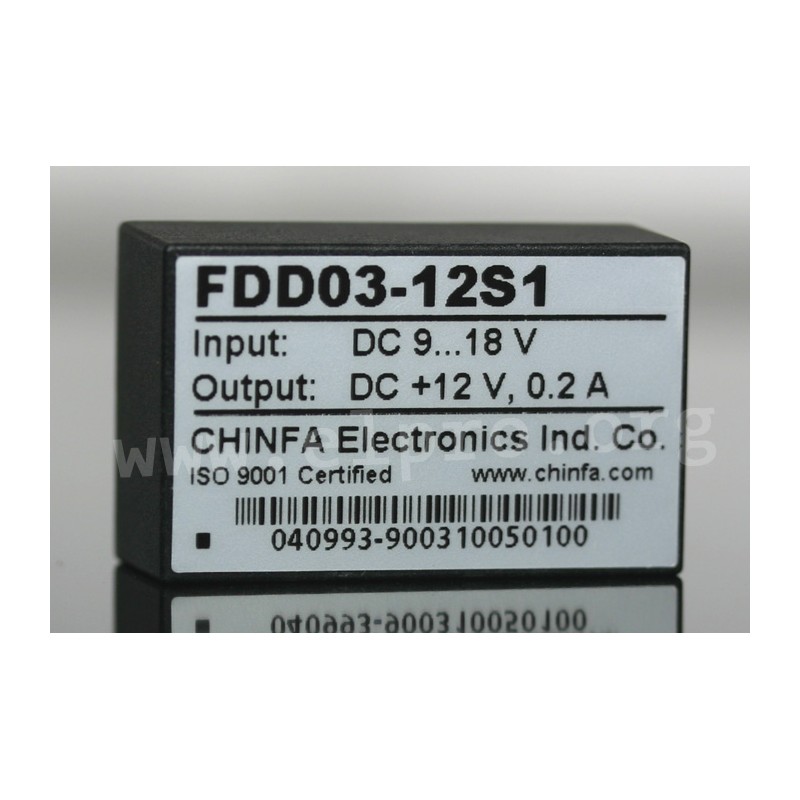

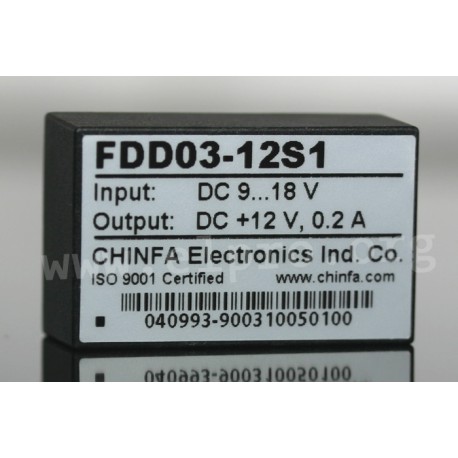

DC18/DC 12V 200mA

Chinfa DC/DC converter series FDD03

DC/DC converters in a DIL24 housing with 2 to 3 W output power are ideal for direct PCB mounting. These devices have both single and dual outputs, allowing for versatile use in various applications. With an input voltage range of 2:1 and 3:1, they provide DC decoupling of input and output while maintaining regulated output voltage. The converters are short-circuit proof, ensuring reliable operation even under challenging conditions. They can withstand high voltages up to 1500 V DC on the input/output side without any issues. Operating temperatures ranging from -40°C to +71°C make these Chinfa products suitable for use in harsh environments where temperature fluctuations occur frequently. We offer the type FDD03-12S1 of this Chinfa series.

  • output: 2,4W
  • input voltage ratio2:1
  • withstand voltage: 1500V DC
  • weight: 15g
Chinfa FDD03 series

DC18/DC 12V 200mA

18134 DC18/DC 12V 200mA FDD03-12S1 FDD03-12S1 Chinfa DC/DC converter series FDD03. DC/DC converters in a DIL24 housing with 2 to 3 W output power are ideal for direct PCB mounting. These devices have both single and dual outputs, allowing for versatile use in various applications. With an input voltage range of 2:1 and 3:1, they provide DC decoupling of input and output while maintaining regulated output voltage. The converters are short-circuit proof, ensuring reliable operation even under challenging conditions. They can withstand high voltages up to 1500 V DC on the input/output side without any issues. Operating temperatures ranging from -40°C to +71°C make these Chinfa products suitable for use in harsh environments where temperature fluctuations occur frequently. We offer the type FDD03-12S1 of this Chinfa series. output: 2,4W input voltage ratio2:1 withstand voltage: 1500V DC weight: 15g

Discontinued items. Only remainder of stock available.

Specifications

manufacturer
Manufacturer's name FDD03-12S1

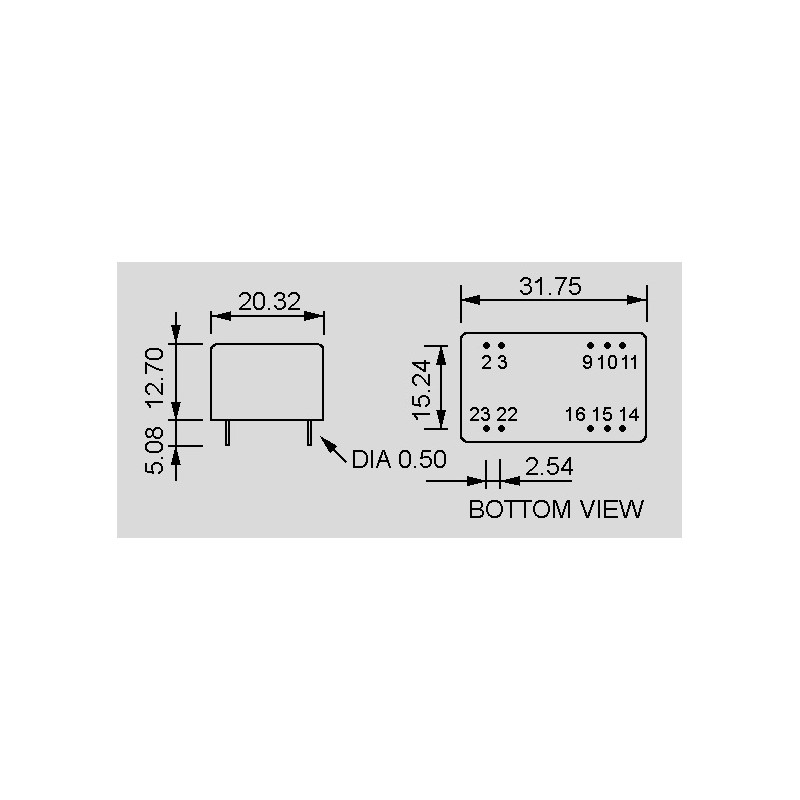

Case DIL 24 case
Input [V DC] 9...18
Output [mA] 200
Output [V] 12
Efficiency [%] 65
Data Sheet

Unit price

9,39 €

Stock: 1
