D6R rot

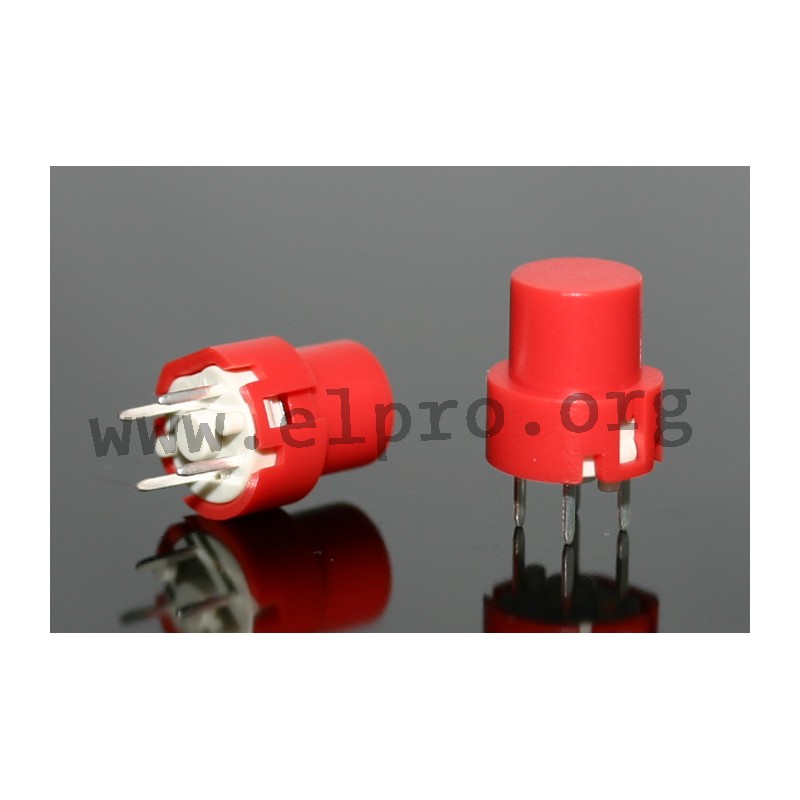

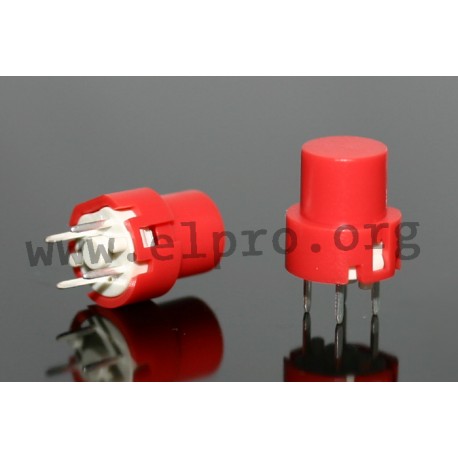

round key

• single pole momentary switch with an SPST contact for mounting on an electronic keyboard
• positive tactile feedback
• colors: blue, yellow, green, grey, red, black or white
• switching capacity, max.: 3VA
• switching voltage, max.: 32V DC
• switching current, max.: 100mA DC
• test voltage (50Hz, 1min.): >250V
• operating life at max switching capacity: >2.5x105 operations
• contact resistance: <100mΩ
• insulation resistance: 108Ω
• contact bounce time: <10ms
• operating force: 1.3N (0.8...1.8N)
• switching travel: 0.2...1mm
• hand soldering: 350°C/3s
• wave soldering: 260°C/5s

D6R rot

13170 D6R rot D6R40F1LFS D6R40F1LFS round key. • single pole momentary switch with an SPST contact for mounting on an electronic keyboard• positive tactile feedback• colors: blue, yellow, green, grey, red, black or white• switching capacity, max.: 3VA• switching voltage, max.: 32V DC• switching current, max.: 100mA DC• test voltage (50Hz, 1min.): &gt;250V• operating life at max switching capacity: &gt;2.5x105 operations• contact resistance: &lt;100mΩ• insulation resistance: 108Ω• contact bounce time: &lt;10ms• operating force: 1.3N (0.8...1.8N)• switching travel: 0.2...1mm• hand soldering: 350°C/3s• wave soldering: 260°C/5s

Specifications

manufacturer
Manufacturer's name D6R40F1LFS
Colour red

Unit price

0,46 €

Stock: 3307
Further delivery:
CW 28/2024

Minimum order quantity 1 to 7 units or multiples of 25 plus 0 to 7 .
