> Passive elements>LED indicator lamps>LED indicators>CML LED indicators, Ø8mm, 24V DC, tricoloured LED>19TR0I24

Manufacturers

19TR0I24

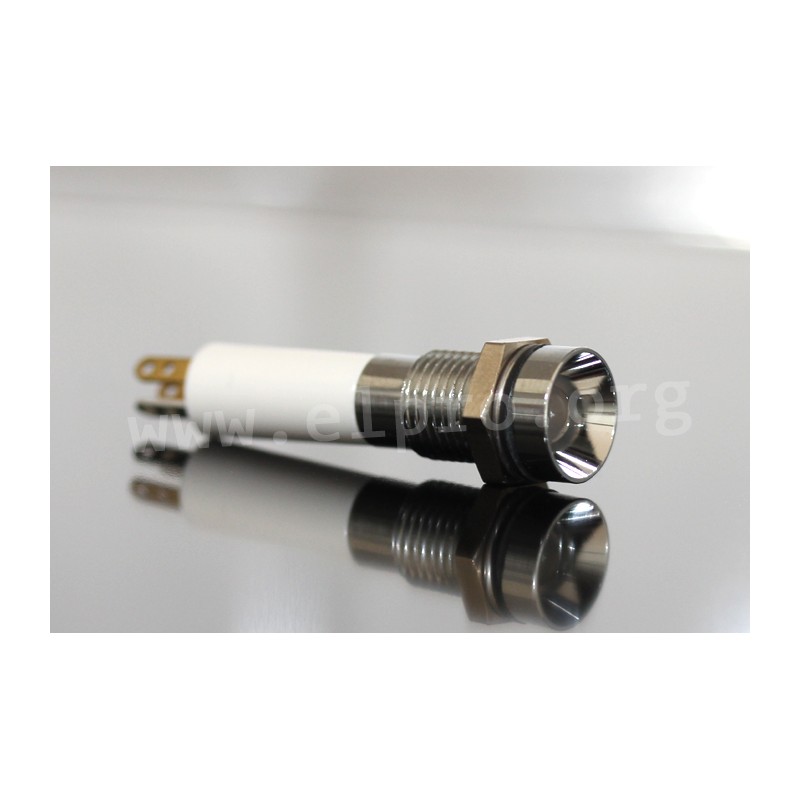

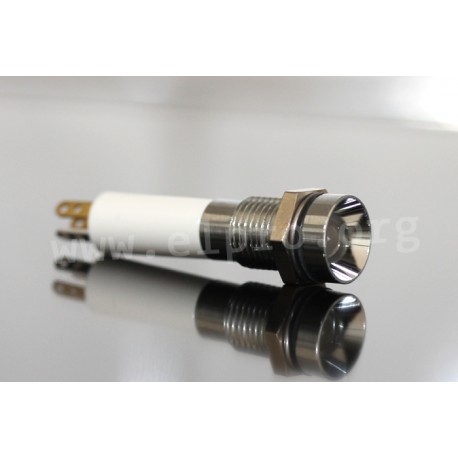

CML LED indicators 8mm

Three colour LED indicators with integrated resistor and confirming protection type IP67. We offer various types of this CML series.

  • rated voltage: 24V DC
  • voltage tolerance: +10%
  • current, typ. (red/green/yellow): 20/20/40 mA
  • operating temperature: -20 to +40°C

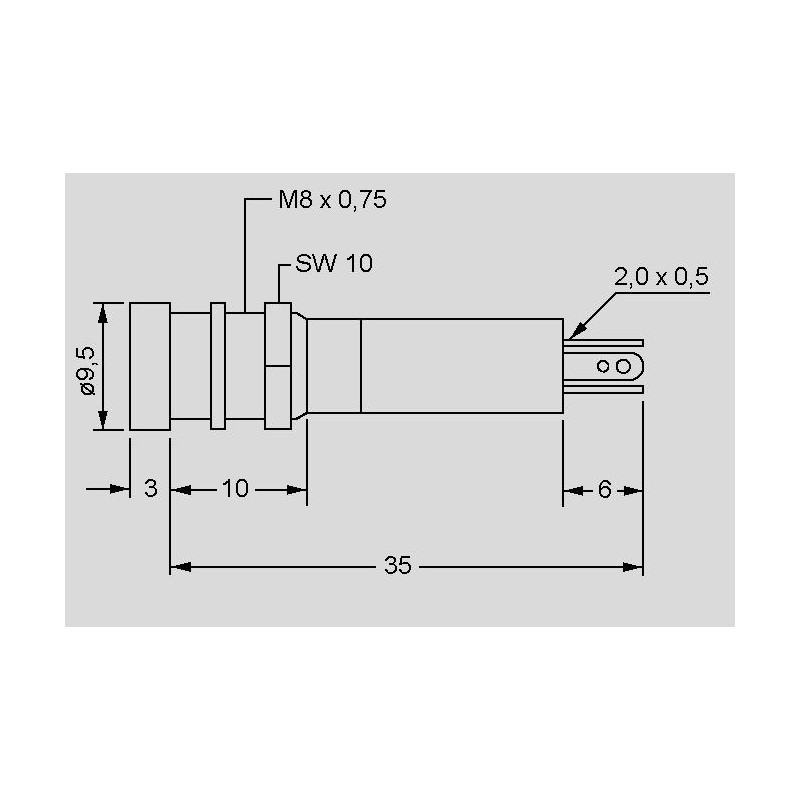

dimensions

19TR0I24

34026 19TR0I24 19TR0I24 CML LED indicators 8mm. Three colour LED indicators with integrated resistor and confirming protection type IP67. We offer various types of this CML series. rated voltage: 24V DC voltage tolerance: +10% current, typ. (red/green/yellow): 20/20/40 mA operating temperature: -20 to +40°C

Discontinued items. Only remainder of stock available.

Specifications

Colour red/green/yellow
Reflector glänzend verchromt
Luminous intensity [µcd] 10/20/30
Data Sheet

Unit price

2,80 €

Stock: 1
