WG A0 12D 45

45A, reversing contactor, thyristor outout, Hockey Puck housing

* thyristor output
* insulation voltage 4kV
* operating temparature range -20...+80°C

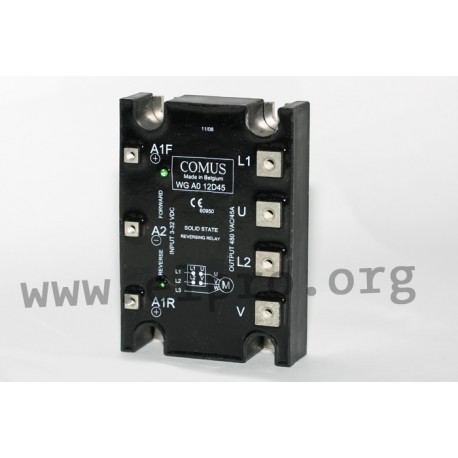

Comus WGA0 series

WG A0 12D 45

16840 WG A0 12D 45 WGA0-12D45 WGA0-12D45 45A, reversing contactor, thyristor outout, Hockey Puck housing. * thyristor output* insulation voltage 4kV * operating temparature range -20...+80°C

Specifications

manufacturer
Manufacturer's name WGA0-12D45
Non repetitive surge peak on-state current [A] 500
Max. off-state output voltage [V] 1200
Forward current, max. [A] 45
Control voltage [V] 3...32
Load voltage [V] 48...480
Data Sheet

Unit price

206,09 €

Stock: 0
Next incoming goods:
CW 31/2026
5 units

Further delivery:
CW 46/2026
