WG 280 D 45Z

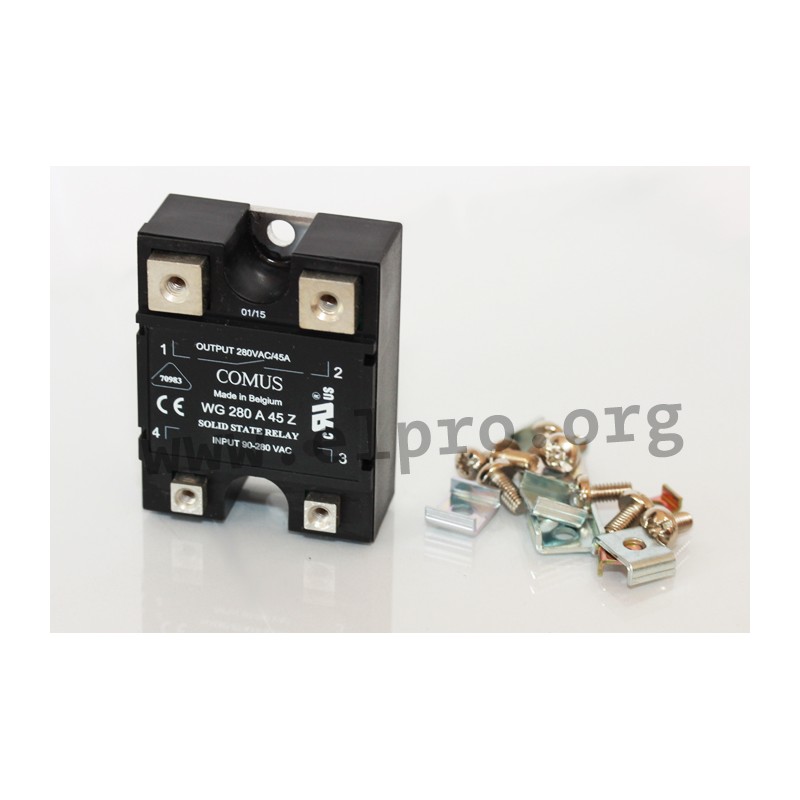

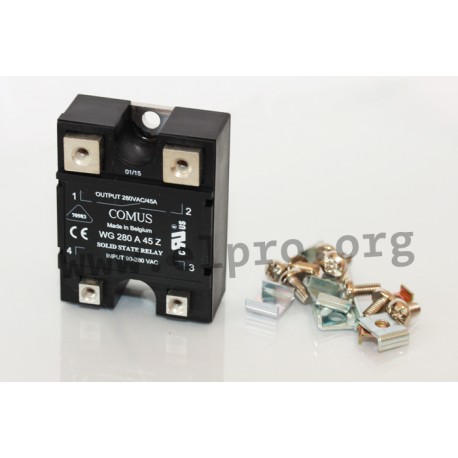

Comus solid state relay series WG280

  • 25 - 125A at 280V
  • with a thyrstor output
  • hockey puck housing
  • isolation voltage 4kV
  • for alternating voltage
  • zero crossing circuit
  • operating temperature range: -20 to +80°C
Comus WG280 series

WG 280 D 45Z

38726 WG 280 D 45Z WG280-D45Z WG280-D45Z Comus solid state relay series WG280. 25 - 125A at 280V with a thyrstor output hockey puck housing isolation voltage 4kV for alternating voltage zero crossing circuit operating temperature range: -20 to +80°C

Specifications

manufacturer
Manufacturer's name WG280-D45Z
Non repetitive surge peak on-state current [A] 500
Max. off-state output voltage [V] 600
Forward current, max. [A] 45
Control voltage [V] 3...32
Load voltage [V] 24...280
Data Sheet

Unit price

32,89 €

Stock: 0
Next incoming goods:
CW 04/2026
37 units

Further delivery:
CW 20/2026
