WG A8 12 D05 R

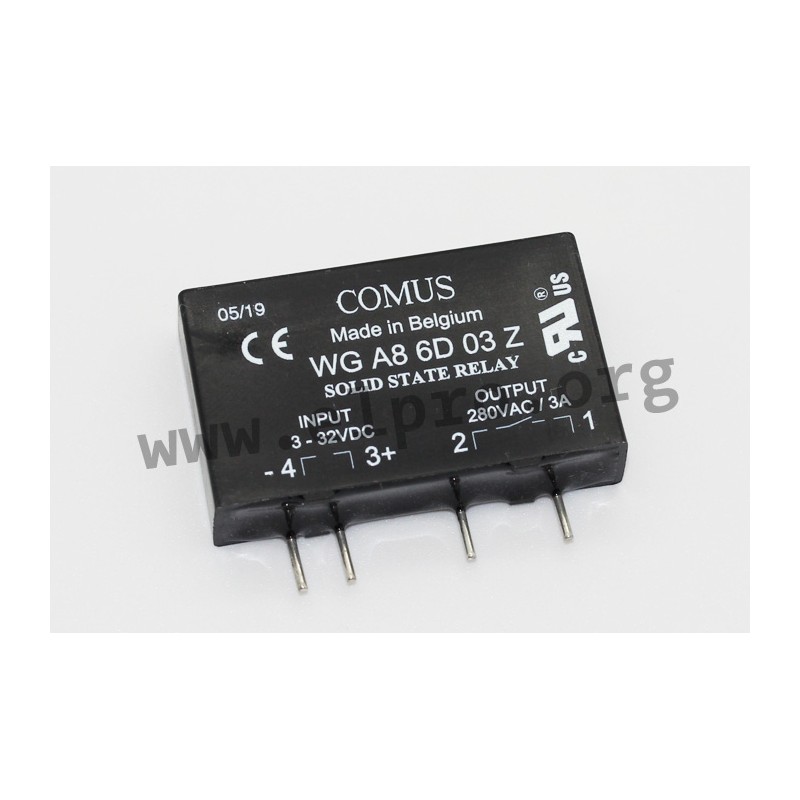

Comus solid state relay series WGA8

  • solid state relays in a SIL housing with a triac output
  • withstand voltage I/P-O/P: 4kV
  • operating temperature: -20 to +80°C
  • random switching R-Version is recommended for inductive loads
  • the zero-voltage switching Z-version is recommended for capacitive and resistive loads

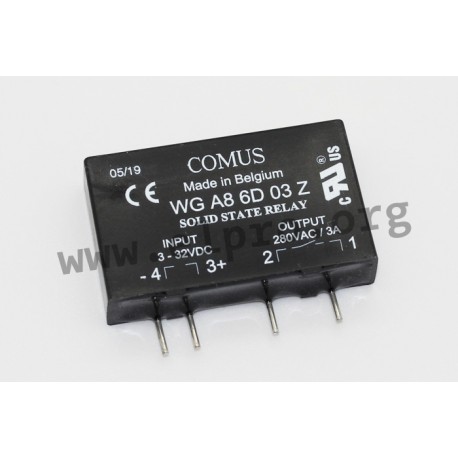

WGA8-12D05R, Comus solid state relays, 3-5A, 280-480V, triac output, SIP design, WG A8 series

WG A8 12 D05 R

16849 WG A8 12 D05 R WGA8-12D05R WGA8-12D05R Comus solid state relay series WGA8. solid state relays in a SIL housing with a triac output withstand voltage I/P-O/P: 4kV operating temperature: -20 to +80°C random switching R-Version is recommended for inductive loads the zero-voltage switching Z-version is recommended for capacitive and resistive loads

Specifications

manufacturer
Manufacturer's name WGA8-12D05R
Non repetitive surge peak on-state current [A] 120
Switch positions instantaneou...
Max. off-state output voltage [V] 1200
Forward current, max. [A] 5
Control voltage [V] 3...32
Load voltage [V] 24...480
Data Sheet

Unit price

34,89 €

Stock: 0
Next incoming goods:
CW 25/2024
552 units

Further delivery:
CW 36/2024
