WG A8 8D 05 Z

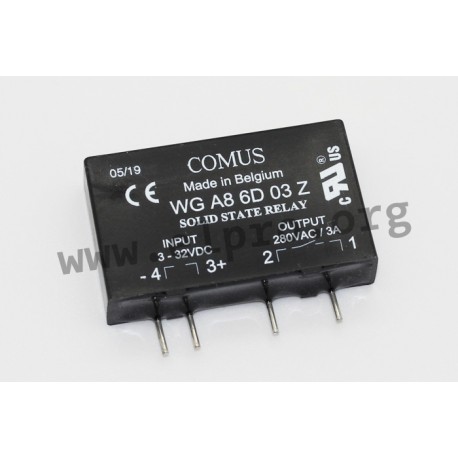

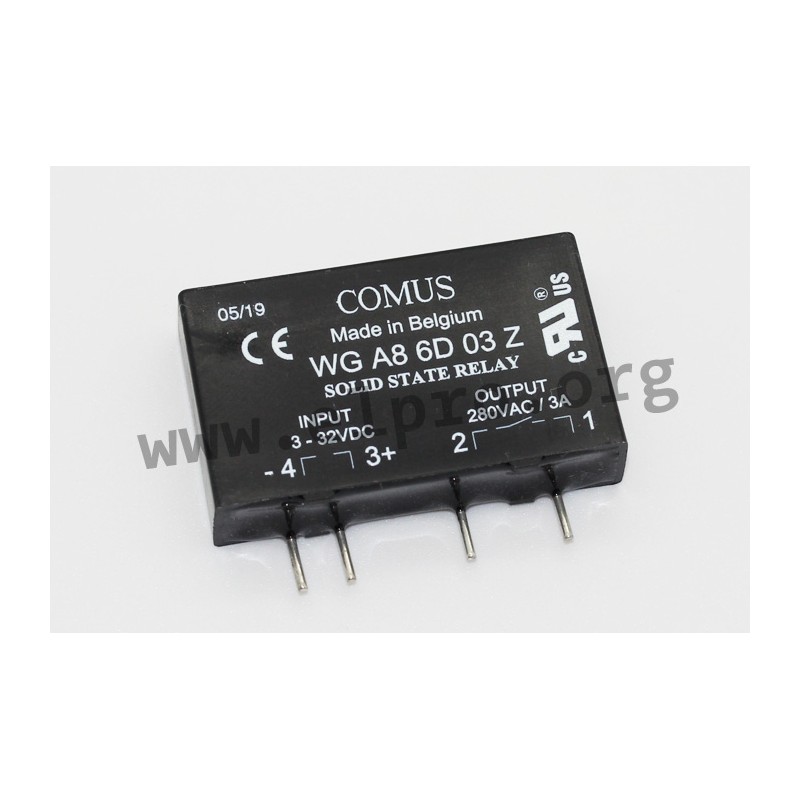

Comus solid state relay series WGA8

  • solid state relays in a SIL housing with a triac output
  • withstand voltage I/P-O/P: 4kV
  • operating temperature: -20 to +80°C
  • random switching R-Version is recommended for inductive loads
  • the zero-voltage switching Z-version is recommended for capacitive and resistive loads

WG A8 8D 05 Z

28818 WG A8 8D 05 Z WGA8-8D05Z WGA8-8D05Z Comus solid state relay series WGA8. solid state relays in a SIL housing with a triac output withstand voltage I/P-O/P: 4kV operating temperature: -20 to +80°C random switching R-Version is recommended for inductive loads the zero-voltage switching Z-version is recommended for capacitive and resistive loads

Specifications

manufacturer
Manufacturer's name WGA8-8D05Z
Non repetitive surge peak on-state current [A] 120
Switch positions zero-voltage...
Max. off-state output voltage [V] 800
Forward current, max. [A] 5
Control voltage [V] 3...32
Load voltage [V] 24...420
Data Sheet

Unit price

38,59 €

Stock: 29
