> Passive elements>D-subminiature connectors>Pin strips>Conec pin strips, machined contacts, solder bucket, 163A series>DS 09 P-L

Manufacturers

DS 09 P-L

high quality version

* DS_P-L: solder buckets
* DS_P-P: solder pins
* DS_P-A: 90° angled

* machined contacts
* insulating shell: polyester, glass fiber reinforced, self-extinguishing (UL94V-0)
* contact material: Cu-alloy
* cotact surface: nickel, gold-plated
* housing frame: steel plate, nickel layer and tin-plated
* operating temperature range: -55...+125°C

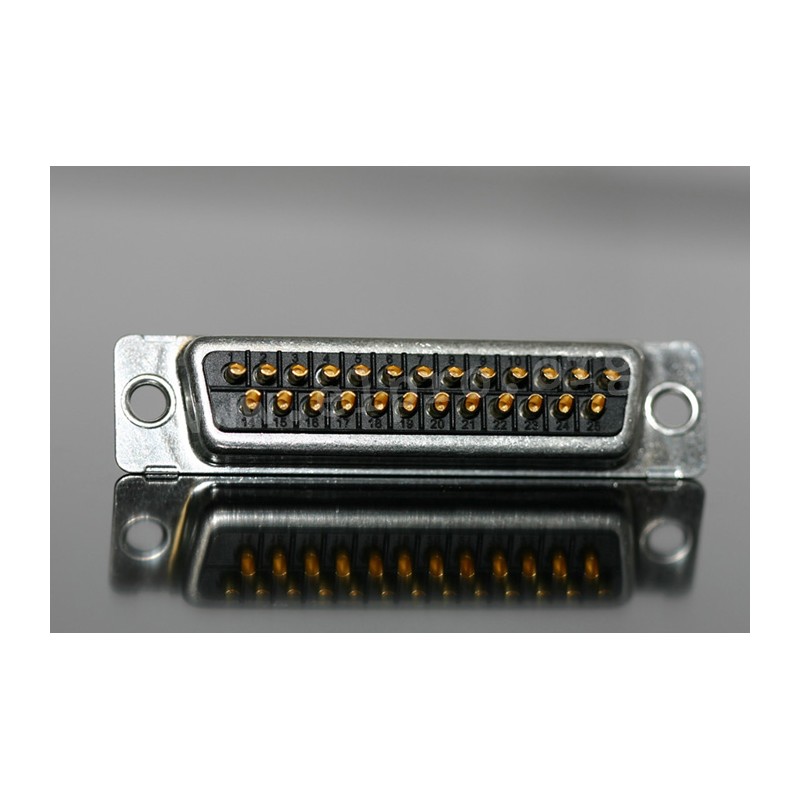

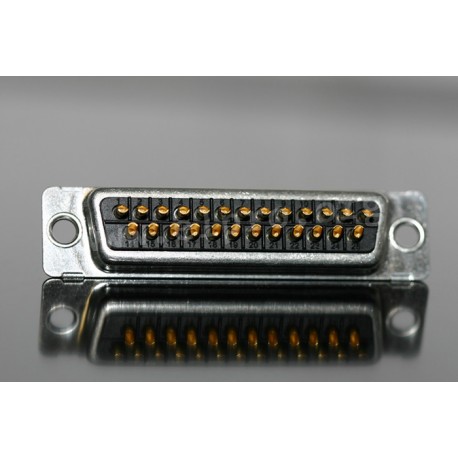

DS 25 P-L

DS 09 P-L

28187 DS 09 P-L 163A11069X 163A11069X high quality version. * DS_P-L: solder buckets * DS_P-P: solder pins * DS_P-A: 90° angled * machined contacts * insulating shell: polyester, glass fiber reinforced, self-extinguishing (UL94V-0) * contact material: Cu-alloy * cotact surface: nickel, gold-plated * housing frame: steel plate, nickel layer and tin-plated * operating temperature range: -55...+125°C

Discontinued items. Only remainder of stock available.

Specifications

manufacturer
Manufacturer's name 163A11069X
Number of poles 9

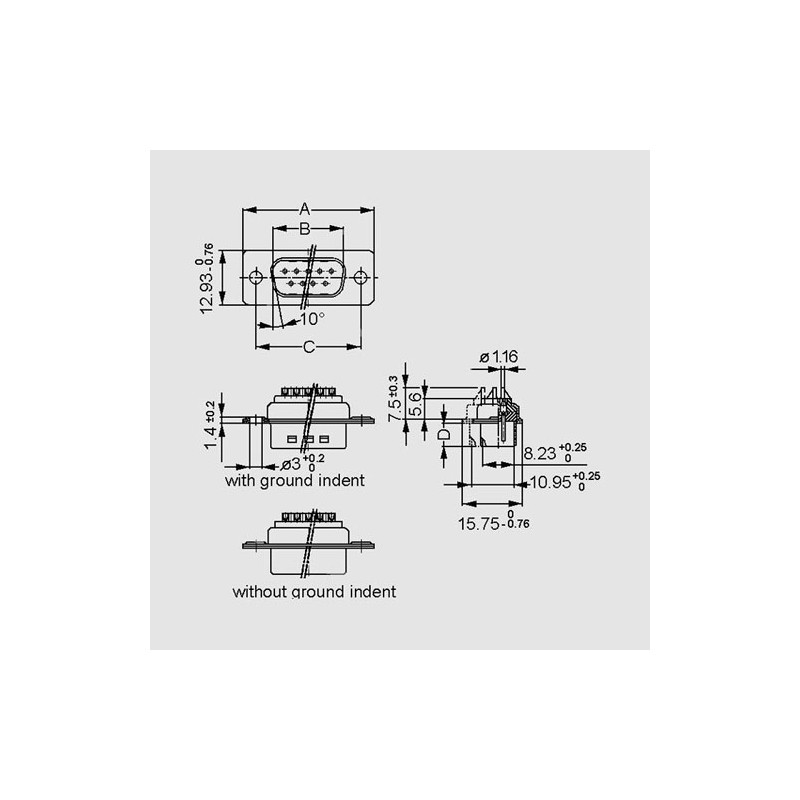

A [mm] 31,19
Width [mm] 16,79
D [mm] -
C [mm] 25

Unit price

2,19 €

Stock: 940
Next incoming goods:
CW 37/2026
1000 units

Minimum order quantity 5 units or
multiples of 5.
