DS 37 P-L

high quality version

* DS_P-L: solder buckets
* DS_P-P: solder pins
* DS_P-A: 90° angled

* machined contacts
* insulating shell: polyester, glass fiber reinforced, self-extinguishing (UL94V-0)
* contact material: Cu-alloy
* cotact surface: nickel, gold-plated
* housing frame: steel plate, nickel layer and tin-plated
* operating temperature range: -55...+125°C

DS _ P-L

DS 37 P-L

28212 DS 37 P-L 163A11099X 163A11099X high quality version. * DS_P-L: solder buckets * DS_P-P: solder pins * DS_P-A: 90° angled * machined contacts * insulating shell: polyester, glass fiber reinforced, self-extinguishing (UL94V-0) * contact material: Cu-alloy * cotact surface: nickel, gold-plated * housing frame: steel plate, nickel layer and tin-plated * operating temperature range: -55...+125°C

Discontinued items. Only remainder of stock available.

Specifications

manufacturer
Manufacturer's name 163A11099X
Number of poles 37

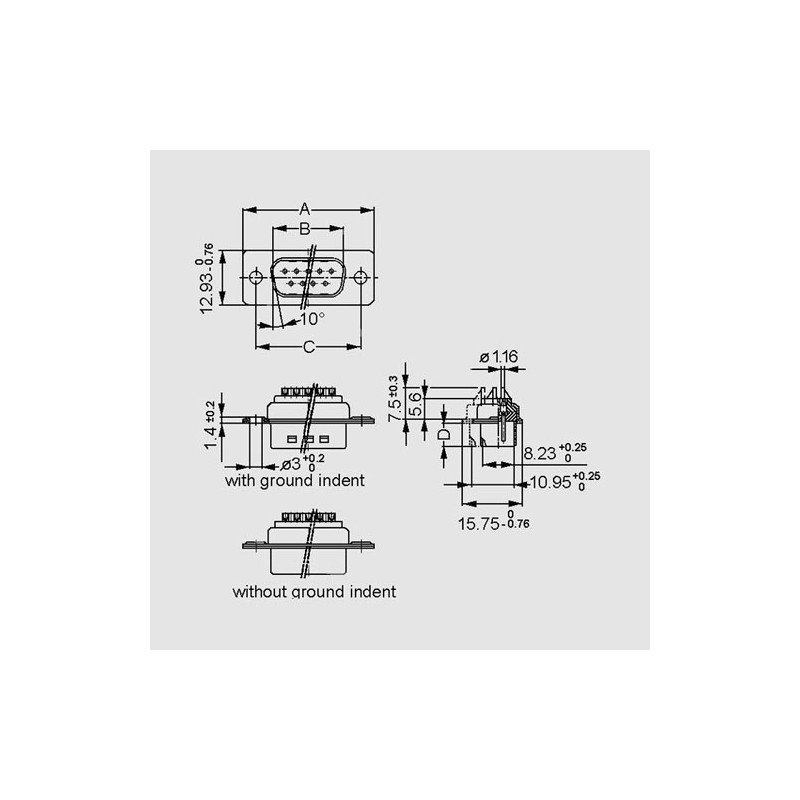

A [mm] 69,7
Width [mm] 55,3
D [mm] -
C [mm] 63,5

Unit price

5,89 €

Stock: 72
Next incoming goods:
CW 34/2026
100 units

Minimum order quantity 1 to 2 units or multiples of 5 plus 0 to 2 .
