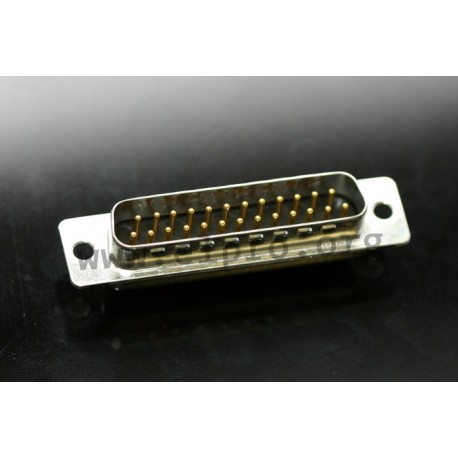

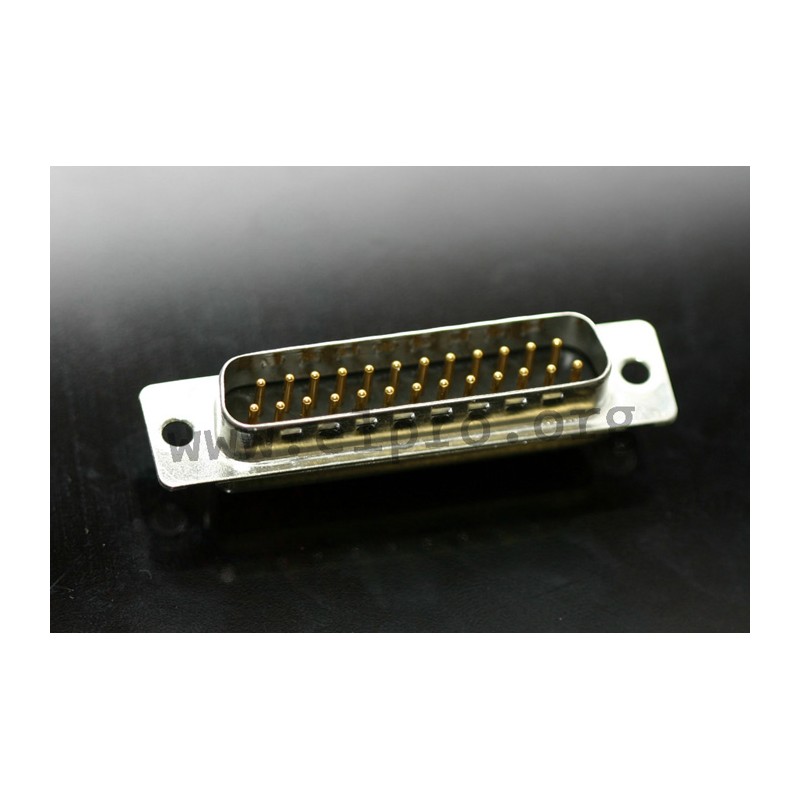

DS 25 P-A

high quality version

* DS_P-L: solder buckets
* DS_P-P: solder pins
* DS_P-A: 90° angled

* machined contacts
* insulating shell: polyester, glass fiber reinforced, self-extinguishing (UL94V-0)
* contact material: Cu-alloy
* cotact surface: nickel, gold-plated
* housing frame: steel plate, nickel layer and tin-plated
* operating temperature range: -55...+125°C

DS 25 P_

DS 25 P-A

28221 DS 25 P-A 163A11239X 163A11239X high quality version. * DS_P-L: solder buckets * DS_P-P: solder pins * DS_P-A: 90° angled * machined contacts * insulating shell: polyester, glass fiber reinforced, self-extinguishing (UL94V-0) * contact material: Cu-alloy * cotact surface: nickel, gold-plated * housing frame: steel plate, nickel layer and tin-plated * operating temperature range: -55...+125°C

Discontinued items. Only remainder of stock available.

Specifications

manufacturer
Manufacturer's name 163A11239X
Number of poles 25

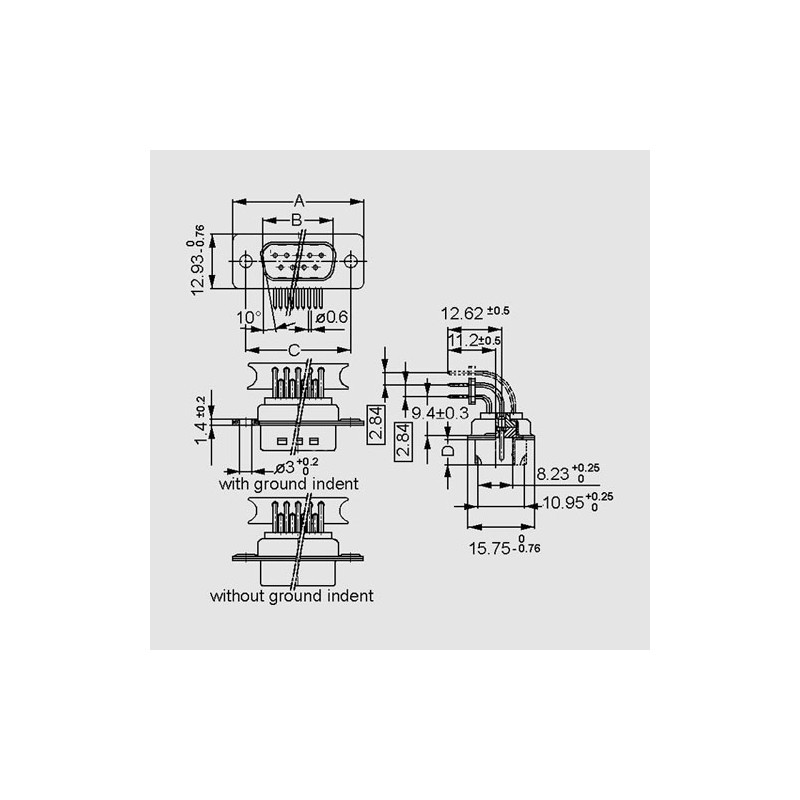

A [mm] 53,42
Width [mm] 38,84
D [mm] 5,99
C [mm] 47,04

Unit price

5,99 €

Stock: 218

Minimum order quantity 1 to 3 units or multiples of 5 plus 0 to 3 .
