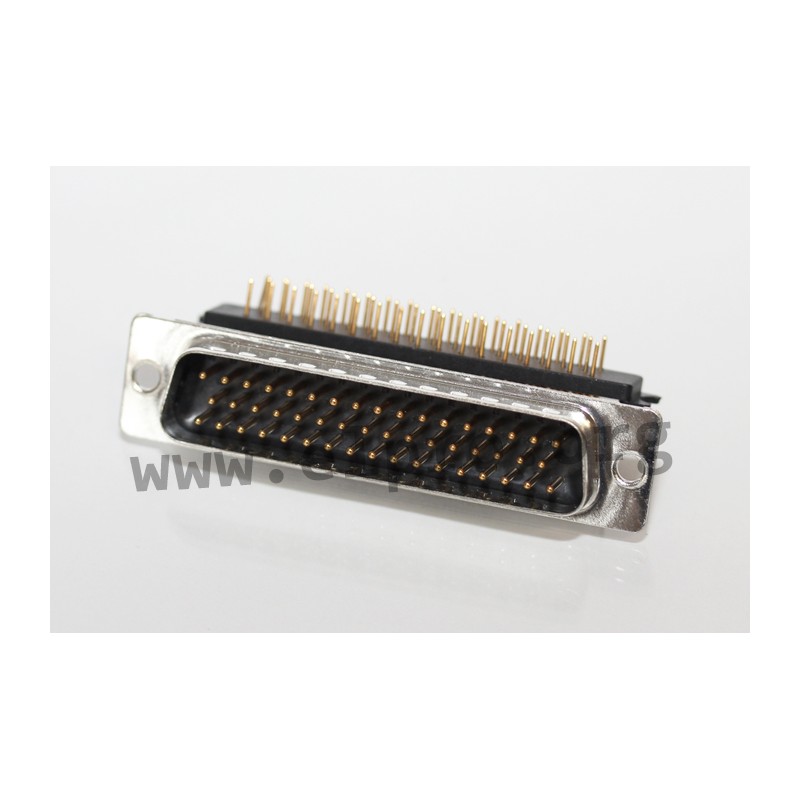

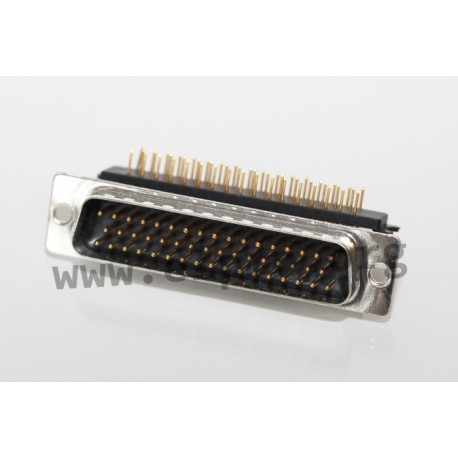

DS 50 P-A

high quality version

* DS_P-L: solder buckets
* DS_P-P: solder pins
* DS_P-A: 90° angled

* machined contacts
* insulating shell: polyester, glass fiber reinforced, self-extinguishing (UL94V-0)
* contact material: Cu-alloy
* cotact surface: nickel, gold-plated
* housing frame: steel plate, nickel layer and tin-plated
* operating temperature range: -55...+125°C

DS 50 P-A

DS 50 P-A

28231 DS 50 P-A 163A11259X 163A11259X high quality version. * DS_P-L: solder buckets * DS_P-P: solder pins * DS_P-A: 90° angled * machined contacts * insulating shell: polyester, glass fiber reinforced, self-extinguishing (UL94V-0) * contact material: Cu-alloy * cotact surface: nickel, gold-plated * housing frame: steel plate, nickel layer and tin-plated * operating temperature range: -55...+125°C

Discontinued items. Only remainder of stock available.

Specifications

manufacturer
Manufacturer's name 163A11259X
Number of poles 50
A [mm] 67,31
Width [mm] 52,68
D [mm] 5,99
C [mm] 61,1

Unit price

10,19 €

Stock: 61

Minimum order quantity 1 unit or multiples of 5 plus 0 to 1 .
