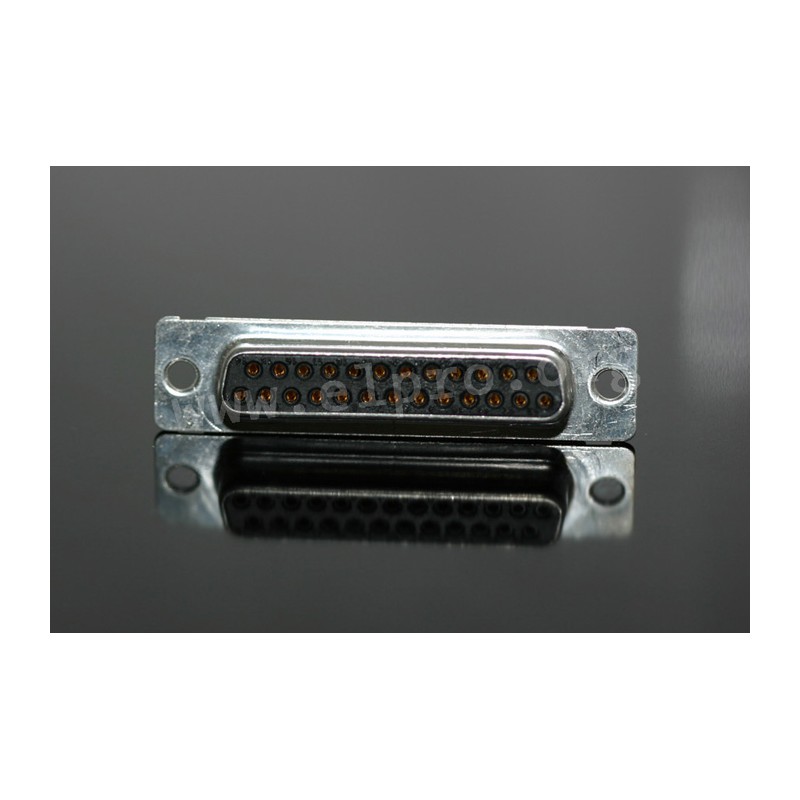

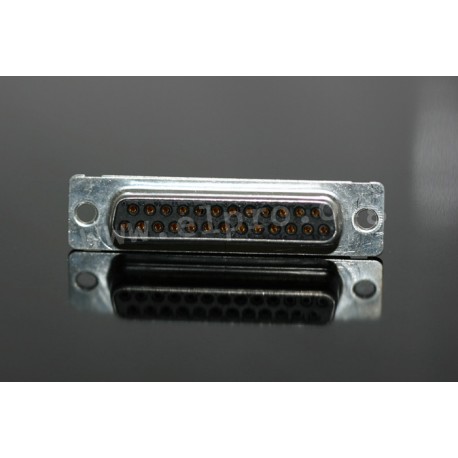

DF 25 P-L

high-quality version

* DF_P-L: solder buckets
* DF_P-P: solder pins
* DF_P-A: 90° angled

* machined contacts
* insulating shell: polyester, glass fiber reinforced, self-extinguishing nach UL94V-0
* contacts: Cu-alloy
* contact surface: gold over nickel
* housing frame: steel plate, nickel layer and tin-plated
* operating temperature range: -55...+125°C

DF 25 P_

DF 25 P-L

28211 DF 25 P-L 164A10039X 164A10039X high-quality version. * DF_P-L: solder buckets * DF_P-P: solder pins * DF_P-A: 90° angled * machined contacts * insulating shell: polyester, glass fiber reinforced, self-extinguishing nach UL94V-0 * contacts: Cu-alloy * contact surface: gold over nickel * housing frame: steel plate, nickel layer and tin-plated * operating temperature range: -55...+125°C

Discontinued items. Only remainder of stock available.

Specifications

manufacturer
Manufacturer's name 164A10039X
Number of poles 25

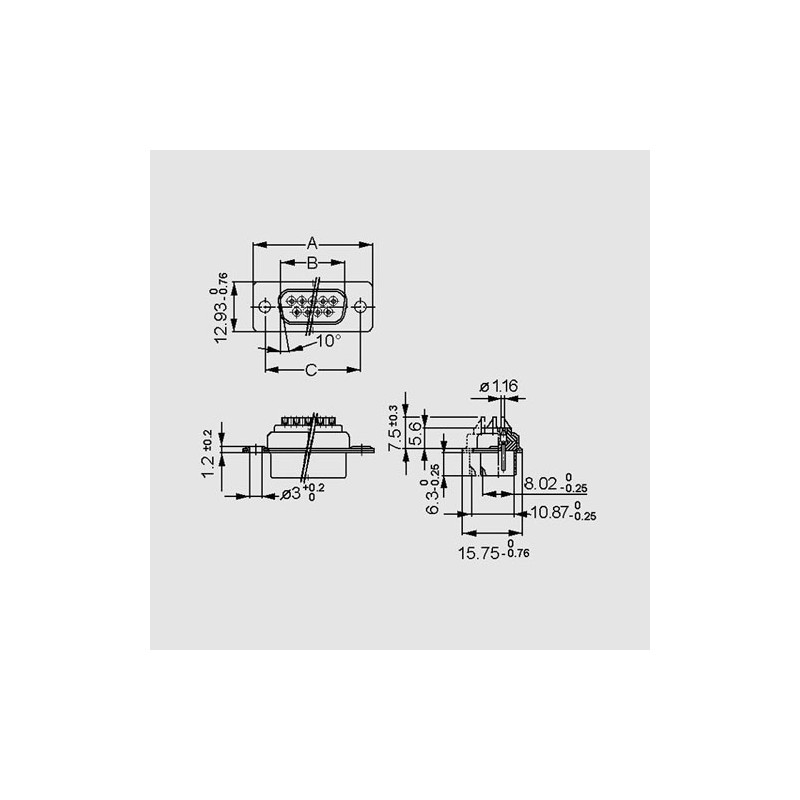

A [mm] 53,42
Width [mm] 38,5
C [mm] 47,04

Unit price

3,19 €

Stock: 1

Minimum order quantity 1 unit or multiples of 5 plus 0 to 1 .
