165X10139XE

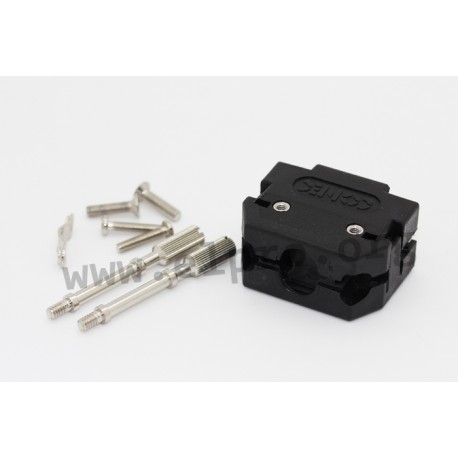

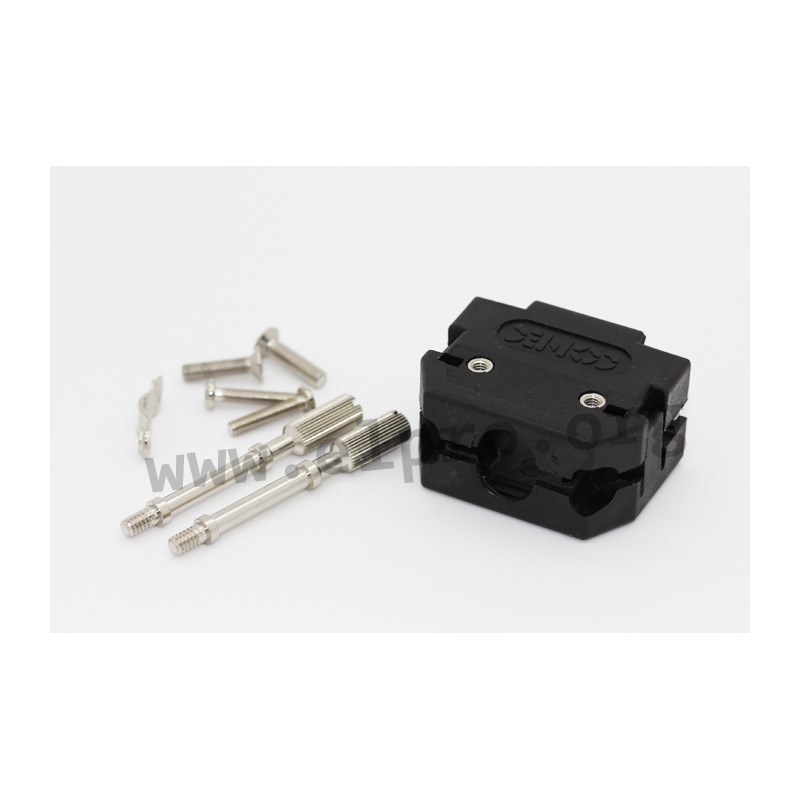

D-sub plastic backshells by Conec

Two-piece hoods made of ABS (UL94V-0) with integrated cable clamping and a straight cable entry. They have secure screws and a strain relief.

We are offering the following types by manufacturer Conec: 165X10189XE, 165X10199XE, 165X10139XE, 165X10149XE, 165X10159XE, 165X10169XE and 165X10179XE.

* with retaining screws UNC4-40

165X10139XE

165X10139XE

110826 165X10139XE 165X10139XE D-sub plastic backshells by Conec. Two-piece hoods made of ABS (UL94V-0) with integrated cable clamping and a straight cable entry. They have secure screws and a strain relief. We are offering the following types by manufacturer Conec: 165X10189XE, 165X10199XE, 165X10139XE, 165X10149XE, 165X10159XE, 165X10169XE and 165X10179XE. * with retaining screws UNC4-40

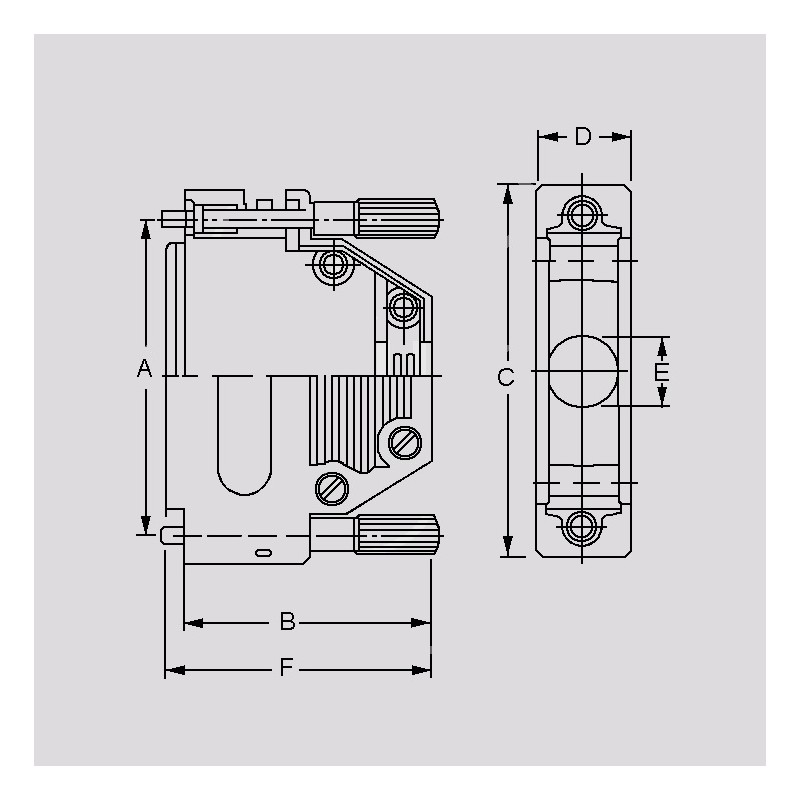

Specifications

manufacturer
Manufacturer's name 165X10139XE
E [mm] 8,5
Number of poles 9
A [mm] 25
F [mm] 27,5
D [mm] 14,5
B [mm] 25
C [mm] 34
Data Sheet

Unit price

2,29 €

Stock: 0
Next incoming goods:
CW 01/2026
20 units

Further delivery:
CW 09/2026

Minimum order quantity 10 units or
multiples of 10.
