DF 05+2 L

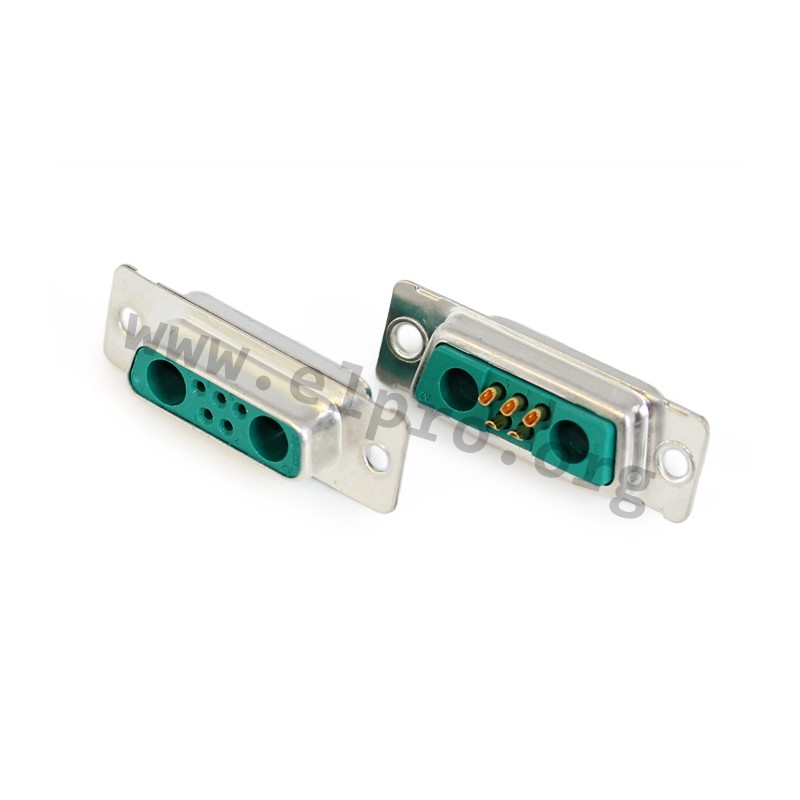

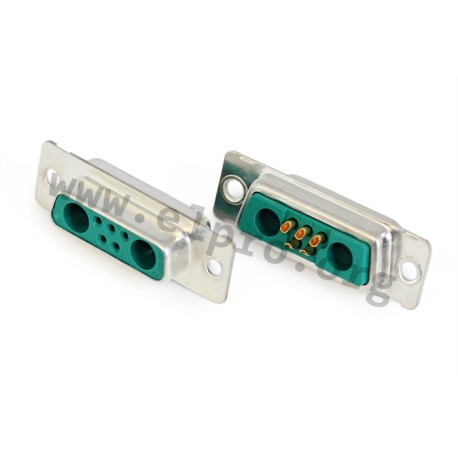

combi D-Sub sockets

• combination D-Sub plug connector for various applications

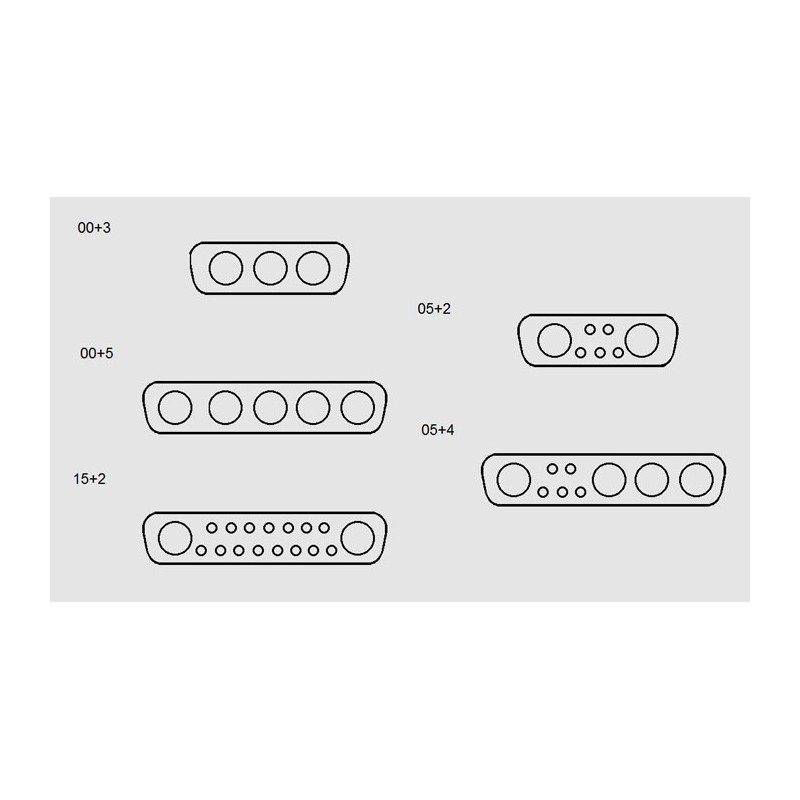

• within the D-Sub plug connector there are indented holes for special contacts such as signal, high current and coaxial contacts
• insulating shell: PBTP, glass-filled, UL94V-0
• contacts: Cu-alloy
• contact surface: gold over nickel
• housing frame: steel, tin-plated
• operating temperature range: -55...+125°C

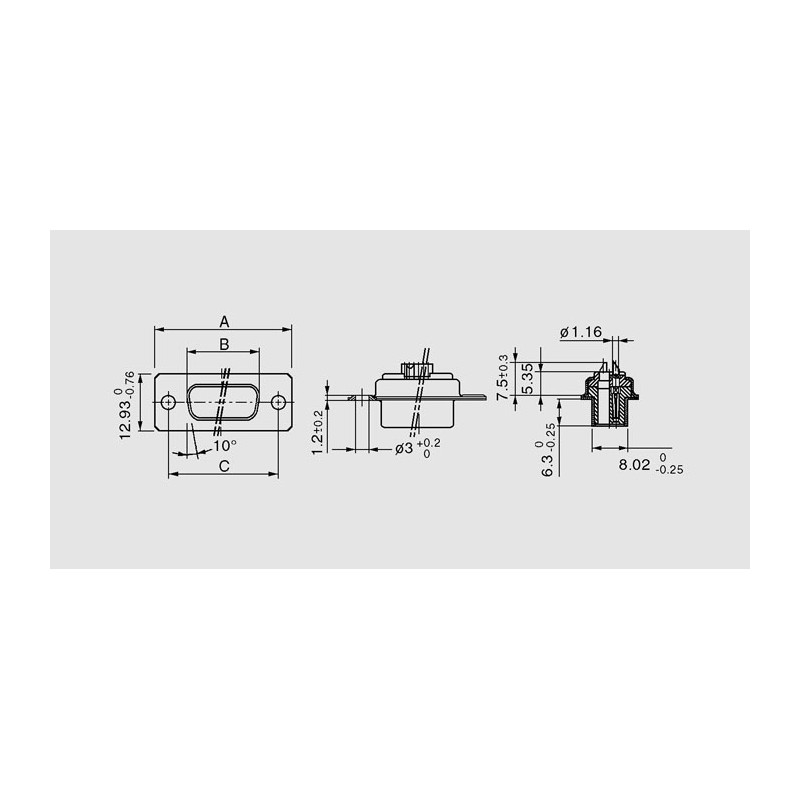

• dimensions: A=53.42mm, B=38.84mm, C=47.04mm

DF 05+2 L

28214 DF 05+2 L 3007W2SCM99A10X 3007W2SCM99A10X combi D-Sub sockets. • combination D-Sub plug connector for various applications• within the D-Sub plug connector there are indented holes for special contacts such as signal, high current and coaxial contacts• insulating shell: PBTP, glass-filled, UL94V-0• contacts: Cu-alloy• contact surface: gold over nickel• housing frame: steel, tin-plated• operating temperature range: -55...+125°C• dimensions: A=53.42mm, B=38.84mm, C=47.04mm

Data sheet

manufacturer
manufacturer's name 3007W2SCM99A10X

6,79 €

Volume discounts

5 pcs. / 2,49 €

stock: 1790
