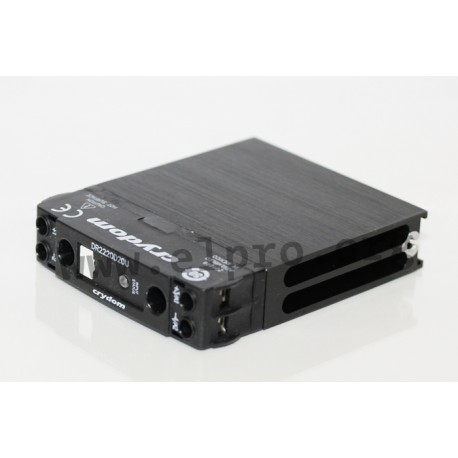

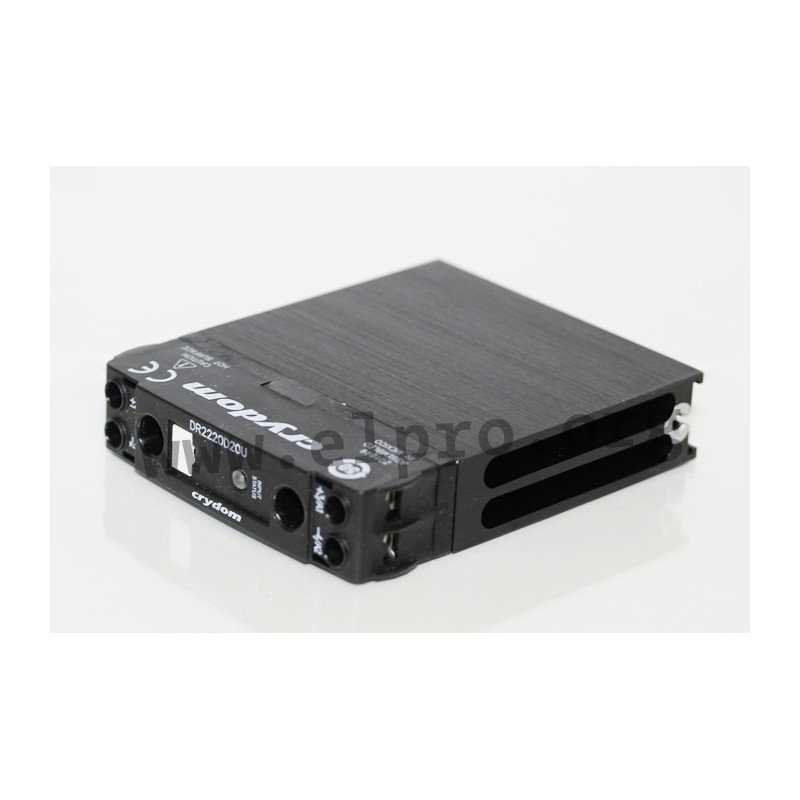

DR22 20D20U

electronic solid state relays, 20 A

* housing: for DIN rail
* for DC voltage
* MOSFET output
* series DR22 20_  by Crydom
* 3.75 kV insulation voltage
* operating temperature:up -40 to +80°C

DR22 20D20U

DR22 20D20U

107314 DR22 20D20U DR2220D20U DR2220D20U electronic solid state relays, 20 A. * housing: for DIN rail* for DC voltage* MOSFET output* series DR22 20_  by Crydom* 3.75 kV insulation voltage* operating temperature:up -40 to +80°C

Specifications

manufacturer
Manufacturer's name DR2220D20U
Non repetitive surge peak on-state current [A] 58
Forward current, max. [A] 20
Control voltage [V] 4...32
Load voltage [V] 1...200
Data Sheet

Unit price

109,89 €

Stock: 28
Further delivery:
CW 22/2026
