15EDGK-3.5-16P-14-00A(H)

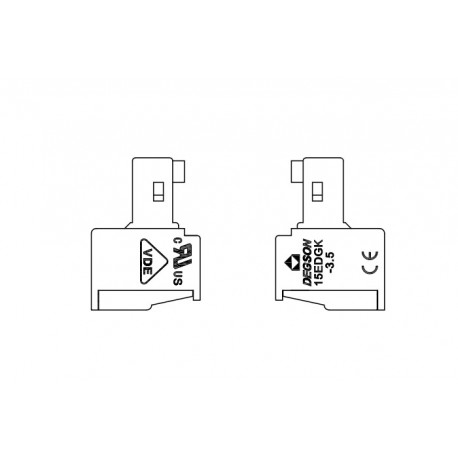

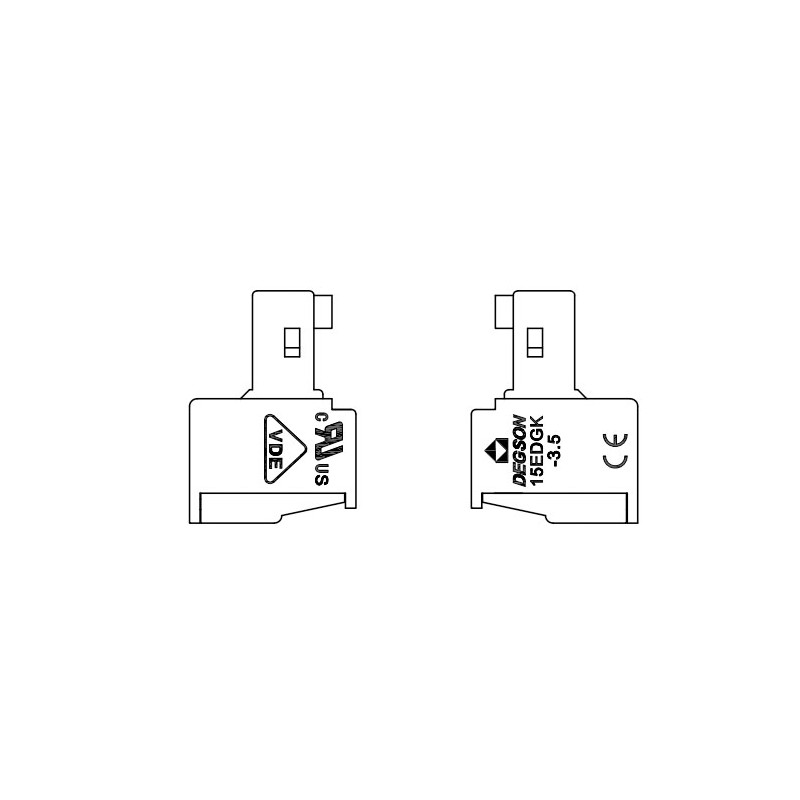

Degson terminal multiconnector series 15EDGK-3.5

  • 2- to 20-pole multiconnectors in green
  • screw-cage clamp principle
  • suitable for a conductor cross-section of 0,5 to 1,5mm2
  • insulator made of PA (UL94V-0)
  • rated voltage: 250V
  • rated current: 7A
  • pitch: 3,5mm

Matching box headers

15EDGK-3.5-16P-14-00A(H)

241085 15EDGK-3.5-16P-14-00A(H) 15EDGK-3.5-16P-14-00A(H) Degson terminal multiconnector series 15EDGK-3.5. 2- to 20-pole multiconnectors in green screw-cage clamp principle suitable for a conductor cross-section of 0,5 to 1,5mm2 insulator made of PA (UL94V-0) rated voltage: 250V rated current: 7A pitch: 3,5mm Matching box headers

Specifications

manufacturer
Manufacturer's name 15EDGK-3.5-1...
Number of poles 16
Data Sheet

Unit price

2,39 €

Stock: 650
Further delivery:
CW 30/2024

Minimum order quantity 50 units or
multiples of 50.
