15EDGKD-2.5-04P-14-00A(H)

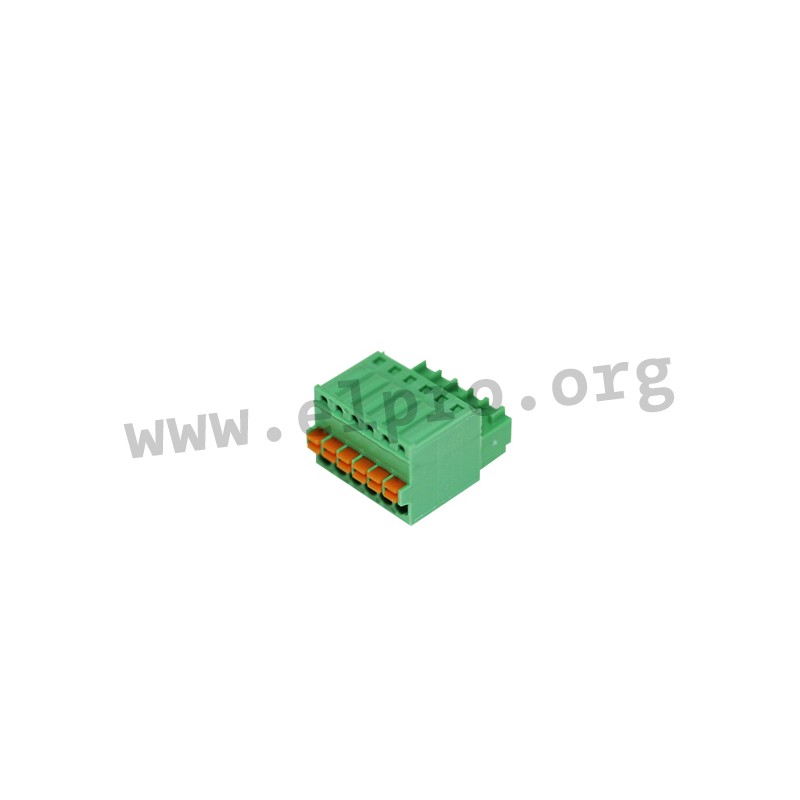

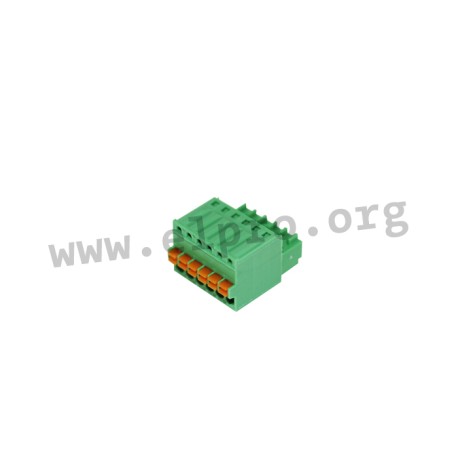

Degson terminal multiconnector series 15EDGKD-2.5

2- to 12-pole terminal multiconnectors in green with a push-in spring connection. these terminal blocks are suitable for a wire cross section of 0,2 to 0,5mm² and have a wire-to-board connector system. They are made of PA66 (UL94V-0) and have a wire stripping length of 8mm. We offer the following types of this Degson series: 15EDGKD-2.5-02P-14-00A(H), 15EDGKD-2.5-03P-14-00A(H), 15EDGKD-2.5-04P-14-00A(H), 15EDGKD-2.5-05P-14-00A(H), 15EDGKD-2.5-06P-14-00A(H), 15EDGKD-2.5-08P-14-00A(H), 15EDGKD-2.5-10P-14-00A(H) and 15EDGKD-2.5-12P-14-00A(H).

  • pitch: 2,5mm
  • number of poles: 2 to 12
  • rated voltage: 250V
  • rated current: 5A
  • wire stripping length: 8mm
  • wire cross section: 0,2 to 0,5mm²
  • operating temperature: -40 to +105°C

15EDGKD-2.5-04P-14-00A(H)

243425 15EDGKD-2.5-04P-14-00A(H) 15EDGKD-2.5-04P-14-00A(H) Degson terminal multiconnector series 15EDGKD-2.5. 2- to 12-pole terminal multiconnectors in green with a push-in spring connection. these terminal blocks are suitable for a wire cross section of 0,2 to 0,5mm² and have a wire-to-board connector system. They are made of PA66 (UL94V-0) and have a wire stripping length of 8mm. We offer the following types of this Degson series: 15EDGKD-2.5-02P-14-00A(H), 15EDGKD-2.5-03P-14-00A(H), 15EDGKD-2.5-04P-14-00A(H), 15EDGKD-2.5-05P-14-00A(H), 15EDGKD-2.5-06P-14-00A(H), 15EDGKD-2.5-08P-14-00A(H), 15EDGKD-2.5-10P-14-00A(H) and 15EDGKD-2.5-12P-14-00A(H). pitch: 2,5mm number of poles: 2 to 12 rated voltage: 250V rated current: 5A wire stripping length: 8mm wire cross section: 0,2 to 0,5mm² operating temperature: -40 to +105°C

Specifications

manufacturer
Manufacturer's name 15EDGKD-2.5-...
Number of poles 4
Data Sheet

Unit price

1,12 €

Stock: 100
Further delivery:
CW 08/2025

Minimum order quantity 50 units or
multiples of 50.
