DG500-5.08-02P-14-00AH

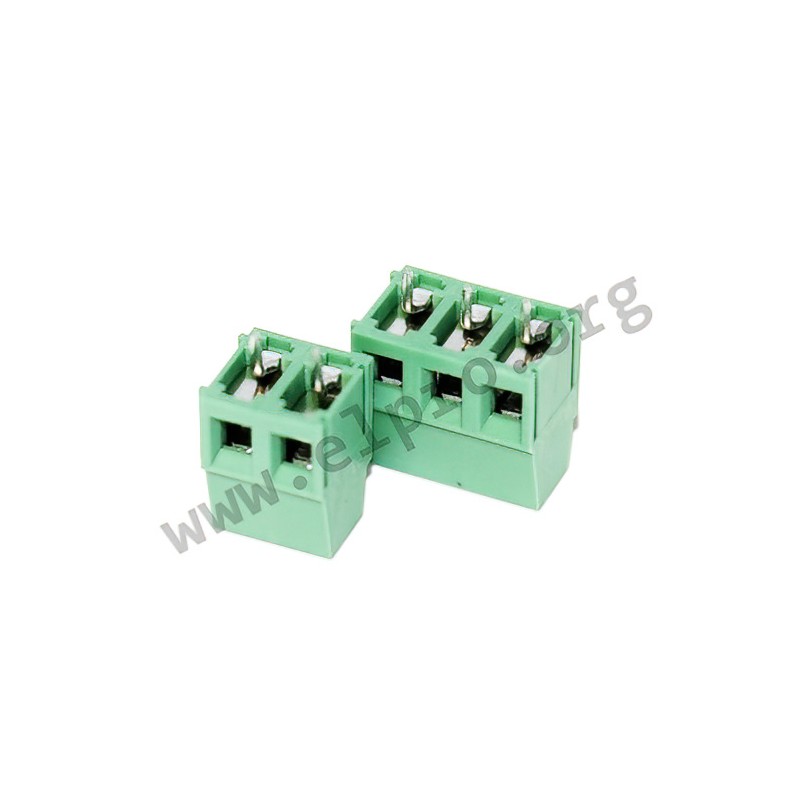

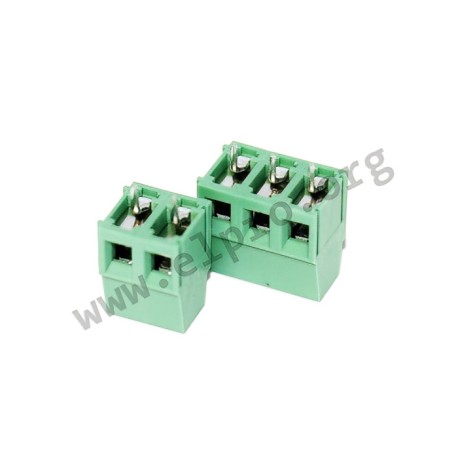

Degson terminal block series DG500-5.08

  • 2- and 3-pole terminal blocks in green
  • with a side wire entry
  • screw-cage clamp principle
  • insulator made of PA (UL94V-0)
  • suitable for a conductor cross-section of 2,5mm²
  • rated voltage: 250V AC
  • rated current: 18A
  • pitch: 5,08mm

DG500-5.08-02P-14-00AH

234724 DG500-5.08-02P-14-00AH DG500-5.08-02P-14-00A(H) DG500-5.08-02P-14-00A(H) Degson terminal block series DG500-5.08. 2- and 3-pole terminal blocks in green with a side wire entry screw-cage clamp principle insulator made of PA (UL94V-0) suitable for a conductor cross-section of 2,5mm² rated voltage: 250V AC rated current: 18A pitch: 5,08mm

Specifications

manufacturer
Manufacturer's name DG500-5.08-0...
Colour green
Number of poles 2
Dimensions [mm] 10,16x10x14
Data Sheet

Unit price

0,235 €

Stock: 3000
Further delivery:
CW 34/2024

Minimum order quantity 50 units or
multiples of 50.
