> Passive elements>Electroacoustics>Microphone capsules>diameter: 9.7mm, Elektret with FET>MIC 1

Manufacturers

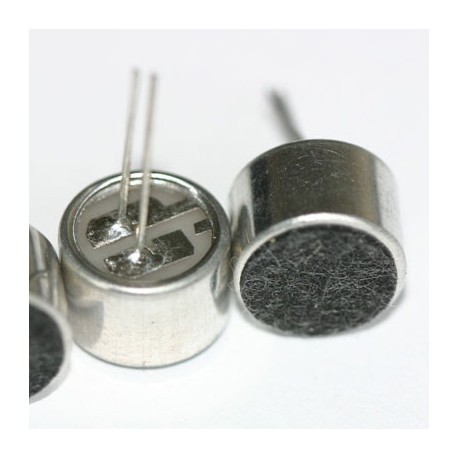

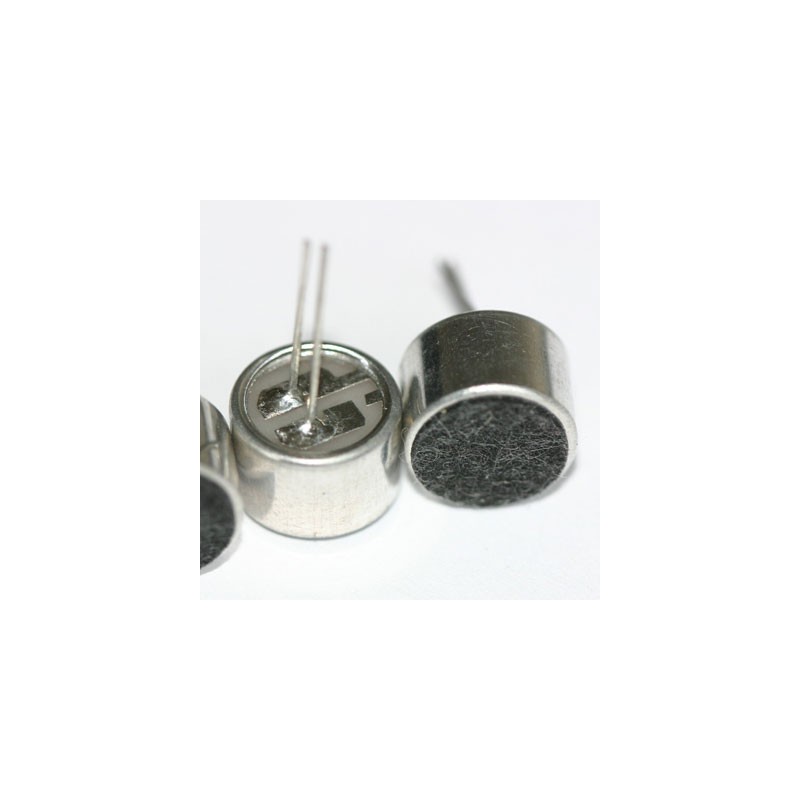

MIC 1

electret condenser microphones

* miniature version with built-in FET
* omnidirectional microphone
* for PCB assembly, pitch 2.5mm
* frequency range: 50...10000Hz
* sensitivity: 5.6mV/Pa/1kHz
* output impedance: 2kW
* signal/noise ratio: >34dB
* current consumption: <0.5mA
* blocking capacitor: 0.1...4.7µF
* permissible application temperature: 0...+40°C
* operating voltage Range, max.: 1.5...10V DC/0.5mA
MIC 1

MIC 1

17655 MIC 1 MIC 1 electret condenser microphones. * miniature version with built-in FET* omnidirectional microphone* for PCB assembly, pitch 2.5mm* frequency range: 50...10000Hz* sensitivity: 5.6mV/Pa/1kHz* output impedance: 2kW* signal/noise ratio: &gt;34dB* current consumption: &lt;0.5mA* blocking capacitor: 0.1...4.7µF* permissible application temperature: 0...+40°C* operating voltage Range, max.: 1.5...10V DC/0.5mA

Discontinued items. Only remainder of stock available.

Specifications

Unit price

0,99 €

Stock: 2
