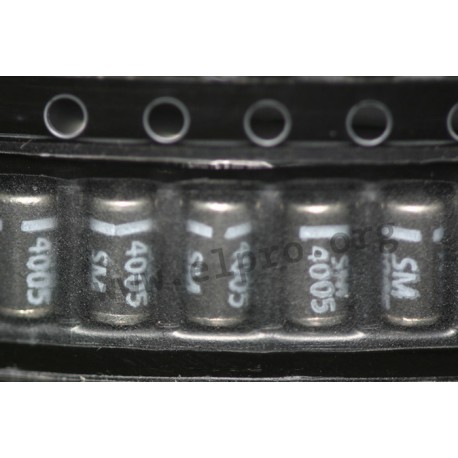

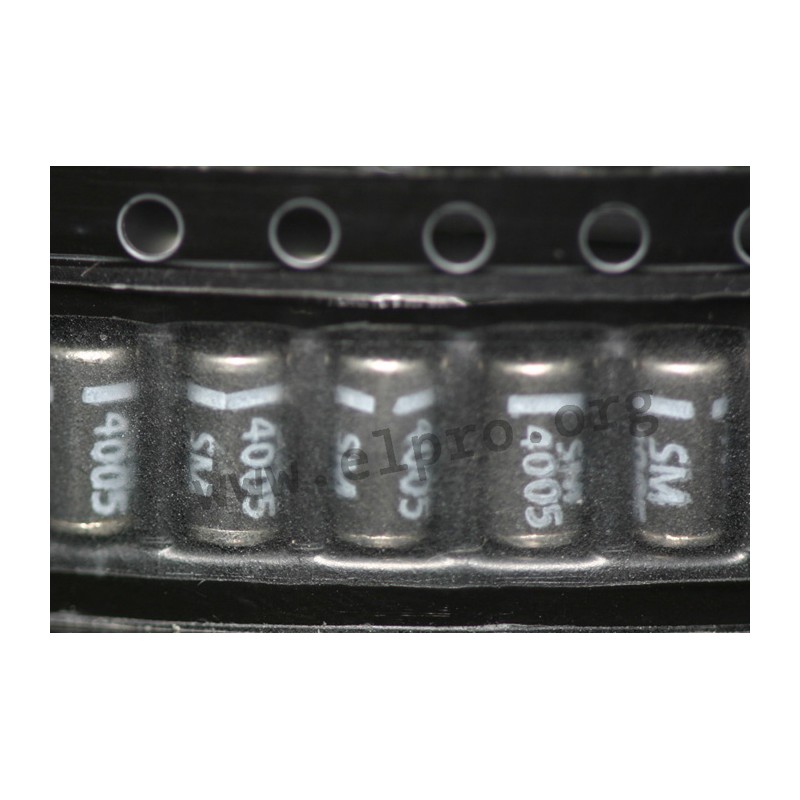

SM 4005 SMD

Diotec SMD rectifier diode series SM

  • SMD Si-rectifier diodes
  • in a DO213AB housing
  • with a high forward surge current
  • comply with UL94V-0
  • forward current: 1A

SM 4005 SMD

614 SM 4005 SMD SM4005 SM4005 Diotec SMD rectifier diode series SM. SMD Si-rectifier diodes in a DO213AB housing with a high forward surge current comply with UL94V-0 forward current: 1A

Data sheet

manufacturer
manufacturer's name SM4005

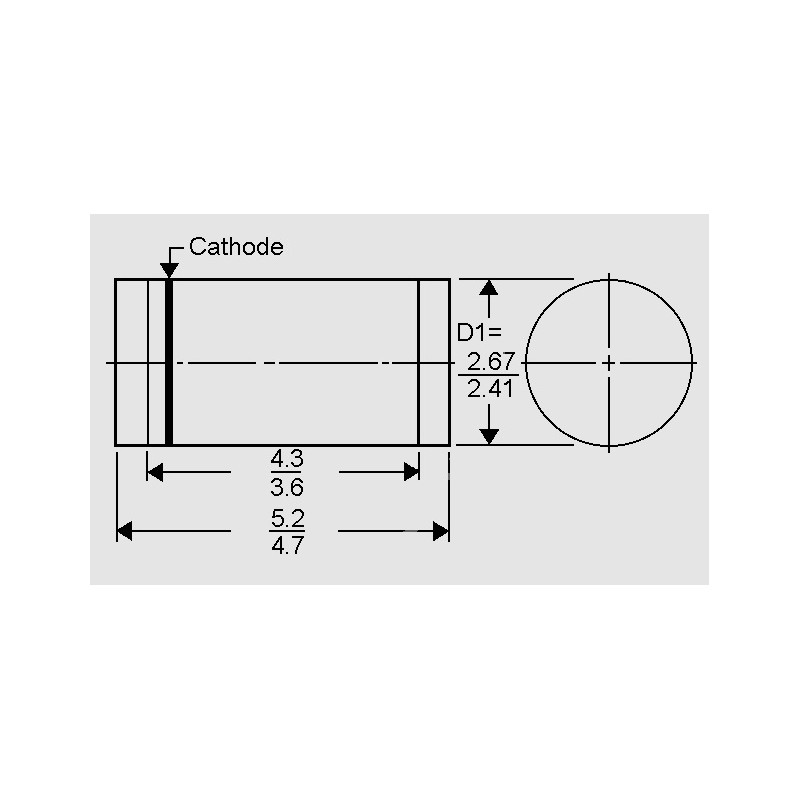

case DO213AB
operating temperature range [°C] -65...+150
(max.) peak recurrent reverse voltage [V] 600
forward voltage [V] 1,1
(max.) average forward (rectified) current [A] 1
reverse current [µA] 5

Download

Data Sheet

0,69 €

Volume discounts

500 pcs. / 0,035 €
100 pcs. / 0,10 €

stock: 15760
