111.3763.2B.00

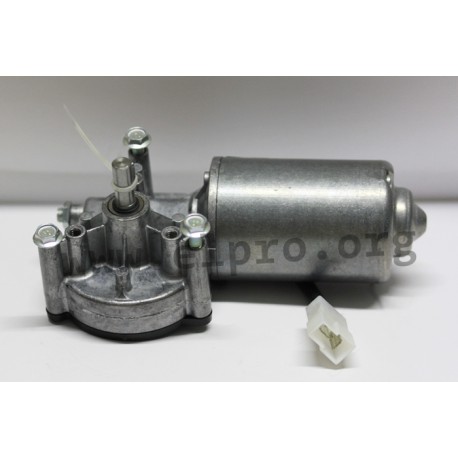

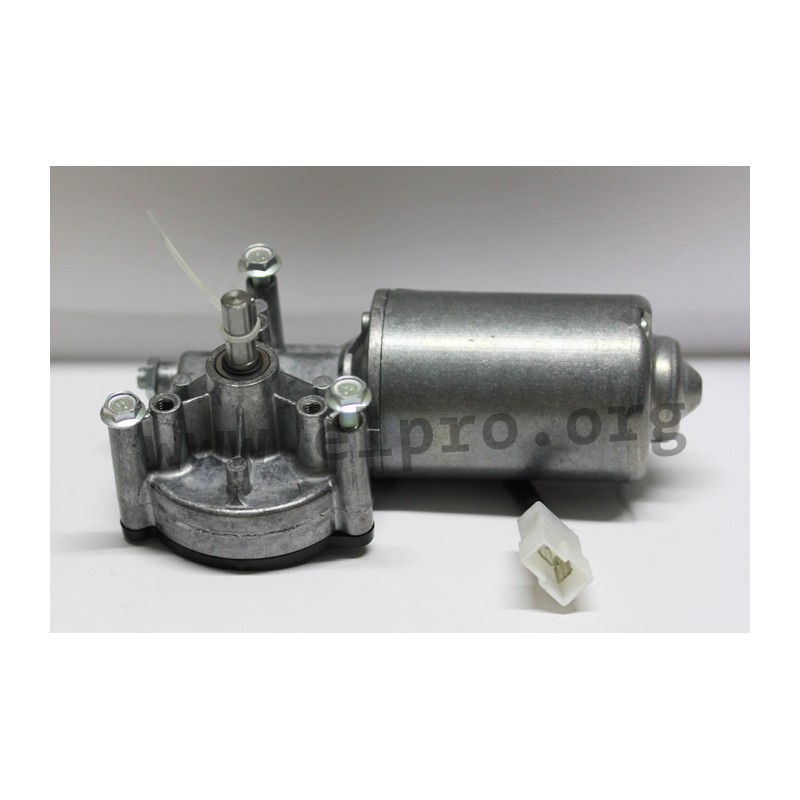

DC geared motors series 111 by Doga

• DC Gear Motor: 48W
• with worm gear
• quiet running
• IP53 protection


• short stop time
• by Doga
• weight: 1.25kg

111.3763.2B.00

38314 111.3763.2B.00 DO11137632B00/5073 DO11137632B00/5073 DC geared motors series 111 by Doga. • DC Gear Motor: 48W• with worm gear• quiet running• IP53 protection • short stop time• by Doga• weight: 1.25kg

Specifications

manufacturer
Manufacturer's name DO11137632B00/5073
Starting current [A] 15
NO-load-speed [rpm] 25
Starting torque [Nm] 25
Rated torque [Nm] 6
Rated current [A] 4
NO-load-speed 25

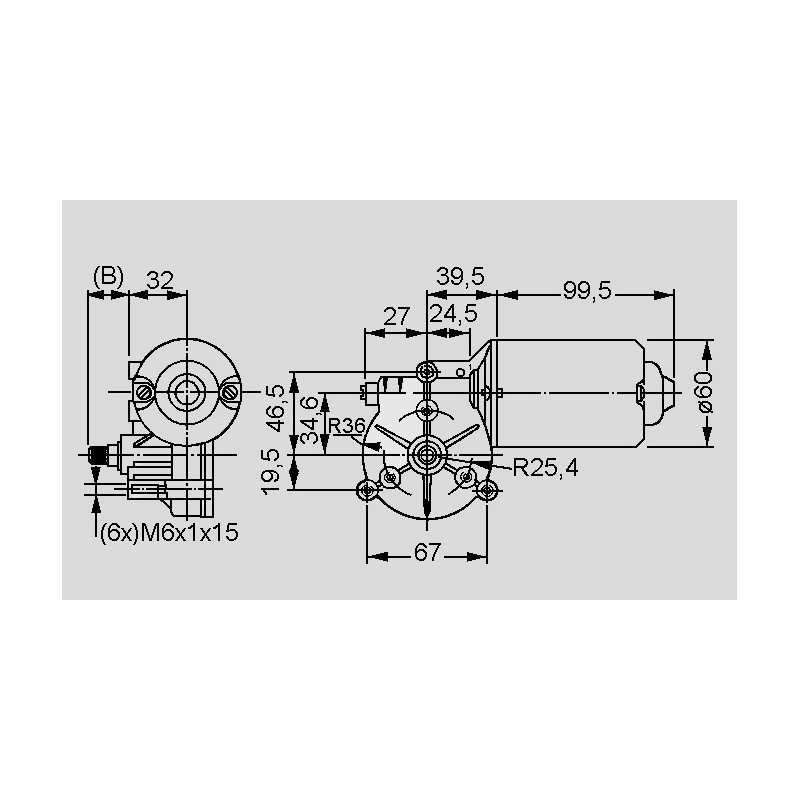

Data Sheet

Unit price

119,79 €

Stock: 3
Further delivery:
CW 31/2024
