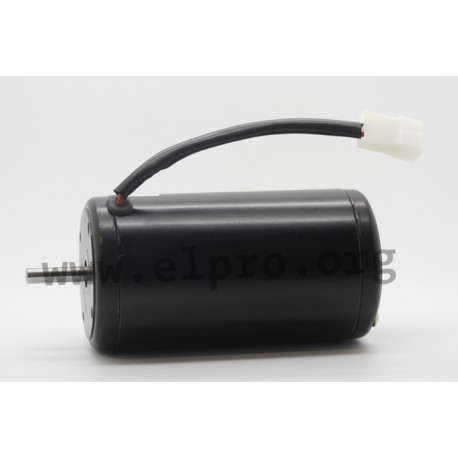

168.4111.3B.04

DC-motors series 168 by Doga

• DC-Motor 24V 132W
• quiet running
• IP40 protection


• short stop time
• by Doga
• weight: 2.6kg

168.4111.3B.04

38311 168.4111.3B.04 DO16841113B04/5077 DO16841113B04/5077 DC-motors series 168 by Doga. • DC-Motor 24V 132W• quiet running• IP40 protection • short stop time• by Doga• weight: 2.6kg

Specifications

manufacturer
Manufacturer's name DO16841113B04/5077
Starting current [A] 18
NO-load-speed [rpm] 1000
Starting torque [Nm] 2,8
Rated torque [Nm] 0,75
Rated current [A] 5,5
NO-load-speed 1000
Data Sheet

Unit price

167,69 €

Stock: 1
Further delivery:
CW 31/2024
