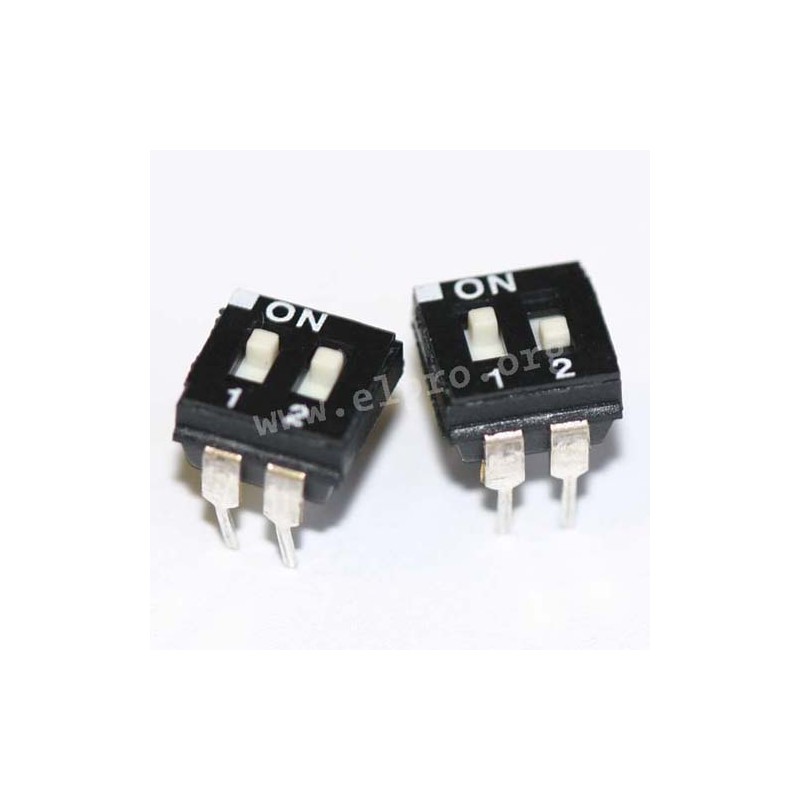

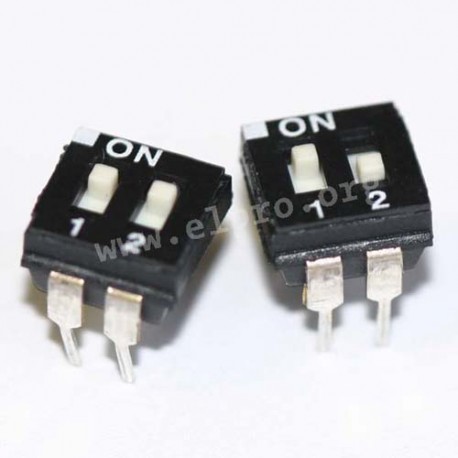

DI 02 H

code switch, IC version

* can be assembled by any automatic IC inserter
* extended actuator
* bottom epoxy sealed against flux immersion
* switching capability: 25mA/24V DC
* transmission current: 100mA/50V DC
* contact resistance, max.
new state: 50mΩ
after operating life test: 100mΩ
* insulation resistance (100V DC), min.: 1000MΩ
* dielectric strength, min.: 500V DC/1min.
* capacity of adjacent switch, max.: 5pF
* insulation shell: UL94V-0, black
* solder pin: tin-plated
* contact finish: gold over nickel
* operating temperature: -25...+70°C
* operating force, max.: 800g
* switching capability: 2000 operations
* air humidity: 95% RH, 40°C/96h
* vibration test: MIL-STD-202F, method 204D

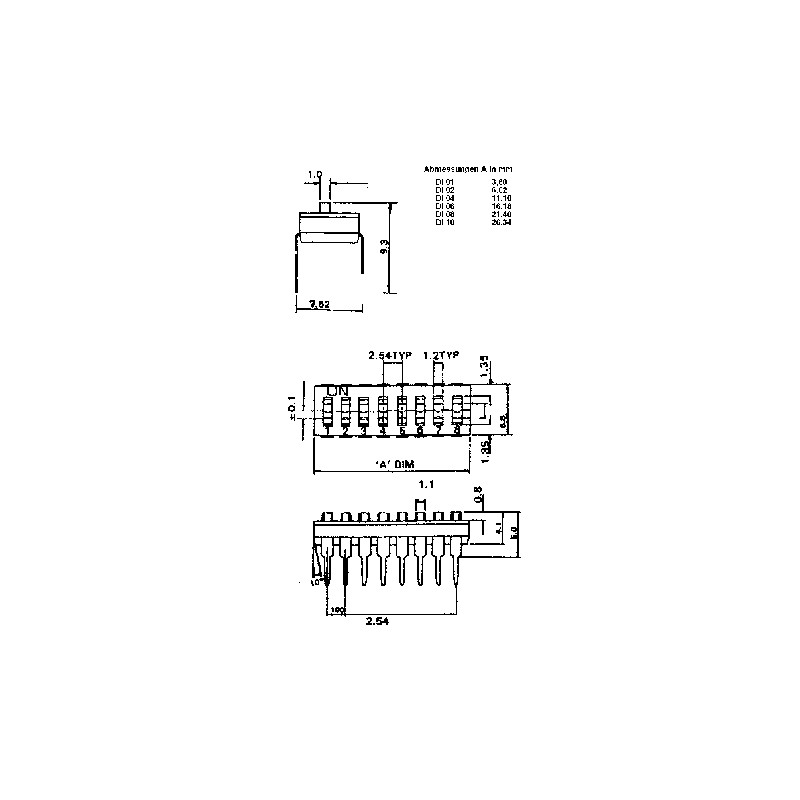

* pitch: 2.54mm
* spacing between rows: 7.62mm
DI 02 H

DI 02 H

13180 DI 02 H EAH-102-EZ EAH-102-EZ code switch, IC version. * can be assembled by any automatic IC inserter* extended actuator* bottom epoxy sealed against flux immersion* switching capability: 25mA/24V DC* transmission current: 100mA/50V DC* contact resistance, max.new state: 50mΩafter operating life test: 100mΩ* insulation resistance (100V DC), min.: 1000MΩ* dielectric strength, min.: 500V DC/1min.* capacity of adjacent switch, max.: 5pF* insulation shell: UL94V-0, black* solder pin: tin-plated * contact finish: gold over nickel* operating temperature: -25...+70°C* operating force, max.: 800g* switching capability: 2000 operations* air humidity: 95% RH, 40°C/96h* vibration test: MIL-STD-202F, method 204D* pitch: 2.54mm * spacing between rows: 7.62mm

Discontinued items. Only remainder of stock available.

Specifications

manufacturer
Manufacturer's name EAH-102-EZ

Unit price

0,53 €

Stock: 13

Minimum order quantity 1 to 13 units or multiples of 24 plus 0 to 13 .
