ERF SD 8V 1,1A

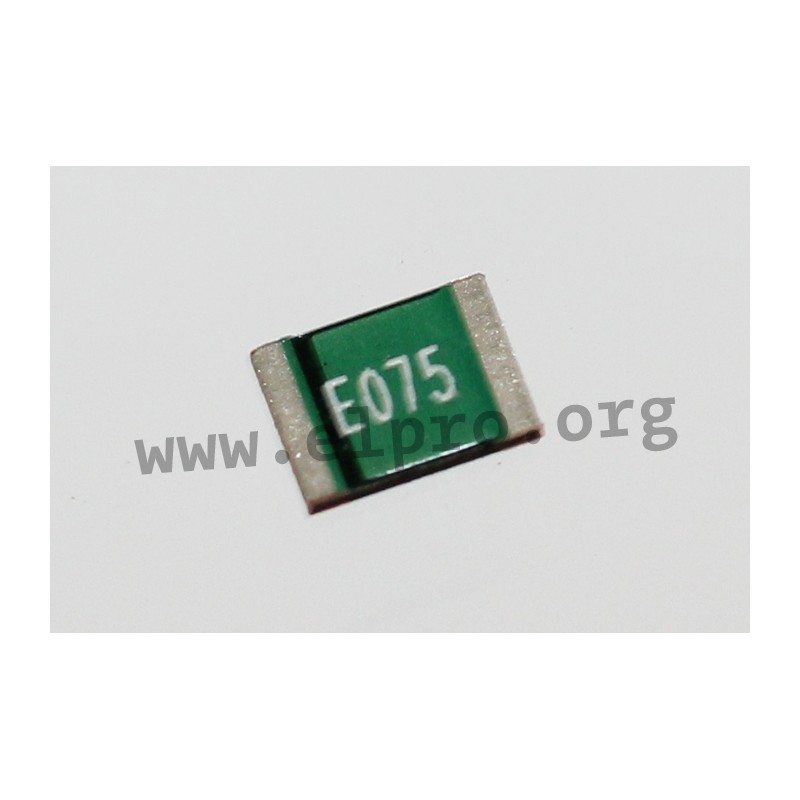

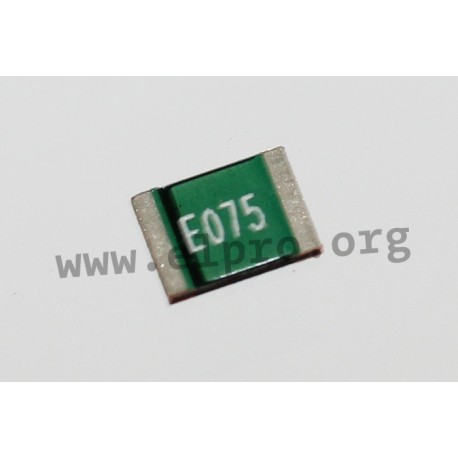

PTC SMD-fuses ERFSD by ECE

• rated current: 0.14 to 1.5A
• housing: 1812 (4.73x3.41mm)
• style: taped
• rated current: 0.14 to 1.5A
• resettable switching device
• low current loss due to a low resistance in normal use
• protection against overcurrent and short circuit. The mode of action is based on the PTC effect. In standard use, the resistance of the device is very low so that only a small power loss arises. In the event of an error, short-circuit or overcurrent, the resistance value of this device increases and protects the equipment. After eliminating the error and switching off the supply voltage, the device quickly returns to a low impedance state.
• Ideal for use in PC cards for computer telecom applications and general electronics.
• terminal pad material: tin-plated copper
• typ. power rating: 0.8W, ERFSD1501220Z: 1W
• temperature range: up -40 to +85°C

ERF SD_

ERF SD 8V 1,1A

46357 ERF SD 8V 1,1A ERFSD1100820Z ERFSD1100820Z PTC SMD-fuses ERFSD by ECE. • rated current: 0.14 to 1.5A• housing: 1812 (4.73x3.41mm)• style: taped• rated current: 0.14 to 1.5A• resettable switching device• low current loss due to a low resistance in normal use• protection against overcurrent and short circuit. The mode of action is based on the PTC effect. In standard use, the resistance of the device is very low so that only a small power loss arises. In the event of an error, short-circuit or overcurrent, the resistance value of this device increases and protects the equipment. After eliminating the error and switching off the supply voltage, the device quickly returns to a low impedance state.• Ideal for use in PC cards for computer telecom applications and general electronics.• terminal pad material: tin-plated copper• typ. power rating: 0.8W, ERFSD1501220Z: 1W• temperature range: up -40 to +85°C

Discontinued items. Only remainder of stock available.

Specifications

manufacturer
Manufacturer's name ERFSD1100820Z
Case 1812
1 hour post-trip resistance standard trip [Ω] 0,11
Auslösezeit bei 5xIN [s] 0,5@8A

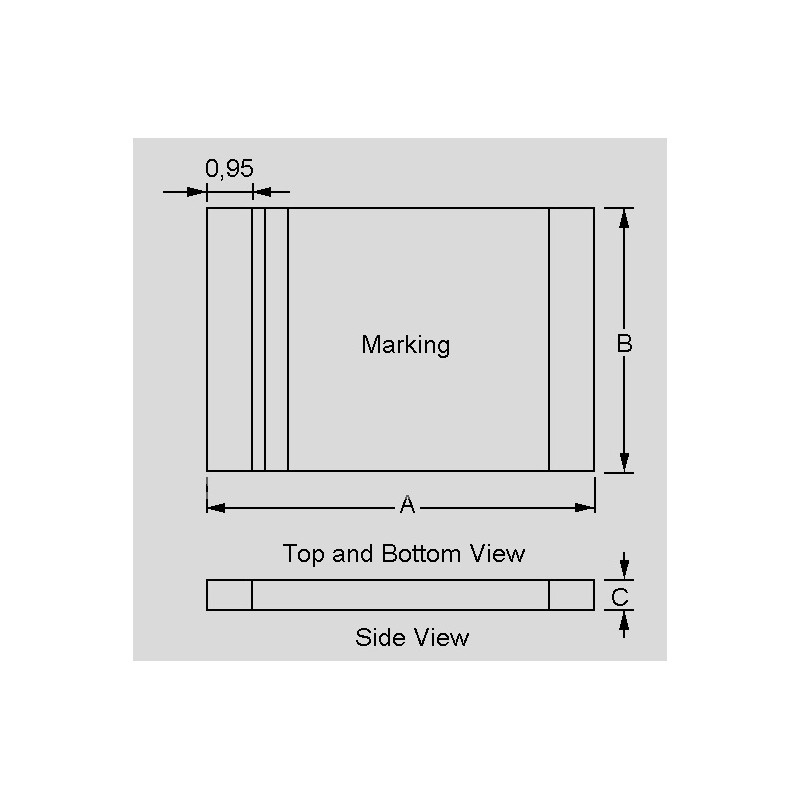

Amax. [mm] 4,37
Cmax. [mm] 1,1
Bmax. [mm] 3,41
Rated current [A] 1,5
Max. operating voltage [V] 12
Data Sheet

Unit price

0,08 €

Stock: 9

Minimum order quantity 1 to 9 units or multiples of 10 plus 0 to 9 .
