ERF SL 16V 2A

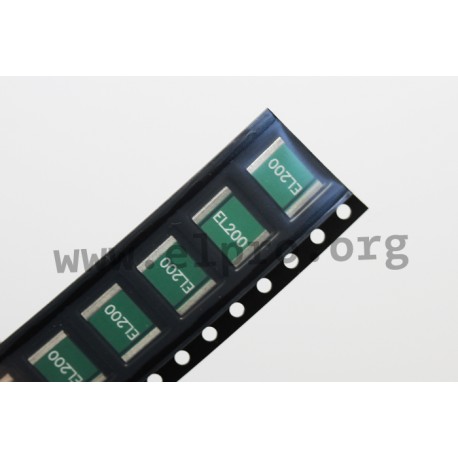

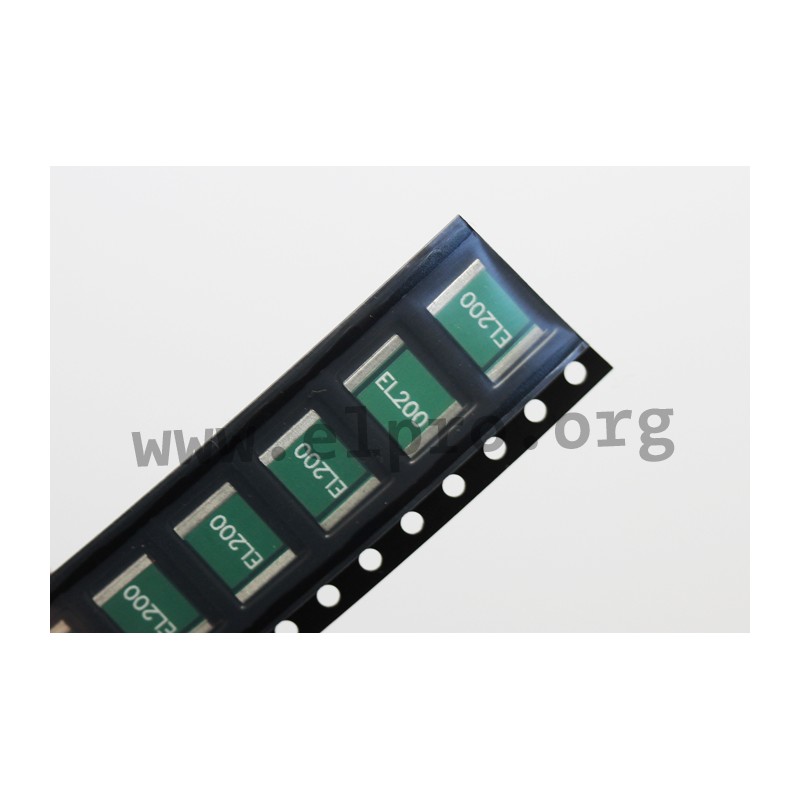

PTC-SMD-fuses ERFSL by ECE

• rated current: 0.3A to 3A
• housing: 2920 (7.8x5.44mm)
• style: taped
• rated current: 0.3 to 3A
• resettable switching device
• low current loss due to a low resistance in normal use
• protection against overcurrent and short circuit
• The mode of action is based on the PTC effect. In standard use, the resistance of the device is very low so that only a small power loss arises. In the event of an error, short-circuit or overcurrent, the resistance value of this device increases and protects the equipment. After eliminating the error and switching off the supply voltage, the device quickly returns to a low impedance state.
• Ideal for use in PC cards for computer telecom applications and general electronics
• terminal pad material: tin-plated copper
• power rating: 1.5W
• temperature range: up -40 to +85°C

ERF SL 16V 2A

ERF SL 16V 2A

46366 ERF SL 16V 2A ERFSL2001620Z ERFSL2001620Z PTC-SMD-fuses ERFSL by ECE. • rated current: 0.3A to 3A• housing: 2920 (7.8x5.44mm)• style: taped• rated current: 0.3 to 3A• resettable switching device• low current loss due to a low resistance in normal use• protection against overcurrent and short circuit• The mode of action is based on the PTC effect. In standard use, the resistance of the device is very low so that only a small power loss arises. In the event of an error, short-circuit or overcurrent, the resistance value of this device increases and protects the equipment. After eliminating the error and switching off the supply voltage, the device quickly returns to a low impedance state.• Ideal for use in PC cards for computer telecom applications and general electronics• terminal pad material: tin-plated copper• power rating: 1.5W• temperature range: up -40 to +85°C

Discontinued items. Only remainder of stock available.

Specifications

manufacturer
Manufacturer's name ERFSL2001620Z
Case 2920
1 hour post-trip resistance standard trip [Ω] 0,12
Auslösezeit bei 5xIN [s] 4,5@8A

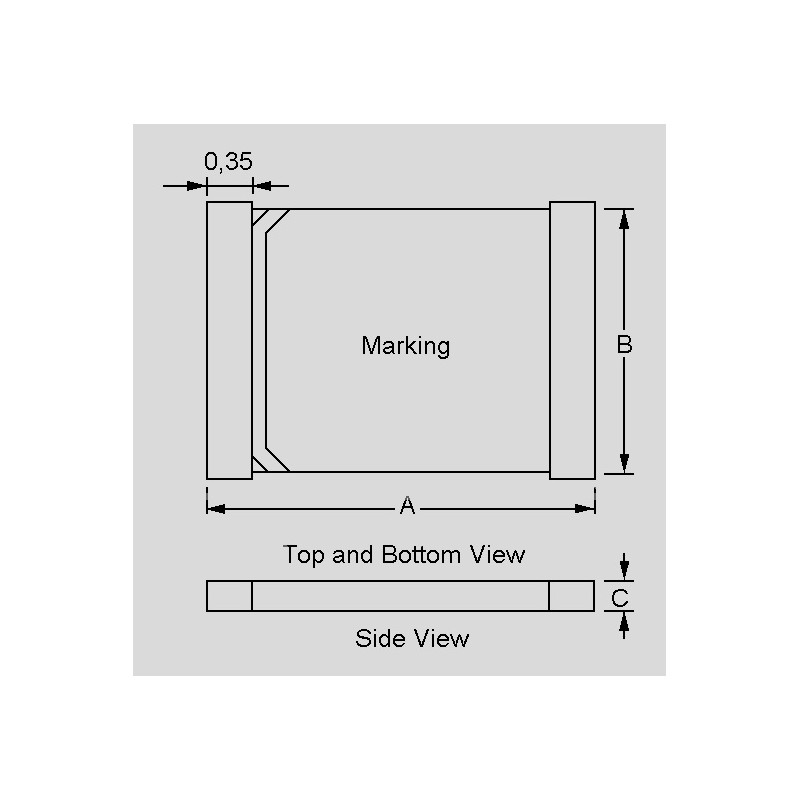

Amax. [mm] 7,98
Cmax. [mm] 0,9
Bmax. [mm] 5,44
Rated current [A] 2
Max. operating voltage [V] 16
Data Sheet

Unit price

0,10 €

Stock: 7
