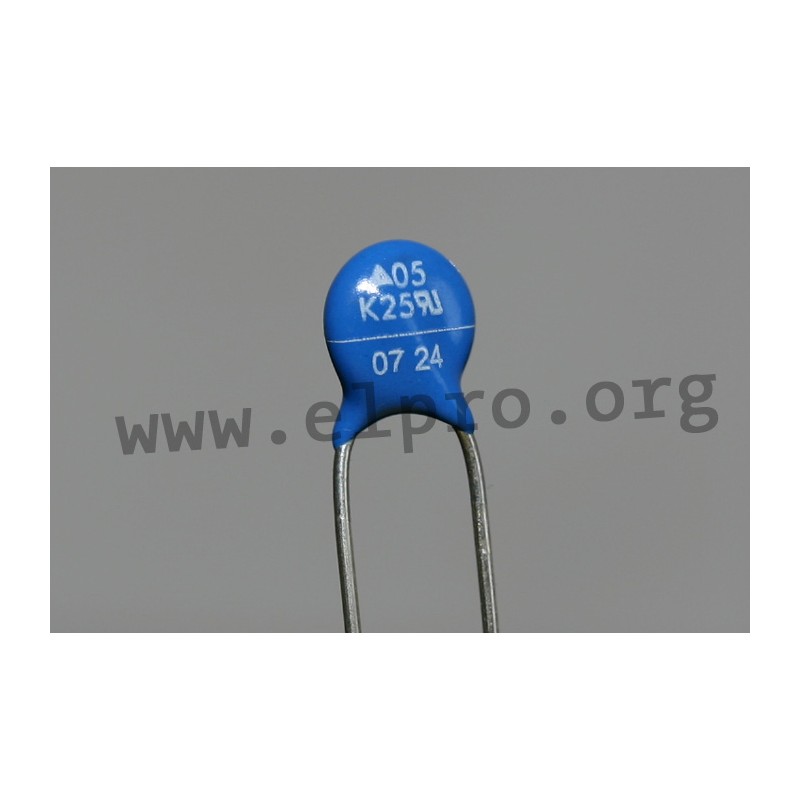

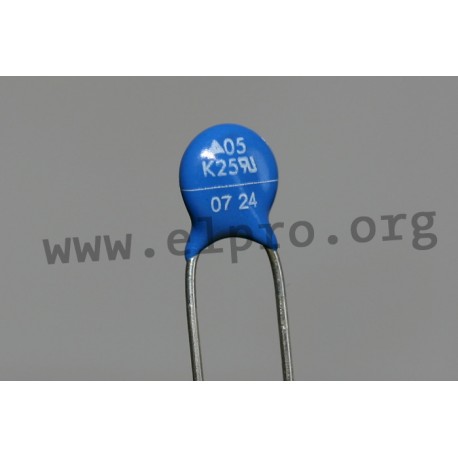

S 05 K 11

Epcos metal oxide varistor series SIOV

  • wired and round varistor elements
  • with an epoxy resin coating (UL94V-0)
  • operating temperature: -40 to +85°C
  • pitch: 5 resp. 7,5mm
  • bulk
S 05 K

S 05 K 11

45352 S 05 K 11 B72205S0110K101 B72205S0110K101 Epcos metal oxide varistor series SIOV. wired and round varistor elements with an epoxy resin coating (UL94V-0) operating temperature: -40 to +85°C pitch: 5 resp. 7,5mm bulk

Specifications

manufacturer
Manufacturer's name B72205S0110K101
Current [A] 100
A [mm] 1,2
(Max.) RMS voltage [V] 11
Operating voltage [V] 14
Varistor voltage at 1mA [V] 18
Supply voltage [V] 36
E [mm] 5
Tolerance of varistor voltage [%] ±10
Capacity [pF] 1750
Material strength [mm] 3,3
B [mm] 7
L1 [mm] 25
H [mm] 8,5
D [mm] 0,617
Data Sheet

Unit price

0,073 €

Stock: 774
Next incoming goods:
CW 33/2024
350 units

Further delivery:
CW 36/2024

Minimum order quantity 1 to 24 units or multiples of 25 plus 0 to 24 .
