S 20 K 420

Epcos metal oxide varistor series SIOV

  • wired and round varistor elements
  • with an epoxy resin coating (UL94V-0)
  • operating temperature: -40 to +85°C
  • pitch: 5 resp. 7,5mm
  • bulk
S 20 K

S 20 K 420

45355 S 20 K 420 B72220S0421K101 B72220S0421K101 Epcos metal oxide varistor series SIOV. wired and round varistor elements with an epoxy resin coating (UL94V-0) operating temperature: -40 to +85°C pitch: 5 resp. 7,5mm bulk

Specifications

manufacturer
Manufacturer's name B72220S0421K101
Current [A] 8000
A [mm] 3,1
(Max.) RMS voltage [V] 420
Operating voltage [V] 560
Varistor voltage at 1mA [V] 680
Supply voltage [V] 1120

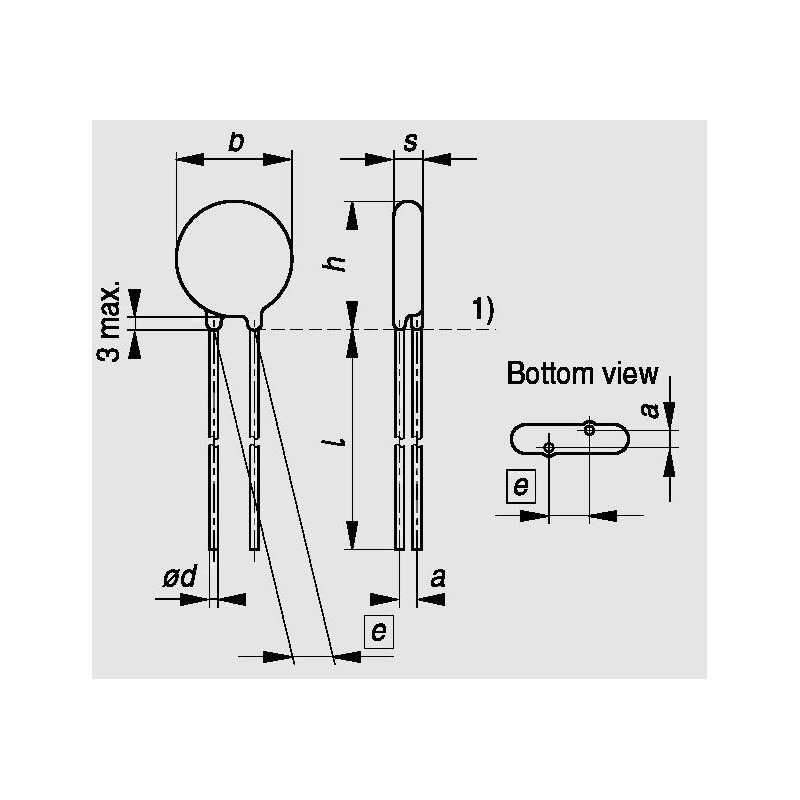

E [mm] 10
Tolerance of varistor voltage [%] ±10
Capacity [pF] 420
Material strength [mm] 6,5
B [mm] 21,5
L1 [mm] 25
H [mm] 26
D [mm] 1
Data Sheet

Unit price

0,321 €

Stock: 3525
Further delivery:
CW 21/2024

Minimum order quantity 25 units or
multiples of 25.
