> Passive elements>NTCs/PTCs/varistors>Varistors>Epcos metal oxide varistors, pitch 5/7,5mm, SIOV series>S 05 K 25

Manufacturers

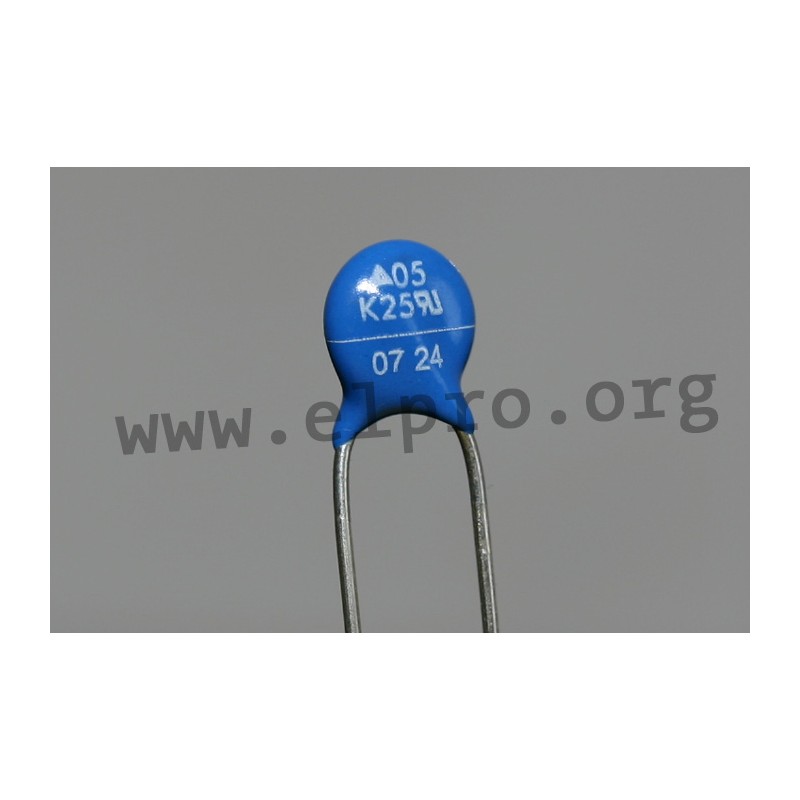

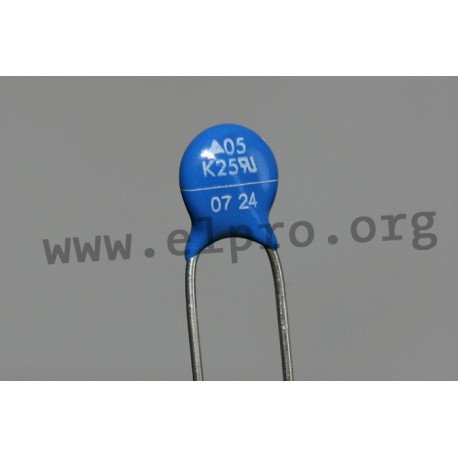

S 05 K 25

Epcos metal oxide varistor series SIOV

  • wired and round varistor elements
  • with an epoxy resin coating (UL94V-0)
  • operating temperature: -40 to +85°C
  • pitch: 5 resp. 7,5mm
  • bulk
S 05 K 25

S 05 K 25

5649 S 05 K 25 B72205S0250K101 B72205S0250K101 Epcos metal oxide varistor series SIOV. wired and round varistor elements with an epoxy resin coating (UL94V-0) operating temperature: -40 to +85°C pitch: 5 resp. 7,5mm bulk

Specifications

manufacturer
Manufacturer's name B72205S0250K101
E [mm] 5mm
Current [A] 100
A [mm] 1,3
(Max.) RMS voltage [V] 25
Operating voltage [V] 31
Varistor voltage at 1mA [V] 39
Supply voltage [V] 77
Tolerance of varistor voltage [%] ±10
E [mm] 5
Capacity [pF] 850
Material strength [mm] 3,6
B [mm] 7
L1 [mm] 30
H [mm] 8,5
D [mm] 0,6
Data Sheet

Unit price

0,058 €

Stock: 1784
Next incoming goods:
CW 18/2024
2000 units

Further delivery:
CW 22/2024

Minimum order quantity 1 to 9 units or multiples of 25 plus 0 to 9 .
