> Passive elements>NTCs/PTCs/varistors>Varistors>Epcos metal oxide varistors, pitch 5/7,5mm, SIOV series>S 07 K 250

Manufacturers

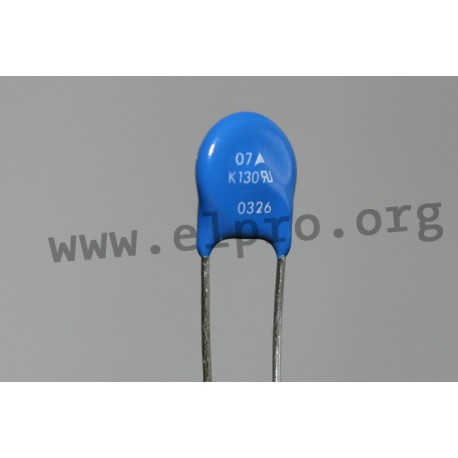

S 07 K 250

Epcos metal oxide varistor series SIOV

  • wired and round varistor elements
  • with an epoxy resin coating (UL94V-0)
  • operating temperature: -40 to +85°C
  • pitch: 5 resp. 7,5mm
  • bulk
S 07 K

S 07 K 250

5655 S 07 K 250 B72207S0251K101 B72207S0251K101 Epcos metal oxide varistor series SIOV. wired and round varistor elements with an epoxy resin coating (UL94V-0) operating temperature: -40 to +85°C pitch: 5 resp. 7,5mm bulk

Specifications

manufacturer
Manufacturer's name B72207S0251K101
E [mm] 5mm
Current [A] 1200
A [mm] 1,8
(Max.) RMS voltage [V] 250
Operating voltage [V] 320
Varistor voltage at 1mA [V] 390
Supply voltage [V] 650
E [mm] 5
Tolerance of varistor voltage [%] ±10
Capacity [pF] 105
Material strength [mm] 4,2
B [mm] 9
L1 [mm] 30
H [mm] 11
D [mm] 0,6
Data Sheet

Unit price

0,063 €

Stock: 10875
Further delivery:
CW 29/2024

Minimum order quantity 25 units or
multiples of 25.
