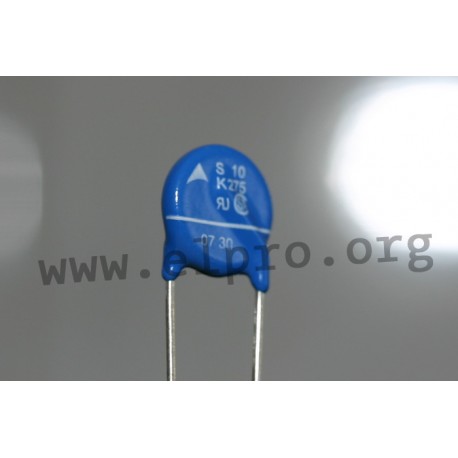

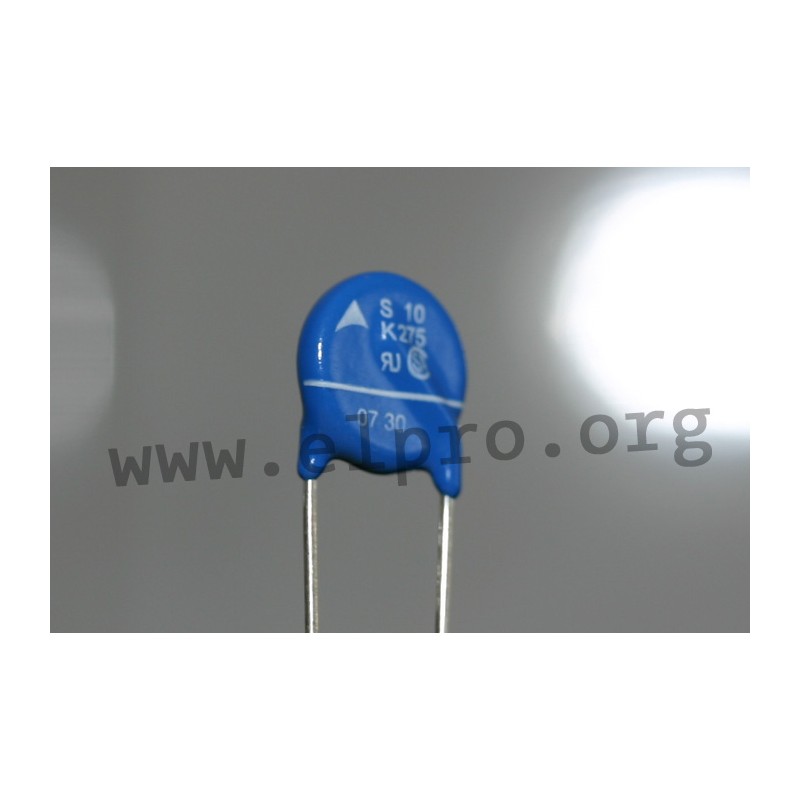

S 10 K 275

Epcos metal oxide varistor series SIOV

  • wired and round varistor elements
  • with an epoxy resin coating (UL94V-0)
  • operating temperature: -40 to +85°C
  • pitch: 5 resp. 7,5mm
  • bulk
S 10 K 275

S 10 K 275

5660 S 10 K 275 B72210S0271K101 B72210S0271K101 Epcos metal oxide varistor series SIOV. wired and round varistor elements with an epoxy resin coating (UL94V-0) operating temperature: -40 to +85°C pitch: 5 resp. 7,5mm bulk

Specifications

manufacturer
Manufacturer's name B72210S0271K101
E [mm] 7,5mm
Current [A] 2500
A [mm] 2,2
(Max.) RMS voltage [V] 275
Operating voltage [V] 350
Varistor voltage at 1mA [V] 430
Supply voltage [V] 710
Tolerance of varistor voltage [%] ±10
E [mm] 7,5
Capacity [pF] 195
Material strength [mm] 5
B [mm] 12
L1 [mm] 30
H [mm] 14,5
D [mm] 0,8
Data Sheet

Unit price

0,075 €

Stock: 12975
Further delivery:
CW 37/2024

Minimum order quantity 25 units or
multiples of 25.
