S 14 K 275

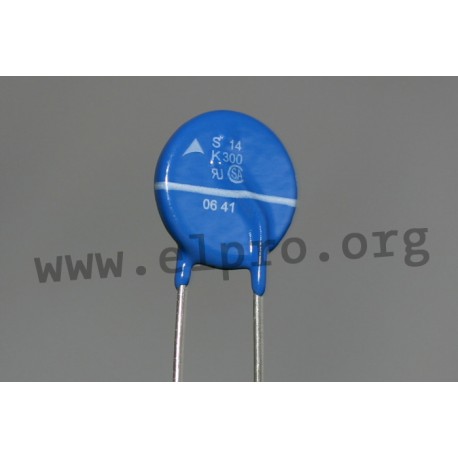

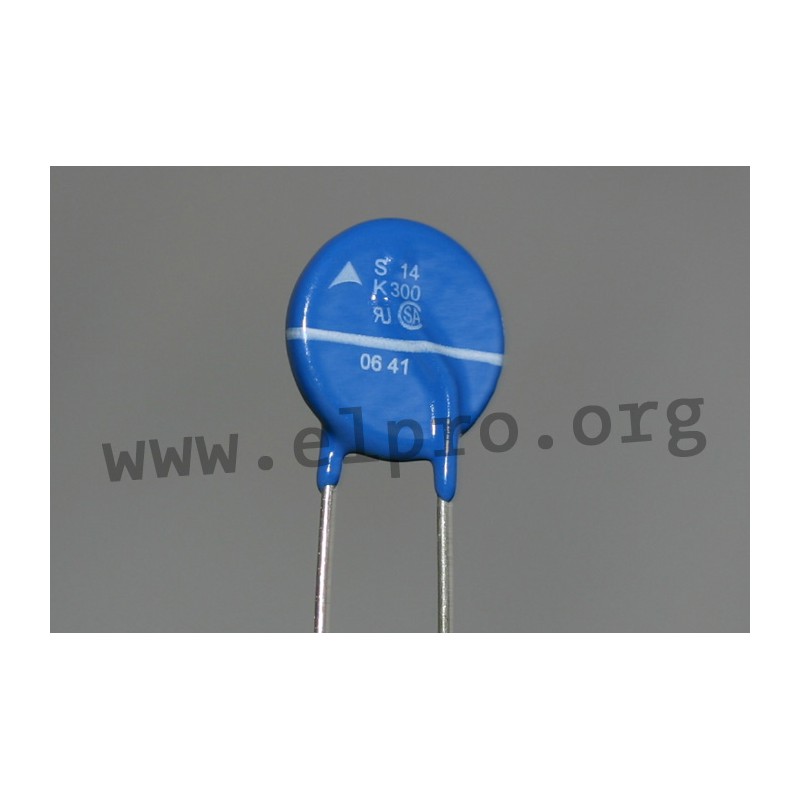

Epcos metal oxide varistor series SIOV

  • wired and round varistor elements
  • with an epoxy resin coating (UL94V-0)
  • operating temperature: -40 to +85°C
  • pitch: 5 resp. 7,5mm
  • bulk
S 14 K

S 14 K 275

5665 S 14 K 275 B72214S0271K101 B72214S0271K101 Epcos metal oxide varistor series SIOV. wired and round varistor elements with an epoxy resin coating (UL94V-0) operating temperature: -40 to +85°C pitch: 5 resp. 7,5mm bulk

Specifications

manufacturer
Manufacturer's name B72214S0271K101
E [mm] 7,5mm
Current [A] 4500
A [mm] 2,2
(Max.) RMS voltage [V] 275
Operating voltage [V] 350
Varistor voltage at 1mA [V] 430
Supply voltage [V] 710
E [mm] 7,5
Tolerance of varistor voltage [%] ±10
Capacity [pF] 320
Material strength [mm] 5
B [mm] 15,2
L1 [mm] 30
H [mm] 18,5
D [mm] 0,8
Data Sheet

Unit price

0,097 €

Stock: 17450
Next incoming goods:
CW 03/2026
10000 units

Further delivery:
CW 18/2026

Minimum order quantity 25 units or
multiples of 25.
