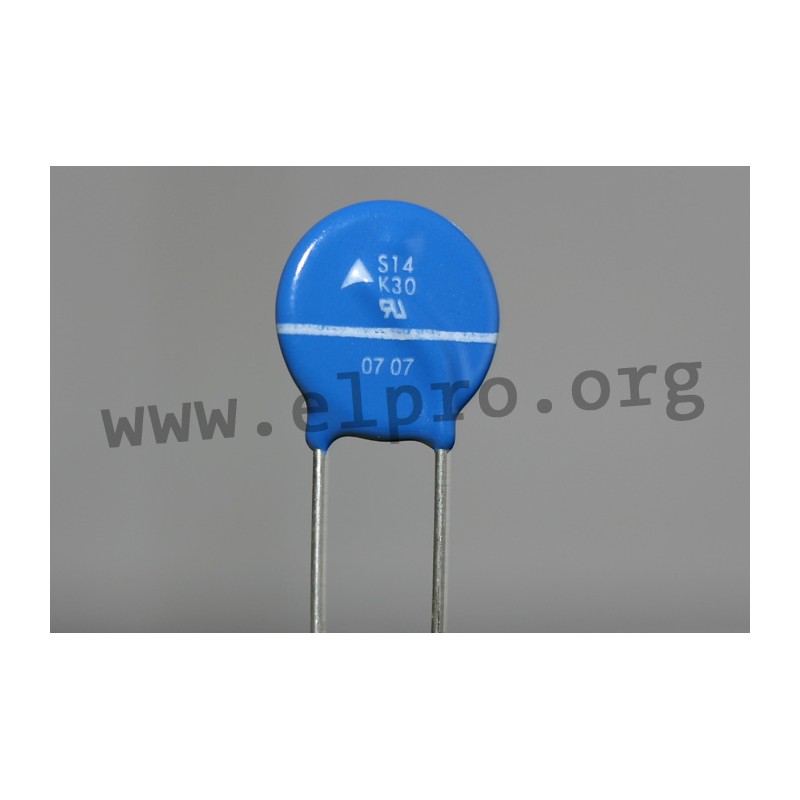

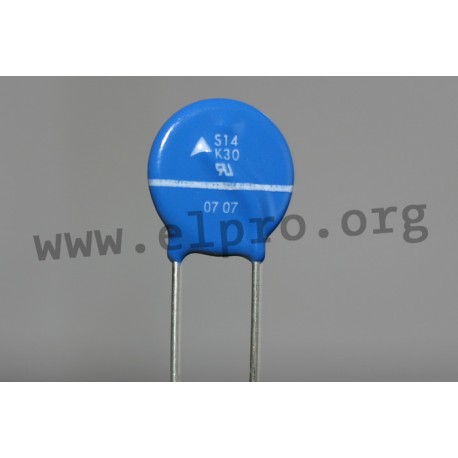

S 14 K 30

Epcos metal oxide varistor series SIOV

  • wired and round varistor elements
  • with an epoxy resin coating (UL94V-0)
  • operating temperature: -40 to +85°C
  • pitch: 5 resp. 7,5mm
  • bulk
S 14 K 30

S 14 K 30

5666 S 14 K 30 B72214S0300K101 B72214S0300K101 Epcos metal oxide varistor series SIOV. wired and round varistor elements with an epoxy resin coating (UL94V-0) operating temperature: -40 to +85°C pitch: 5 resp. 7,5mm bulk

Discontinued items. Only remainder of stock available.

Specifications

Manufacturer's name B72214S0300K101
E [mm] 7,5mm
Current [A] 1000
A [mm] 1,8
(Max.) RMS voltage [V] 30
Operating voltage [V] 38
Varistor voltage at 1mA [V] 47
Supply voltage [V] 93
Tolerance of varistor voltage [%] ±10
E [mm] 7,5
Capacity [pF] 4950
Material strength [mm] 4,4
B [mm] 15,5
L1 [mm] 30
H [mm] 18,5
D [mm] 0,8
Data Sheet

Unit price

0,15 €

Stock: 7
