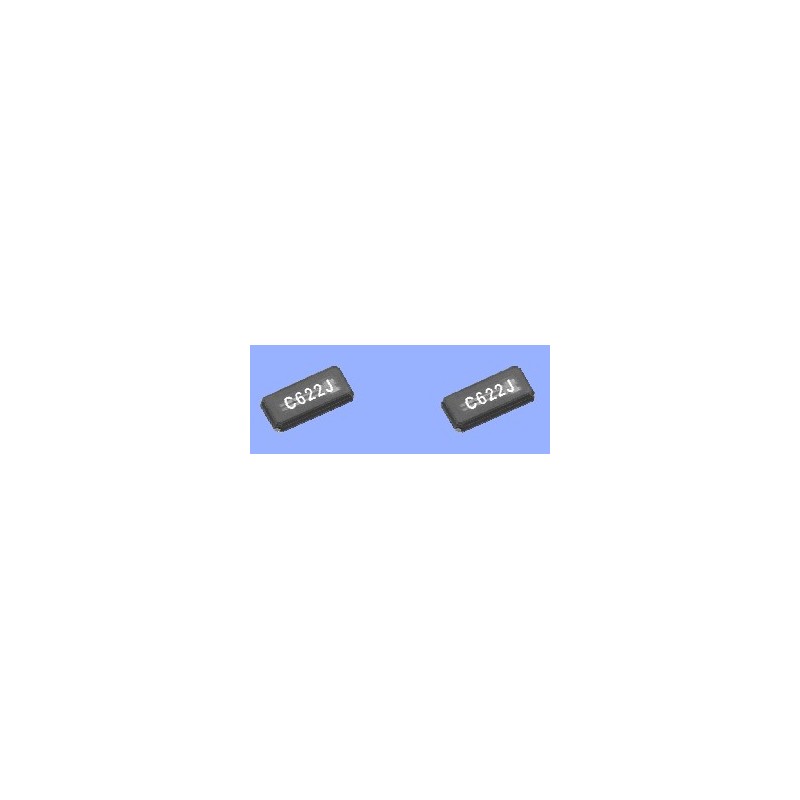

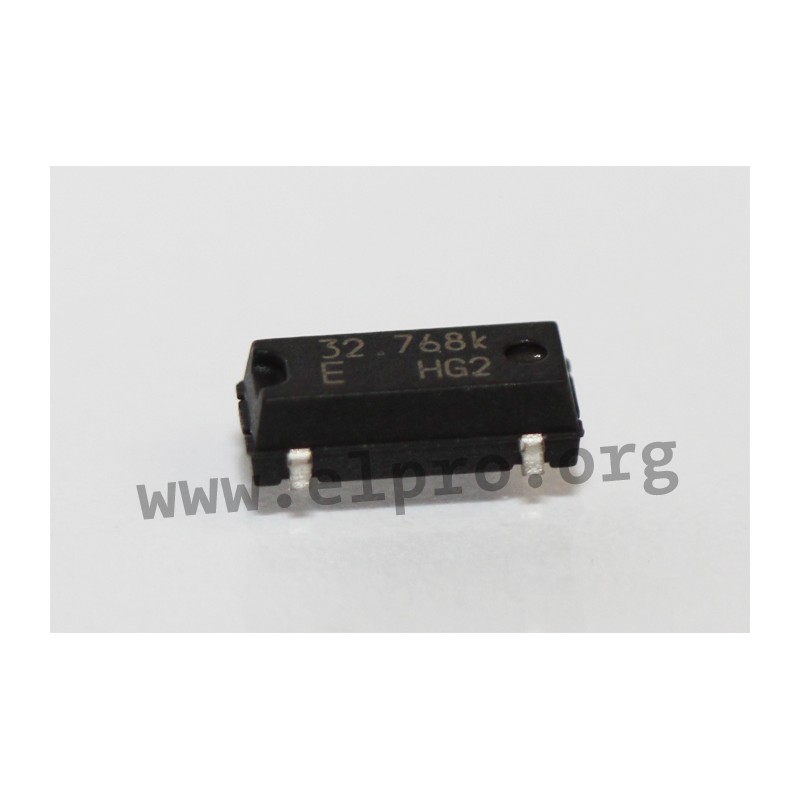

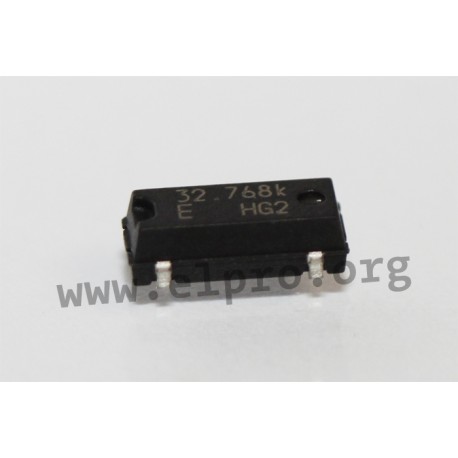

Epson clock quartz crystal series FC-135/MC-146/FC-12M/MC-306

  • surface mount clock quartz crystals with a frequency of 32,768kHz
  • maximal frequency aging: ±3ppm/year
  • maximal level of drive: 0,5µW
  • operating temperature: -40 to +85°C

Q13FC1350000212

130755 Q13FC1350000212 Q13FC1350000212 Epson clock quartz crystal series FC-135/MC-146/FC-12M/MC-306. surface mount clock quartz crystals with a frequency of 32,768kHz maximal frequency aging: ±3ppm/year maximal level of drive: 0,5µW operating temperature: -40 to +85°C

Specifications

manufacturer
Manufacturer's name Q13FC1350000212
Data Sheet

Unit price

0,42 €

Stock: 950
Further delivery:
CW 30/2024

Minimum order quantity 10 units or
multiples of 10.
