7 rot 1x10 A

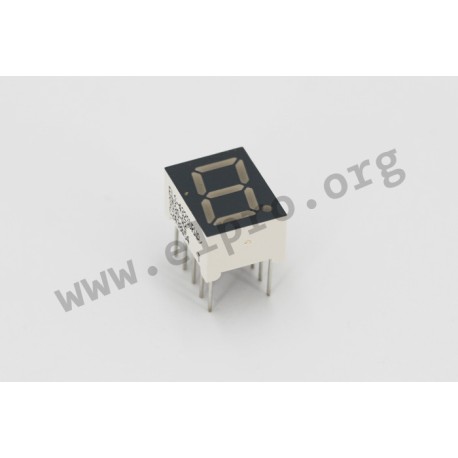

Everlight LED display series S43

  • 7-segment LED displays
  • 1 digit
  • with a digit height of 10mm
  • common anode (7_ 1x10 A) resp. cathode (7_ 1x10 K)

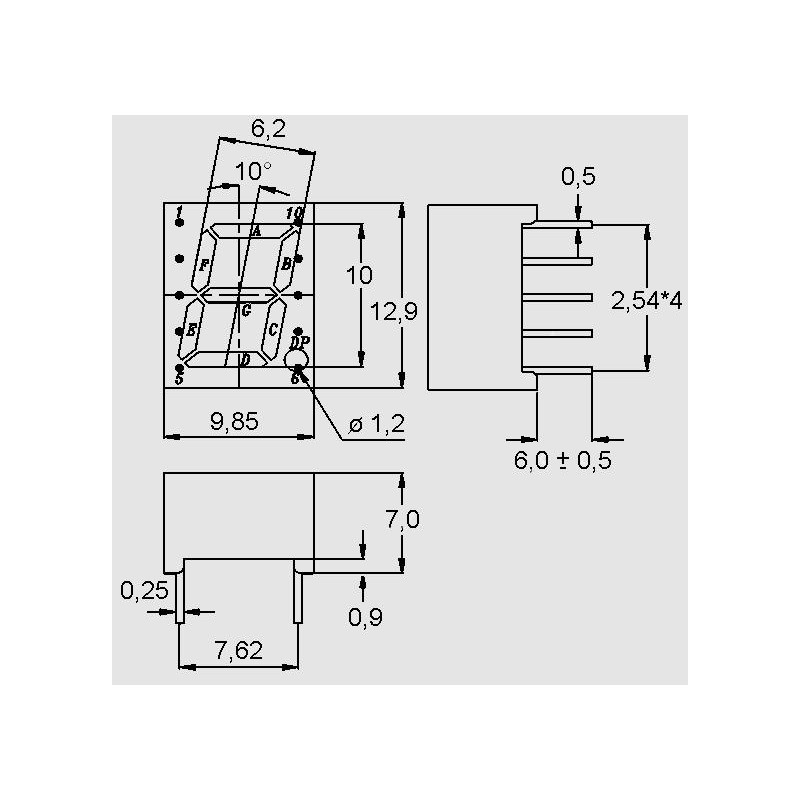

  • dimensions: 12,9x9,85mm

7 rot 1x10 A

28703 7 rot 1x10 A S432SURWA/S530-A2 S432SURWA/S530-A2 Everlight LED display series S43. 7-segment LED displays 1 digit with a digit height of 10mm common anode (7_ 1x10 A) resp. cathode (7_ 1x10 K) dimensions: 12,9x9,85mm

Specifications

manufacturer
Manufacturer's name S432SURWA/S530-A2
Colour red
Digit height [mm] 10mm
Number of digits 1 digit
Forward current [mA] 2
Wavelength [nm] 632
Luminous intensity [µcd] 2,9
Data Sheet

Unit price

0,368 €

Stock: 3600

Minimum order quantity 1 to 9 units or multiples of 19 plus 0 to 9 .
