7 grün 1x20,4 A

Everlight LED display series S815 and S816

  • 7-segment LED displays
  • with a digit height of 20,4mm
  • 1 digit
  • common anode (7_ 1x20,4 A) resp. cathode (S815SURWA/S530-A3)

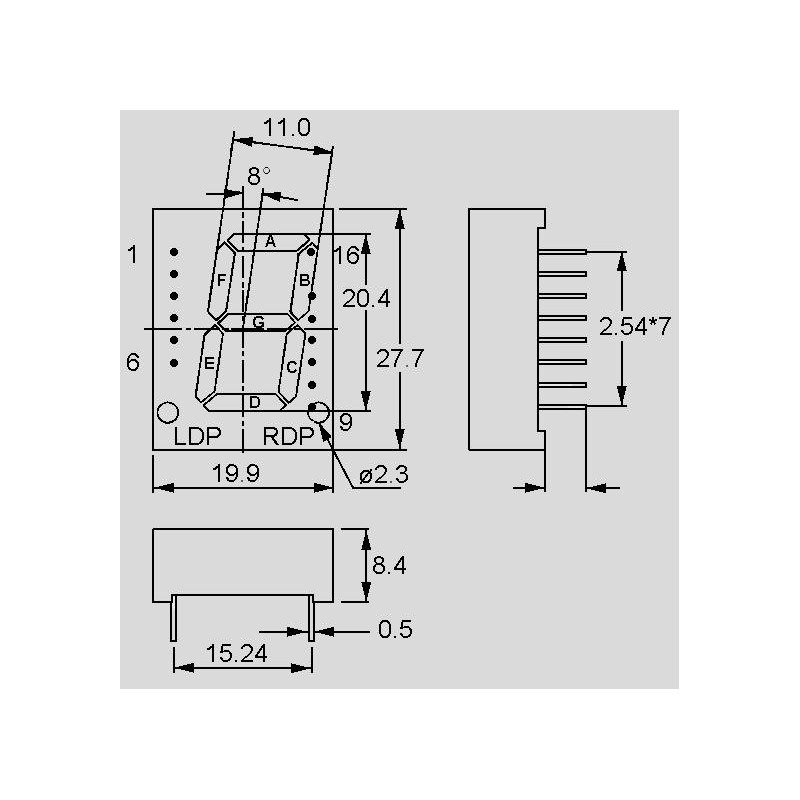

  • dimensions: 27,7x19,9mm

7 grün 1x20,4 A

28693 7 grün 1x20,4 A S816SYGWA/S530-E2 S816SYGWA/S530-E2 Everlight LED display series S815 and S816. 7-segment LED displays  with a digit height of 20,4mm 1 digit common anode (7_ 1x20,4 A) resp. cathode (S815SURWA/S530-A3) dimensions: 27,7x19,9mm

Specifications

manufacturer
Manufacturer's name S816SYGWA/S530-E2
Colour green
Digit height [mm] 20,4mm
Number of digits 1 digit
Forward current [mA] 10
Wavelength [nm] 575
Luminous intensity [µcd] 8,9
Data Sheet

Unit price

0,423 €

Stock: 888
Further delivery:
CW 43/2024

Minimum order quantity 1 to 6 units or multiples of 18 plus 0 to 6 .
