2631665702

closed ferrite rings by Fair-Rite

* for round cables Ø 4.75 to 25.4mm (size B)
* ferrite material 31
* for suppression of conducted interference 1...300MHz
* by Fair-Rite

material 31:
* initial permeability @B<10gauss: 1500µ
* flux density: 3400 gauss
* @field strength: 5 oersted
* residual flux density: 2500 gauss
* coercive force: 0.35 oersted
* loss factor @0.1MHz: 20x10-6 tan d/µ
* temperature coefficient of initial permeability: 1,6%/°C
* curie temperature: >130°C
* resistivity: 3x103Ω cm

2631665702

2631665702

39669 2631665702 2631665702 closed ferrite rings by Fair-Rite. * for round cables Ø 4.75 to 25.4mm (size B)* ferrite material 31* for suppression of conducted interference 1...300MHz* by Fair-Ritematerial 31:* initial permeability @B&lt;10gauss: 1500µ* flux density: 3400 gauss* @field strength: 5 oersted* residual flux density: 2500 gauss* coercive force: 0.35 oersted* loss factor @0.1MHz: 20x10-6 tan d/µ* temperature coefficient of initial permeability: 1,6%/°C* curie temperature: &gt;130°C* resistivity: 3x103Ω cm

Specifications

manufacturer
Manufacturer's name 2631665702

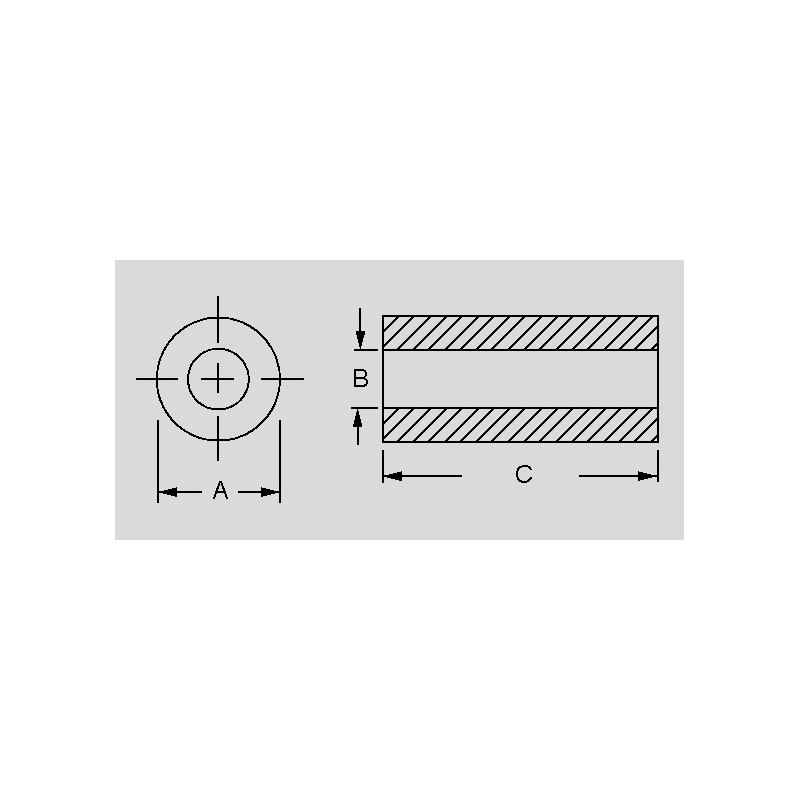

A [mm] 17,45
Width [mm] 9,5
C [mm] 28,6
Data Sheet

Unit price

1,46 €

Stock: 107
Further delivery:
CW 23/2024

Minimum order quantity 8 units or
multiples of 8.
