FTR-E1JA024Y-MF

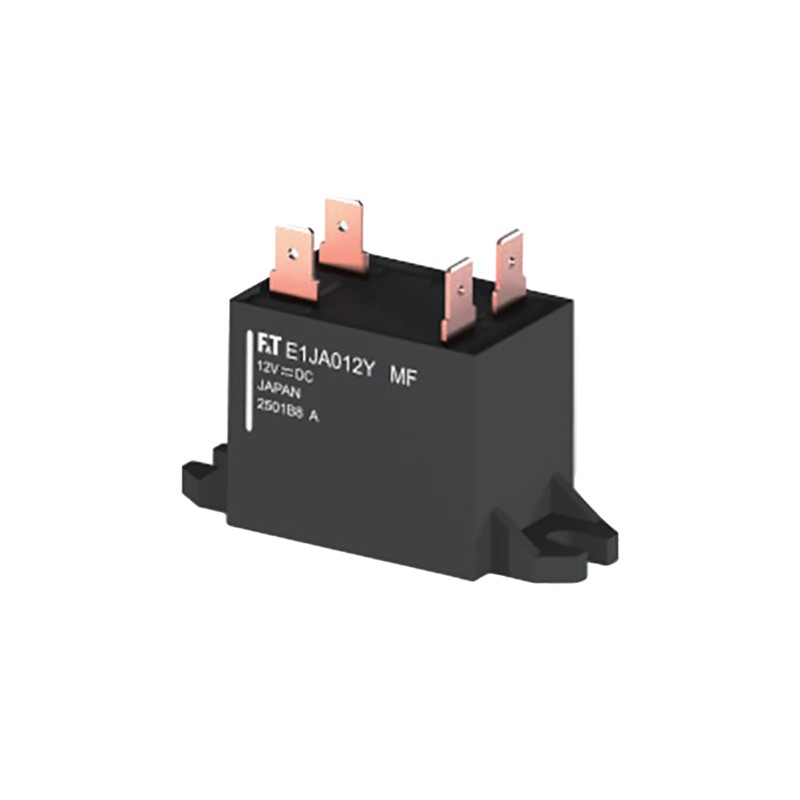

FCL Components printrelays series FTR-E1J

These printrelays with 20A/800V DC have a high voltage Dc load switch, and a non polar contact, which can be switched on and off for loading-/unloading cycle. They are made of sealed plastic, and have a low power consumption (0.9W at coil rated voltage). We offer the following types of this FCL Components series: FTR-E1JA012Y-MF and FTR-E1JA024Y-MF.

  • contact: SPST-NO
  • nominal switching current: 20A
  • nominal switching voltage: 800V DC
  • operating temperature: -40 to +85°C
  • housing: 28,3x43,6x36,1mm
  • weight: 85g

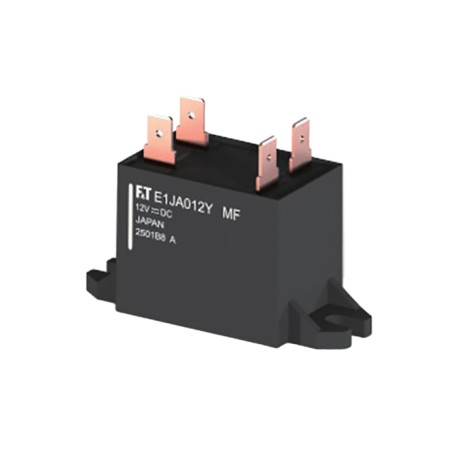

FTR-E1JA024Y-MF, FCL Components printrelays, 20A, SPST-NO, FTR-E1J series

FTR-E1JA024Y-MF

256512 FTR-E1JA024Y-MF FTR-E1JA024Y-MF FCL Components printrelays series FTR-E1J. These printrelays with 20A/800V DC have a high voltage Dc load switch, and a non polar contact, which can be switched on and off for loading-/unloading cycle. They are made of sealed plastic, and have a low power consumption (0.9W at coil rated voltage). We offer the following types of this FCL Components series: FTR-E1JA012Y-MF and FTR-E1JA024Y-MF. contact: SPST-NO nominal switching current: 20A nominal switching voltage: 800V DC operating temperature: -40 to +85°C housing: 28,3x43,6x36,1mm weight: 85g

Specifications

manufacturer
Manufacturer's name FTR-E1JA024Y-MF
Nominal voltage [V DC] 24
Coil resistance [Ω] 640
Nominal capacity [mW] 900
Data Sheet

Unit price

20,49 €

Stock: 0
Further delivery:
CW 37/2026

Minimum order quantity 100 units or
multiples of 100.
